12.1-Inch High-Brightness Optical Bonded Touch Panel PC (STD121TPCOBOD): What Buyers Must Verify Before Ordering
12.1" High-Brightness Optical Bonded Touch Panel PC (STD121TPCOBOD): What Buyers Must Verify Before Ordering
Direct Answer
For the 12.1" High-Brightness Optical Bonded Touch Panel PC (Model STD121TPCOBOD), verify these confirmed specs: 1280 x 800 resolution, 1000 nits brightness, capacitive touch with optical bonding, IP65 sealed front panel, and 0 C to 50 C operating temperature. IP66/IP69K, certifications, and other customizations are available on request and must be confirmed per project.

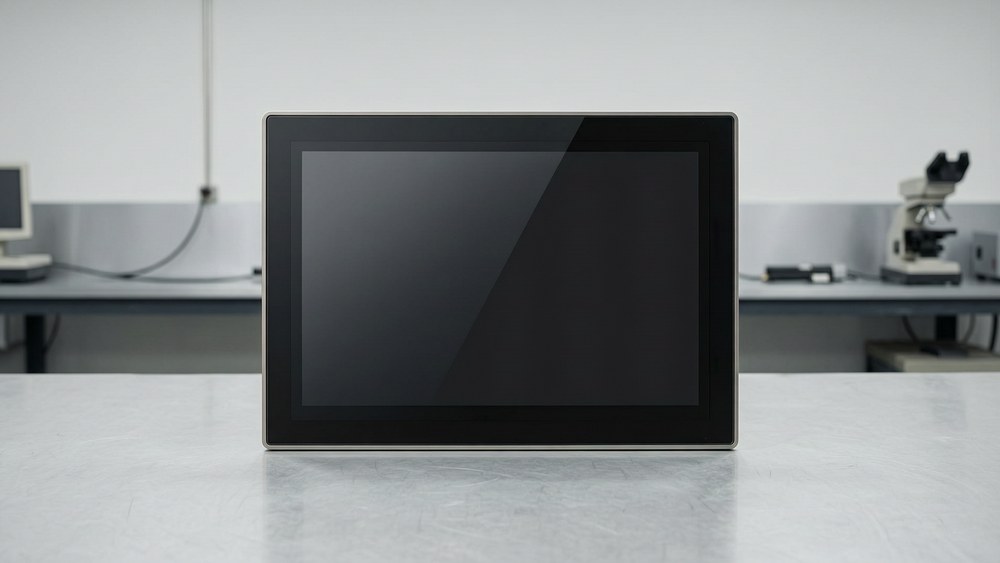

What Display Specifications Are Confirmed for the STD121TPCOBOD?
The STD121TPCOBOD uses a 12-inch TFT LCD panel with 1280 x 800 resolution and a 16:10 aspect ratio. Brightness is rated at 1000 nits, which supports daylight readability in outdoor charging station environments. The contrast ratio is 1000:1, and the viewing angle is 178 degrees. Response time is 25 ms, and pixel pitch is 0.204 mm. Panel life is rated at 50000 hours. Backlight life is rated at >= 30,000 hours (company-confirmed).
What Touch and Optical Bonding Details Should Buyers Confirm?
The STD121TPCOBOD uses capacitive touch technology with optical bonding. Optical bonding is available and reduces reflection while improving sunlight readability. Surface hardness is 7H, and transmittance is >= 85%. These are company-confirmed specifications for this model.
How Durable Is the STD121TPCOBOD for Outdoor Charging Stations?
The operating temperature range is 0 C to 50 C. Storage temperature is -20~60 °C. Humidity tolerance is 10~90% RH, non-condensing. The standard IP rating is IP65 for the sealed front panel; IP66/IP69K is available on request. The enclosure material is aluminum alloy. These specifications are company-confirmed for the STD121TPCOBOD.

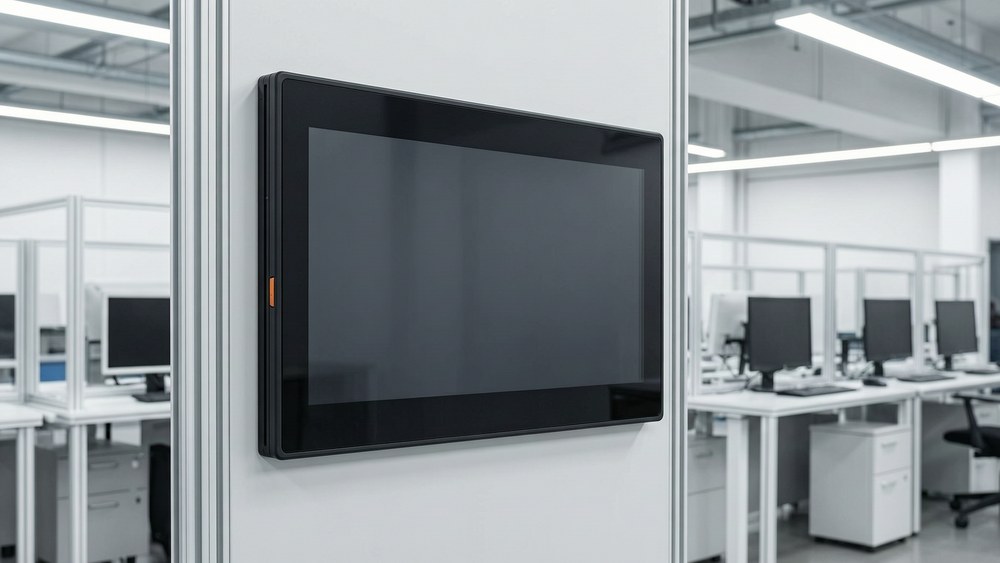

What Power and Installation Specs Are Confirmed?
Power input is via DC power terminal block. Power consumption is 30 W. Installation method is panel mount or embedded. Overall dimensions are 297 x 199 x 60 mm. These are company-confirmed specifications for the STD121TPCOBOD.
Which Customization Options Are Confirmed as Available?
IP66/IP69K is available on request. OEM/ODM services are offered. Certifications are available upon request. RoHS / REACH compliant materials; certifications and test reports can be provided per order or per project. Other customizations beyond these confirmed options require verification with the supplier.
What Order and Support Details Are Confirmed?
MOQ is 1 pc for sample evaluation; volume orders are quoted per project. Lead time is 7-15 days for standard configurations and about 25 days for customized orders, subject to project scope. Warranty is 12 months. OS support includes Windows 7/10/11, Linux, and Android for panel PC models. Packaging is export carton with protective foam; wooden case for bulk shipments. Country of origin is China.
Comparison Table: Standard vs. Available-on-Request Specifications
| Specification | Standard (Confirmed) | Available on Request | Buyer Action |
|---|---|---|---|
| IP Rating | IP65 (sealed front panel) | IP66 / IP69K | Confirm target IP rating and test method with supplier |
| Certifications | Not stated as obtained | Available upon request | Request certificates and test reports per order |
| Optical Bonding | Available | — | Confirm bonding process and transmittance for your batch |
| Operating Temperature | 0 C to 50 C | — | Verify against your site's climate profile |
| Customization | OEM/ODM services | Other customizations | Verify feasibility, MOQ, and lead time per project |
Verify-Before-Ordering Checklist
- Does the STD121TPCOBOD's 1000-nit brightness meet your outdoor charging station's daylight readability requirement, and has the supplier confirmed this with a luminance test report?
- Is the IP65 sealed front panel sufficient for your installation, or do you need the IP66/IP69K option, and what is the lead time impact for that upgrade?
- Has the supplier confirmed that the 0 C to 50 C operating temperature range covers your site's lowest and highest ambient temperatures?
- Can the supplier provide RoHS / REACH compliant material declarations and any requested certifications or test reports for this specific order?
- What is the confirmed MOQ for your configuration, and does the 7-15 day standard lead time or ~25 day customized lead time apply?
- Does the 12-month warranty cover the optical bonding and touch layer under your intended use conditions?
- Are the 297 x 199 x 60 mm dimensions and panel mount / embedded installation compatible with your charging station enclosure?
- Which OS (Windows 7/10/11, Linux, or Android) will your panel PC configuration ship with, and has the supplier confirmed driver availability?
FAQ
Q: What brightness does the STD121TPCOBOD offer for outdoor charging stations? A: The STD121TPCOBOD is rated at 1000 nits, which is company-confirmed for this 12.1-inch model.
Q: Is IP66 or IP69K available for the 12.1-inch touch panel PC? A: IP65 is standard for the sealed front panel. IP66/IP69K is available on request and must be confirmed per project.
Q: Can the STD121TPCOBOD operate below 0 C at an outdoor charging site? A: The confirmed operating temperature range is 0 C to 50 C. Verify your site's minimum temperature with the supplier.
Q: What is the MOQ for the 12.1-inch optical bonded panel PC? A: MOQ is 1 pc for sample evaluation. Volume orders are quoted per project.
Q: Does the STD121TPCOBOD support Android for charging station kiosks? A: OS support includes Windows 7/10/11, Linux, and Android for panel PC models, company-confirmed.
Q: What warranty applies to the 12.1-inch high-brightness panel PC? A: Warranty is 12 months, company-confirmed for the STD121TPCOBOD.
