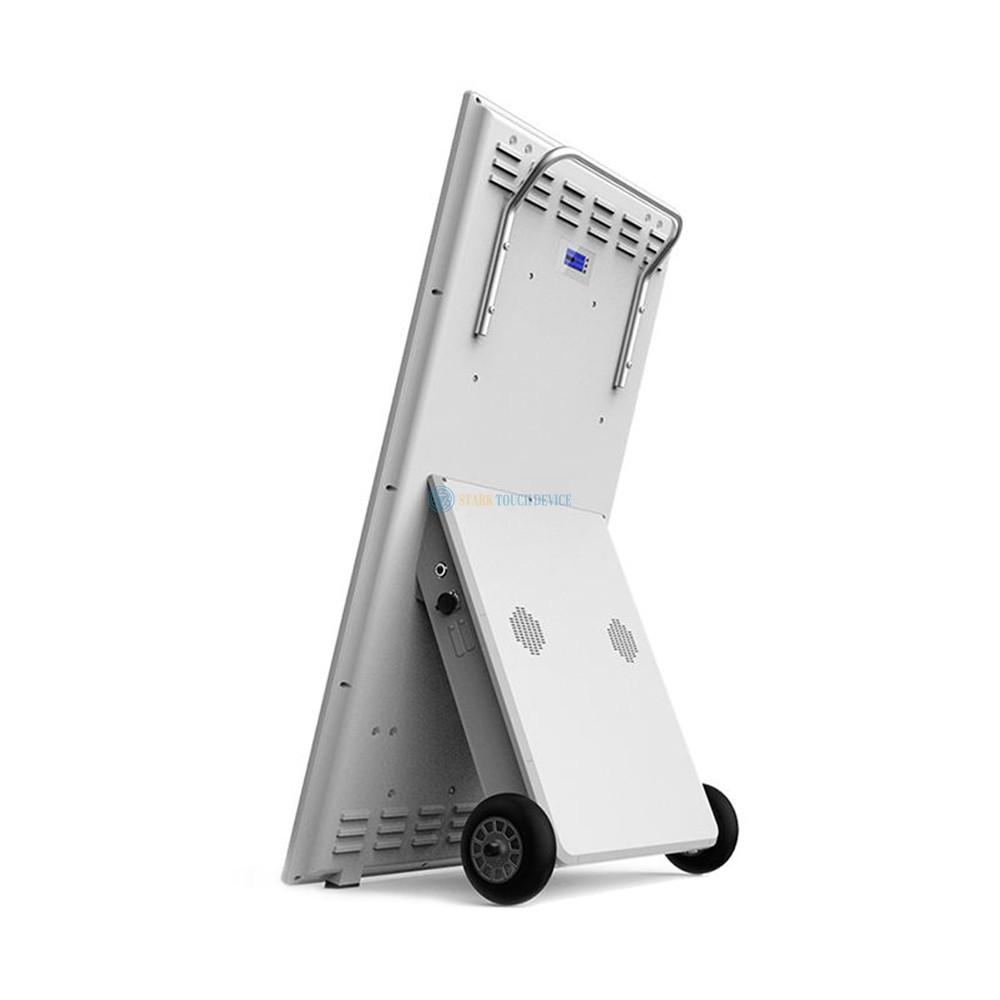

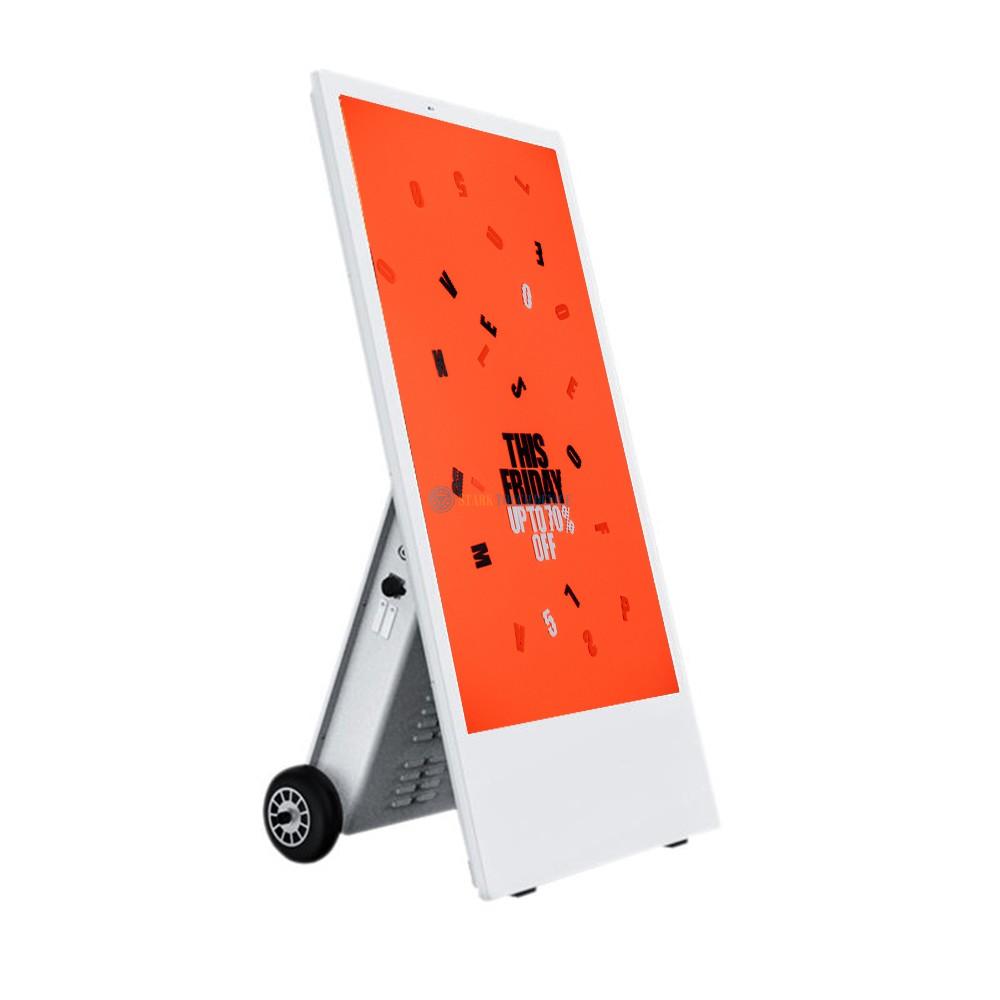

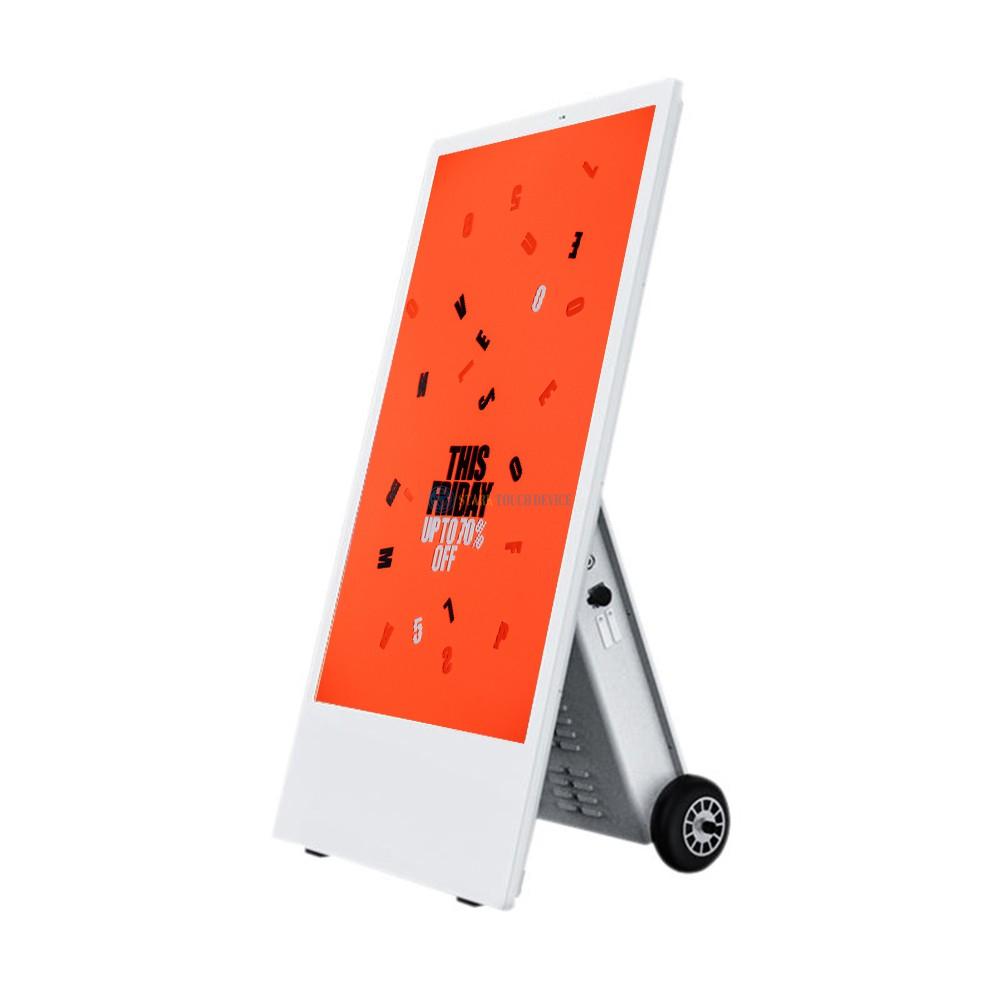

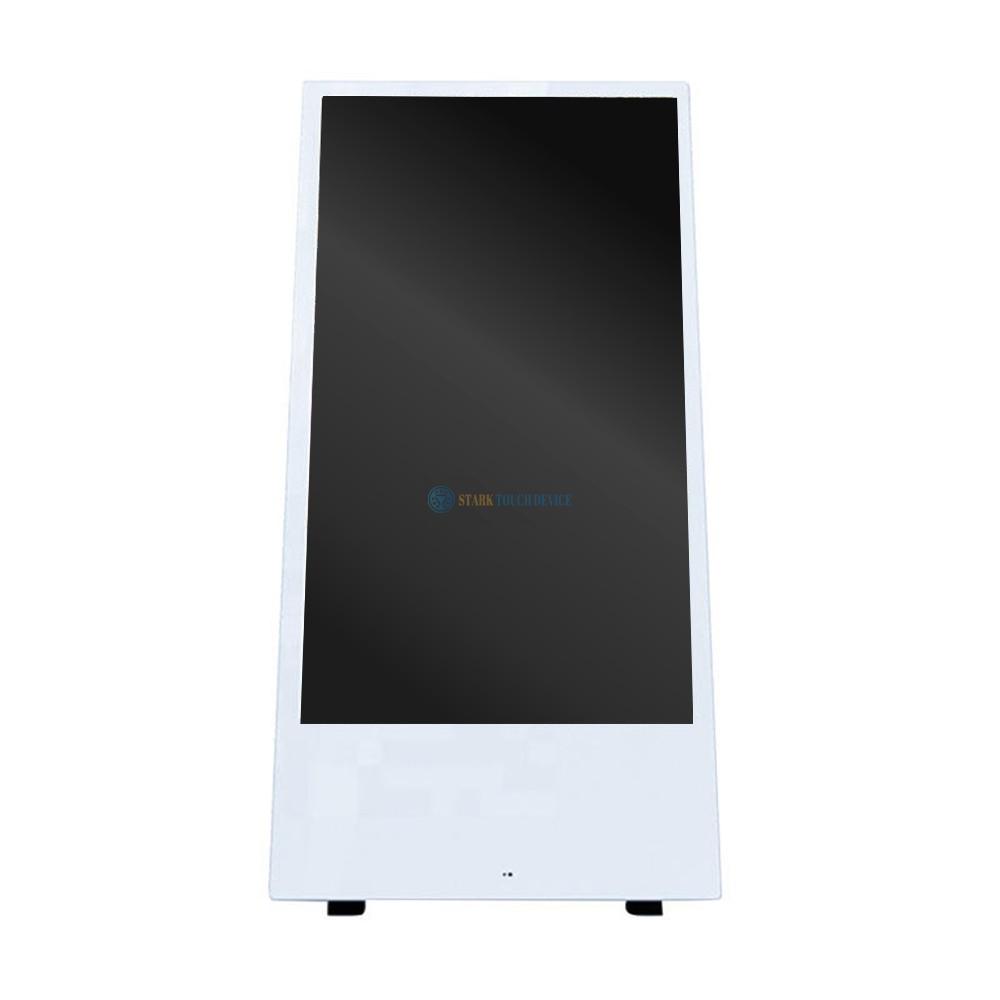

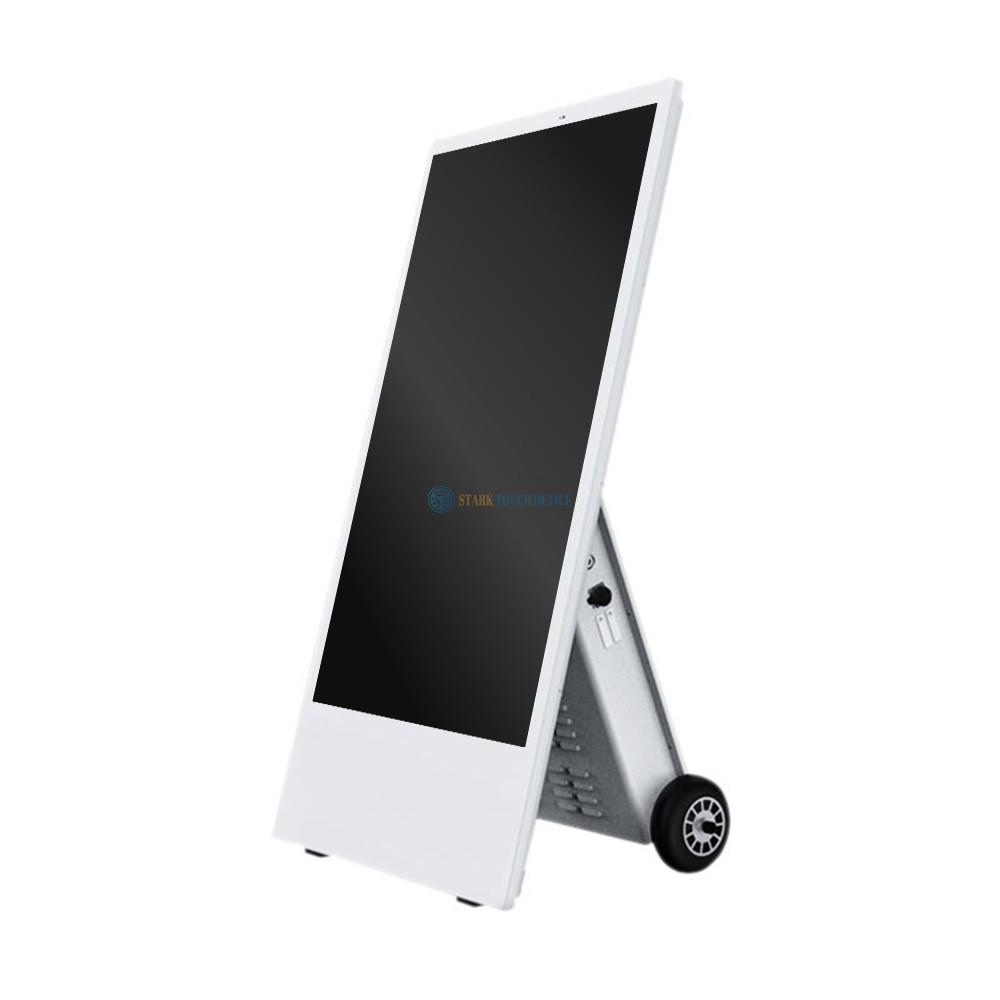

Movable IP65 Waterproof Outdoor Poster Display with HD Touchscreen

Type:LCD outdoor digital signage
Screen size:32inch 43inch 49inch 55inch
Screen type:Capacitive Touch screen
Customization:Customized logo(Min. order 2 pieces) Customized packaging(Min. order 2 pieces)
·Application:Outdoor
·Color:full color
·Panel Size:Customized
·Media Available:
·Digital Poster, Outdoor Portable Digital Poster, Caster…
·use:advertising publish, shopping mall, welcome display
·Function:SDK
·Specification:Digital Poster
·Response time:<5ms ·Multi touch:Capacitive tou

INQUIRY

Product Details

Product Tags

Quick answer

Movable IP65 Waterproof Outdoor Poster Display with HD Touchscreen — the published specification for this product is: Type: LCD outdoor digital signage; Screen size: 32inch 43inch 49inch 55inch; Screen type: Capacitive Touch screen; Customization: Customized logo(Min. order 2 pieces) Customized packaging(Min. order 2 pieces); Application: Outdoor; Color: full color; Panel Size: Customized; use: advertising publish, shopping mall, welcome display; Function: SDK; Specification: Digital Poster. Buyers should confirm the exact configuration (size, brightness, interface and mounting) against the installation environment before ordering.

Published specification at a glance

Type	Screen size	Screen type	Customization	Application	Color
LCD outdoor digital signage	32inch 43inch 49inch 55inch	Capacitive Touch screen	Customized logo(Min. order 2 pieces) Customized packaging(Min. order 2 pieces)	Outdoor	full color

Values above are taken from this product page.

What to verify before ordering

Confirm the exact model number and request its specification sheet.
Check the protection rating (IP) against the installation environment.
Confirm mounting method and enclosure compatibility.
Confirm the required interfaces and cable routing.
Confirm operating temperature range for the target market.
Confirm brightness (nits) against ambient light at the site.
Ask for sample, tooling and mass-production lead times.
Ask which certifications are available for the destination country.

Available models in this series

This product page covers one product type. The series is available in the following sizes and configurations (published specifications):

Model	Size	Resolution	Brightness	Touch	IP rating
STD55IP65HBTMOB	43 inch	—	High-Brightness	—	IP65

Product Features:

IP65 rainproof and dustproof structure design

The whole machine is designed with IP65 protection level, which can keep rainwater and debris, dust and other particles in the air out, and can be protected from any wet weather, which greatly expands the application environment.

Multi-touch, smooth Writing

Using the top projected capacitive touch screen, writing is smooth and smooth, wear-resistant and long-lasting.

1500 brightness IPS screen

The high-brightness LCD panel is three times brighter than a home TV, making it ideal for display in outdoor commercial spaces.

Remote release, plug and play

Online production of H5 advertisements through mobile terminals or PC terminals, and remote release of graphic information and other content. Or copy images and videos to a USB flash drive, plug it into a USB port, and wait for the content to be copied before use. Images and videos can be played in a continuous loop.

Battery Display

The remaining power can be clearly displayed, which is convenient for arranging the use and charging time of the battery.

Solid as a diamond, safe and worry-free

All-aluminum alloy frame, high-strength metal casing, and front tempered glass panel provide a solid backing and guarantee for the operating environment and service life of the machine.

long run time

The integrated polymer lithium battery has revolutionized the way digital signage is used, and the industrial-grade battery solution ensures 14 hours of uninterrupted operation of the display.

Panel Size	43” 49” 55”
Screen	Resolution	1920*1080 FHD
	Visible area	940.896(H)x 529.254(V)
	View angle	178°H/178°V
	Contrast	4000:1
	Touch screen	Multi-touch capacitive screen
	Color	16.7M
	brightness	1500 cd/m2
	Life(hrs)	>50,000(hrs)
Host	Multimedia format	Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image( JPG, GIF, BMP, PNG)
	Speaker	Built-in high quality stereo sepaker2×10W (8Ω)
	Storage	8G and it can be expanded to 32G
	CPU	Dual core RAM Cortex-A53+ Dual core RAM Cortex-A73 CPU, CPU Frequency: 1.55GHZ
	GPU	MALI-G51 MP2，support FULL HDR
	RAM	2GB DDR4 (Optional 3GB)
	ROM	8GB NAND(Optional 16GB)
	USB	USB2.0 HOST (x2)
	LAN	10/100M Ethernet
	Wi-Fi	802.1 1b/g/n
	Operation system	Android8.0
Working Environment	Working Temperature	-20°C~70°C (High temperature resistance up to 105℃)
Working Environment	Storage Temperature	-30°C~80°C
Battery	battery technology	Integrated polymer lithium battery
	charging time	7 hours
	Running time	14 hours
	battery capacity	43200mAh
	Voltage	25.2V
	Power	110W
	efficiency	1088.54Wh
	Certificates	CE, FCC, ROHS, CB, CCC, ISO9001, ISO140001

Portable Signage Display (1).jpg

Portable Signage Display (7).jpg

Portable Signage Display (8).jpg

Core FeaturesThis IP65-rated movable display delivers 800 nits brightness for clear visibility in direct sunlight. The anti-glare capacitive touchscreen responds accurately even with wet hands – perfect for outdoor retail promotions and event advertising. Durability Highlights - Reinforced aluminum frame withstands wind loads up to 60km/h - Wide temperature operation (-30°C to 50°C) for extreme climates - Chemical-resistant screen coating for industrial environments Deployment Scenarios ▶ Construction Site Safety: Display real-time hazard alerts at multiple zones ▶ Pop-up Stores: 36-hour battery supports mobile promotions ▶ Drive-thru Menus: Integrated VESA mounts for fast repositioning Technical Specifications | Parameter | Value | |-----------------|---------------------------| | Touch Points | 10-point multi-touch | | Battery | 36h continuous use | | Certifications | IP65, CE, EMC Class B |

Frequently asked questions — movable IP65 outdoor poster displays

1. How is the unit protected when it is used outdoors?

The housing is rated IP65, which means it is dust-tight and protected against water jets, so it can be left outdoors in rain without an additional shelter. IP66 adds protection against powerful water jets and IP67 adds protection against temporary immersion; if the display will be washed down or exposed to very heavy spray, confirm which level your site requires.

2. Can it be moved between locations, and how is it set up?

Yes — this is a movable poster display, so it is designed to be repositioned for promotions, entrances and events rather than fixed permanently to a wall. Tell us the ground surface, whether the unit has to pass through doors or lifts, and whether it will be used indoors and outdoors, and we will confirm the base, wheels and fixing arrangement for your installation.

3. Can it be read in bright or outdoor light?

For semi-outdoor and outdoor installations we combine a high-brightness backlight with optical bonding, where the touch panel is laminated directly to the LCD instead of leaving an air gap. Optical bonding removes internal reflections and raises contrast, so the screen stays readable under strong ambient light. The brightness and bonding combination is selected per model and installation site.

4. What operating temperature range can be supported?

We use industrial-grade wide-temperature panels and components together with industrial driver boards, so the display keeps working outside a normal office environment. The exact operating range depends on the model and on your enclosure and duty cycle — send us your environment conditions and we will confirm the applicable range for the model you choose.

5. Which certifications can you provide?

We ship to Germany, the United States, Japan, India and Korea, and we provide the certification documents required by the target market — for example CE for the European Union, FCC for the United States, PSE/TELEC for Japan, BIS for India and KC for Korea — together with RoHS compliance documentation. Certificates are model-specific and in some cases end-product specific, so tell us your destination market and the model you are considering and we will confirm the applicable certificates for that combination.

6. What about warranty and long-term OEM supply?

Standard warranty is one year, and extended warranty is available on request to match your project or service contract. For OEM integration we keep the display configuration fixed for your product, record the approved golden sample and control batch-to-batch consistency; if a panel, touch panel or driver board reaches end of life we inform you in advance and propose a drop-in replacement so production is not interrupted. Spare-parts and replacement-unit options are available.
