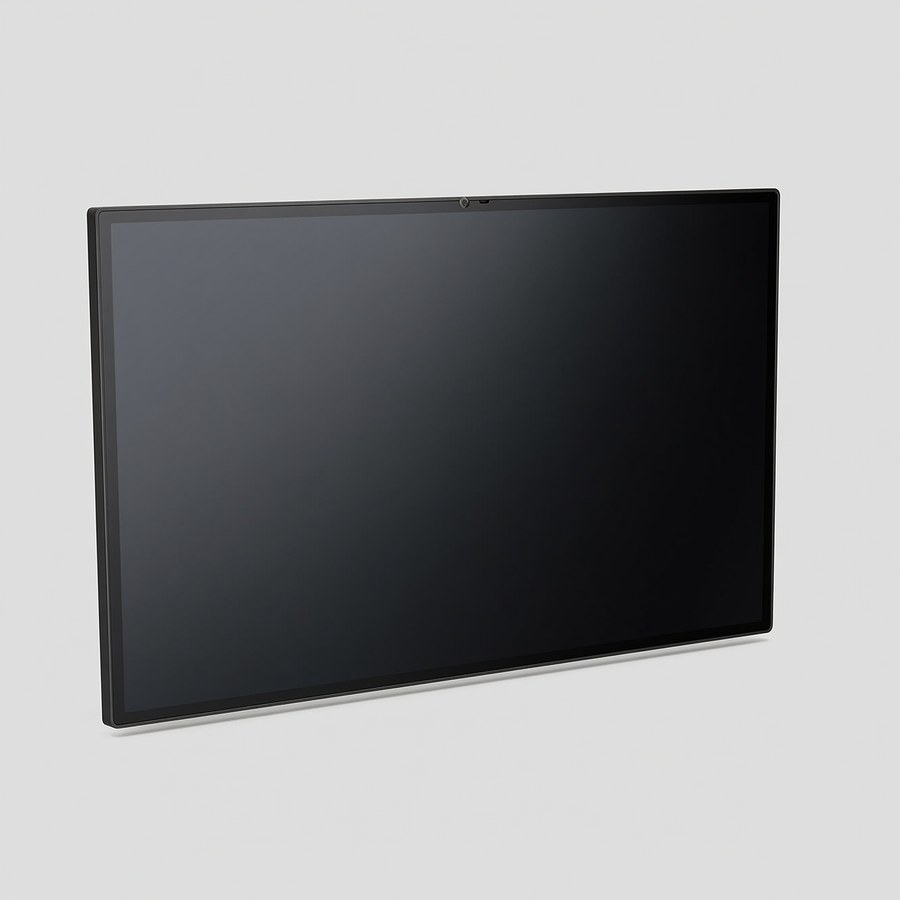

10.1-Inch Open-Frame High-Brightness Touch Monitor 1000 Nits Optically Bonded: Buyer Verification Guide
DIRECT ANSWER
For the 10.1" open-frame high-brightness touch monitor (model STD101OFTMOB), verify five things before ordering: the 1000-nit brightness is panel-level, the IP65 rating applies to the sealed front panel only, optical bonding is confirmed, the native resolution is 1280 × 800, and customization limits (IP66/IP69K, resistive touch, MOQ, lead time) are quoted per project. Stark Touch Device is the overseas brand of Shenzhen Superstark Technology Co., Ltd.
What Buying Scenario Does This 10.1" Open-Frame Monitor Actually Solve?
This monitor is built for embedded installation where the display must stay readable in bright ambient light and survive dust or washdown exposure at the front face. Typical fits include industrial automation HMI panels, outdoor kiosks, retail self-service terminals, and medical or laboratory equipment enclosures.
The open-frame format means the buyer supplies the enclosure cutout; the monitor is mounted into it rather than housed in its own case. That changes what you must verify: cutout dimensions, mounting hole pattern, front-panel sealing method, and cable exit clearance all become your responsibility, not the supplier's.
Which Specifications Should You Compare Before Requesting a Quote?
The table below separates what is fixed on model STD101OFTMOB from what is configurable. Treat the fixed column as the baseline you are buying; treat the configurable column as items that must appear in writing on your quotation.
| Specification | Fixed on STD101OFTMOB | Configurable / Quoted Per Project |
|---|---|---|
| Screen size | 10.1 inch | — |
| Resolution | 1280 × 800 | — |
| Aspect ratio | 16:10 | — |
| Brightness | 1000 nits | — |
| Core technology | Optically bonded | — |
| Refresh rate | 60 Hz | — |
| Touch technology | Projected capacitive (PCAP), 10-point multi-touch | Resistive optional |
| Installation | Open-frame embedded mount | — |
| Front-panel sealing | IP65 | IP66 / IP69K available on request |
| Operating temperature | −10°C to 60°C | — |
| Storage temperature | −20°C to 60°C | — |
| Humidity | 10–90% RH, non-condensing | — |
| Surface hardness | 7H | — |
| Transmittance | ≥ 85% | — |
| Viewing angle | 178°/178° (IPS); 160°/160° typical (TN) | Panel type dependent |
| Contrast ratio | 1000:1 typical | Panel dependent |
| Backlight life | ≥ 30,000 hours | — |
| MOQ | — | 1 pc for sample evaluation; volume quoted per project |
| Lead time | — | 7–15 days standard; about 25 days customized |
| Warranty | — | 12 months from shipment (manufacturing defects) |
| Certifications | — | CE / FCC / RoHS compliance can be provided per project; documentation available on request |
What Brightness and Optical Bonding Evidence Should You Ask For?
The 1000-nit figure is a panel-level brightness specification for model STD101OFTMOB, not a guaranteed on-screen luminance after cover glass and bonding.
Optical bonding is confirmed as the core technology on this model; it reduces internal reflection and improves sunlight readability compared with an air-gap assembly.
Transmittance is specified at ≥ 85%, which is the figure that determines how much of the 1000 nits reaches the viewer's eye.
Surface hardness is rated 7H, which is the scratch-resistance class of the front surface, not an impact rating.
Ask for the brightness measurement basis: whether the 1000 nits is measured at the panel, at the bonded stack, or at the finished front surface. These three numbers differ, and only the last one describes what your end user sees.
How Do You Verify the IP65 Rating and Open-Frame Mounting Limits?
The IP65 rating on this model applies to the sealed front panel only; it does not describe the rear of the monitor or the enclosure you build around it.
IP66 and IP69K are available on request, which means they are not standard on STD101OFTMOB and must be quoted as a project-specific configuration.
Operating temperature is −10°C to 60°C and storage temperature is −20°C to 60°C; confirm your enclosure's internal air temperature stays inside the operating range, since a sealed enclosure can run hotter than ambient.
Humidity tolerance is 10–90% RH, non-condensing; condensing environments require a different sealing and ventilation strategy than the standard IP65 front panel provides.
Which Touch, Panel and Lifetime Specifications Affect Your Design?
Touch technology is projected capacitive (PCAP) with 10-point multi-touch; resistive touch is optional and must be specified at order stage.
Viewing angle is 178°/178° on IPS panels and 160°/160° typical on TN panels, so panel type must be confirmed in writing if wide-angle viewing matters to your application.
Contrast ratio is 1000:1 typical and is panel dependent, meaning it is not a fixed guarantee across all builds of this model.
Backlight life is rated at ≥ 30,000 hours, which is a backlight figure and not a whole-monitor service life.
Refresh rate is 60 Hz, which suits static HMI, kiosk and control-panel content rather than high-frame-rate video or fast-motion interfaces.
What Are the Realistic Application Limits of This Monitor?
This model suits industrial, automation, retail, medical and outdoor kiosk environments where the front face is exposed but the rear sits inside a protected enclosure.
It is not a standalone outdoor display: the open-frame design assumes you provide the housing, cable management and thermal path.
At 10.1 inches and 1280 × 800, it is a control-and-status display size, not a signage or video-wall panel.
Because the front panel carries IP65 and the rear does not, washdown or hose-directed cleaning should be confirmed against your actual mounting method before you commit to a production run.
Verify-Before-Ordering Checklist
Ask these questions of any supplier, including Stark Touch Device:
- On model STD101OFTMOB, is the 1000-nit brightness measured at the panel, at the bonded stack, or at the finished front surface, and can you state the measurement basis in writing?
- Does the IP65 rating on this 10.1" open-frame monitor cover the sealed front panel only, and what exactly is excluded at the rear and at the cable exit?
- If I need IP66 or IP69K on this model, what changes in the assembly, what is the MOQ, and what is the revised lead time beyond the standard 7–15 days?
- Is optical bonding standard on STD101OFTMOB, and what transmittance figure applies to the bonded stack rather than the bare panel?
- Which panel type ships by default at 1280 × 800 — IPS at 178°/178° or TN at 160°/160° — and can the panel type be locked for repeat orders?
- Can you provide the exact cutout dimensions, mounting hole pattern and front-panel gasket specification for the 10.1" open-frame chassis?
- For a customized build, what is the confirmed lead time (approximately 25 days is the reference) and what project scope changes it?
- Can CE / FCC / RoHS compliance documentation be provided for this order or project, and in what form?
- What is the warranty term on this model, and does it cover the bonded stack and backlight separately from manufacturing defects?
- Can I order 1 pc for sample evaluation before committing to a volume quotation?
FAQ
Q: What is the native resolution of the STD101OFTMOB 10.1" open-frame monitor? A: It is 1280 × 800 at a 16:10 aspect ratio, company-confirmed for model STD101OFTMOB.
Q: Is 1000 nits enough for a sunlight-readable outdoor kiosk? A: 1000 nits is the panel-level figure on this model; optical bonding and ≥ 85% transmittance improve readability, but final performance depends on your enclosure and glazing.
Q: Does the IP65 rating on this 10.1" monitor cover the whole unit? A: No. IP65 applies to the sealed front panel only; IP66 and IP69K are available on request as project-specific configurations.
Q: Can I get resistive touch instead of PCAP on this open-frame display? A: Yes. Projected capacitive 10-point multi-touch is standard; resistive touch is optional and must be specified at order stage.
Q: What is the minimum order quantity and lead time for STD101OFTMOB? A: MOQ is 1 pc for sample evaluation; standard lead time is 7–15 days, and customized builds run about 25 days subject to project scope.
Q: What certifications can be provided for this 10.1" high-brightness monitor? A: CE / FCC / RoHS compliance can be provided per project, and documentation is available on request; no certificate numbers are issued in advance.
