32 Inch IP65 Optical Bonding Touch Monitor — 1000 Nits

Screen Size: 32 inch (16:9)
Resolution: 1920 x 1080
Brightness: 1000 cd/m2
Contrast: 1200:1
Viewing Angle: 89/89/89/89
Colour: 16.7 M
Response Time: 8 ms
Panel: TFT LCD, anti-glare
Touch Type: PCAP / resistive / non-touch (selectable)
Touch Points: 10
Surface: AG coating, >=7H
Glass: tempered 3 mm
Optical Bonding: standard process
Cover Coating: AR / AF / AG optional
Signal: HDMI x1
Power: DC 24 V / 36 W
Outline (W x H x D): 780 x 474.6 x 76.7 mm
Housing: aluminium profile + sheet metal
VESA: 30

Product Details

Product Tags

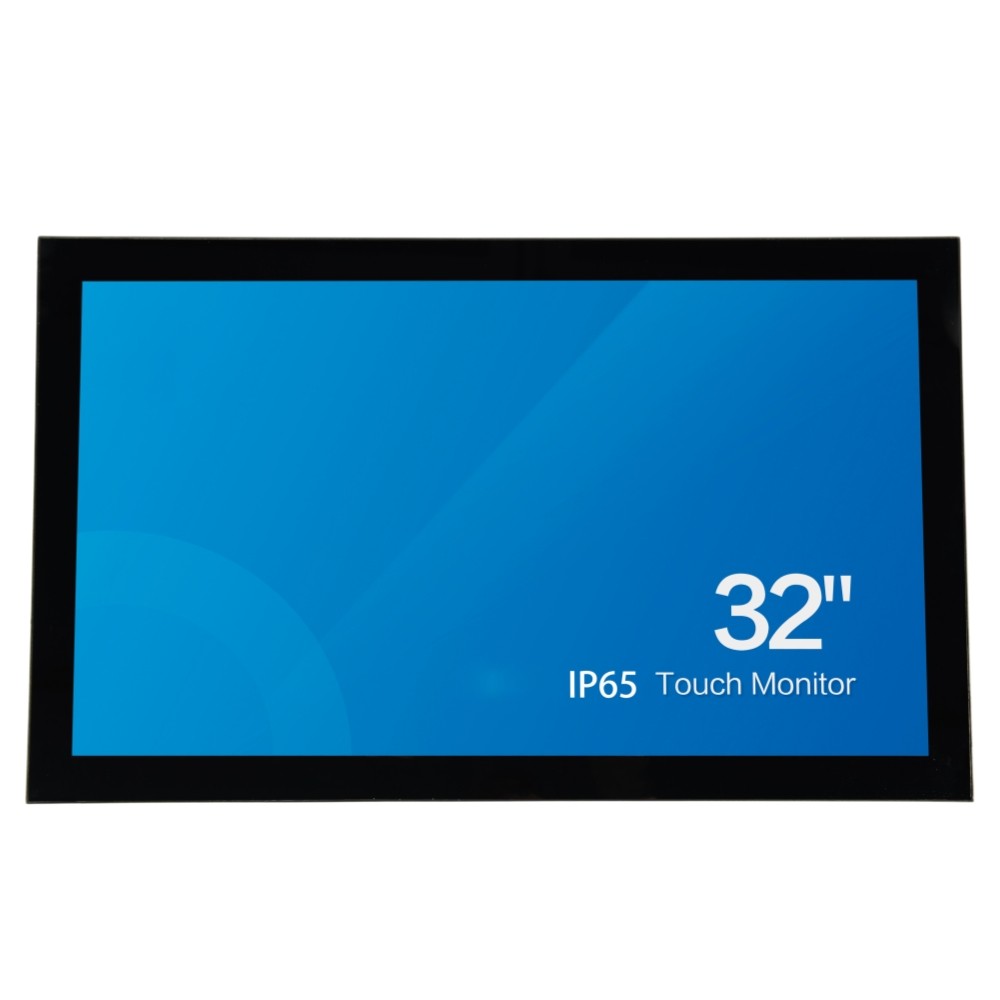

The STD-OB32CTM-IP65 is a 32-inch optical bonding touch monitor sealed to IP65 on both front and rear. Optical bonding fills the air gap between glass and panel, removing internal fogging and raising contrast to 1200:1 at 1000 nits — enough to stay readable in daylight without a sun hood. It fits outdoor kiosks, charging stations, factory HMI panels and any cabinet where a laminated screen would fog.

32 inch1920×1080 16:9
1000 nitsdaylight readable
1200:1bonded contrast
IP65front & rear sealed

Key Specifications

ItemSpecificationDatasheet
Display32" TFT LCD, anti-glare, 1920×1080 (16:9)Download PDF
Brightness1000 cd/m² (up to 1500 nits optional)
Contrast1200 : 1
Viewing angle89 / 89 / 89 / 89
Response8 ms
Touch10-point PCAP (resistive / non-touch optional)
SurfaceAG coating, ≥7H, tempered 3 mm glass
SealIP65 front and rear
InterfaceHDMI ×1—
PowerDC 24 V, 36 W—
Outline780 × 474.6 × 76.7 mm—
Housingaluminium profile + sheet metal—
VESA300 × 200 mm—
Operating temp.−10 to 70 °C—
Net weightapprox. 16 kg—

Why Optical Bonding Matters

A laminated screen keeps a thin air gap between the cover glass and the LCD. That gap fogs in cold or humid conditions and reflects ambient light back at the viewer. Optical bonding replaces the air gap with an optical-grade adhesive:

  • No internal fogging — no air layer, so no condensation. This is the single biggest reason outdoor cabinets fail in winter.
  • Higher contrast — 1200:1 instead of the ~400:1 typical of laminated panels, because internal reflection is gone.
  • Daylight readable — 1000 nits with no internal reflection stays legible in direct sun; 1500 nits is available as an option.

The bonded surface has an AG coating at ≥7H and tempered 3 mm glass, and supports latex gloves and a capacitive stylus. AR and AF coatings are available on request.

Where It Fits

  • EV charging stations — IP65 both faces, −10 to 70 °C, readable in direct sunlight
  • Outdoor kiosks and ticketing — 32-inch 16:9 at arm's length, sealed against rain and dust
  • Factory HMI panels — aluminium profile housing resists coolant spray and cleaning agents
  • Transit and shelter displays — see the Subway-customised version below for enclosure options

Standard vs Custom

CustomizableFixed
Touch type: PCAP / resistive / non-touchPanel size 32"
Brightness up to 1500 nitsNative resolution 1920×1080
Cover coating: AR / AF / AG16:9 aspect ratio
Interface layout and connectorsBonded TFT panel
Housing finish and brand silkscreen—
Mounting: VESA / recess / custom frame—

Also available in 32/43-inch Subway-customised version and in 55-inch large format. See related products.

FAQ

What is optical bonding and why does it matter outdoors?

Optical bonding fills the air gap between cover glass and LCD with optical-grade adhesive. Without that air gap the panel cannot fog internally and does not reflect ambient light twice, so contrast stays at 1200:1 and the image remains readable in daylight.

Is this IP65 on both front and rear?

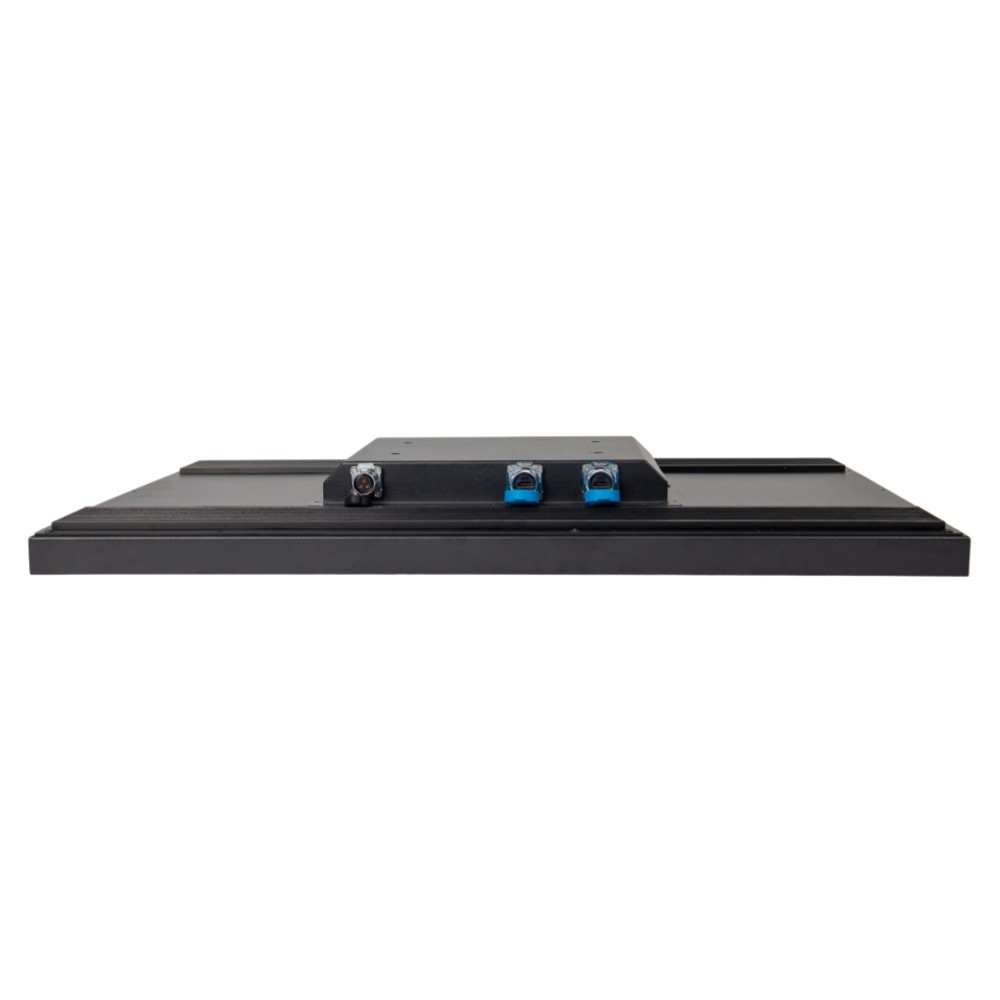

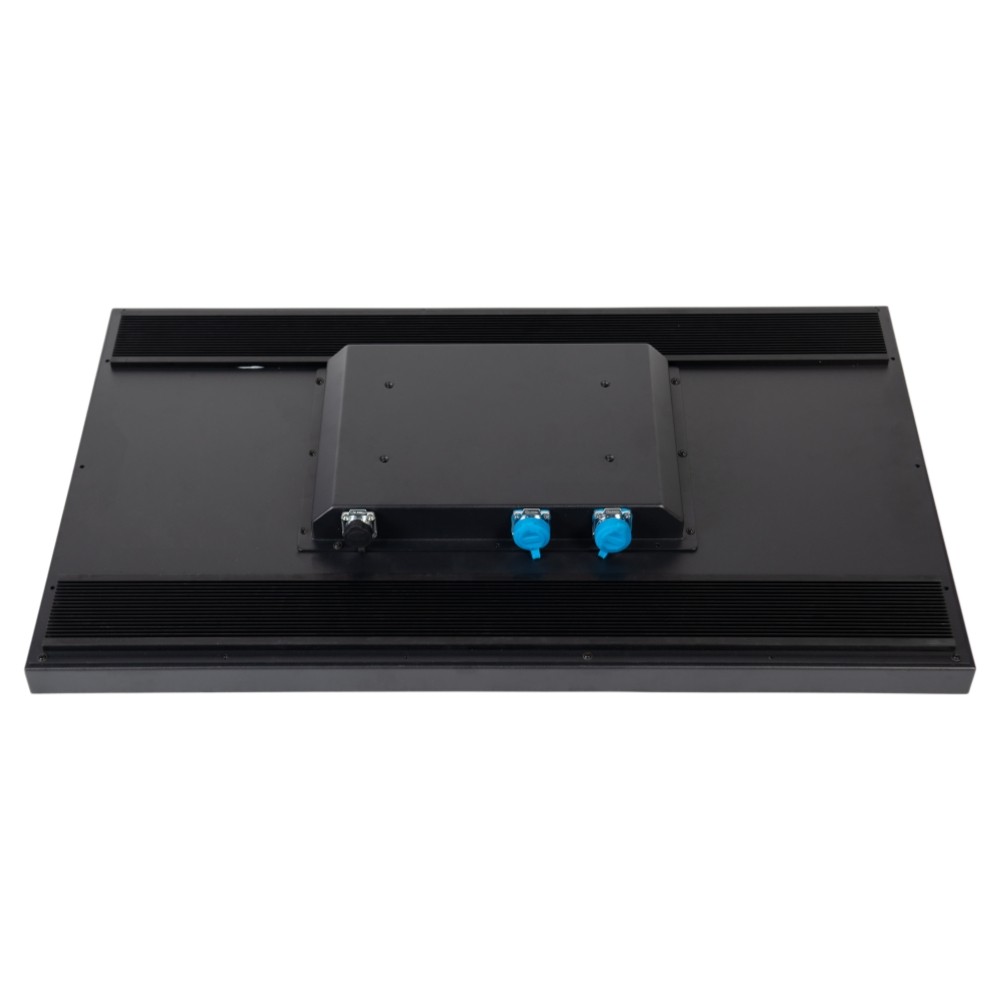

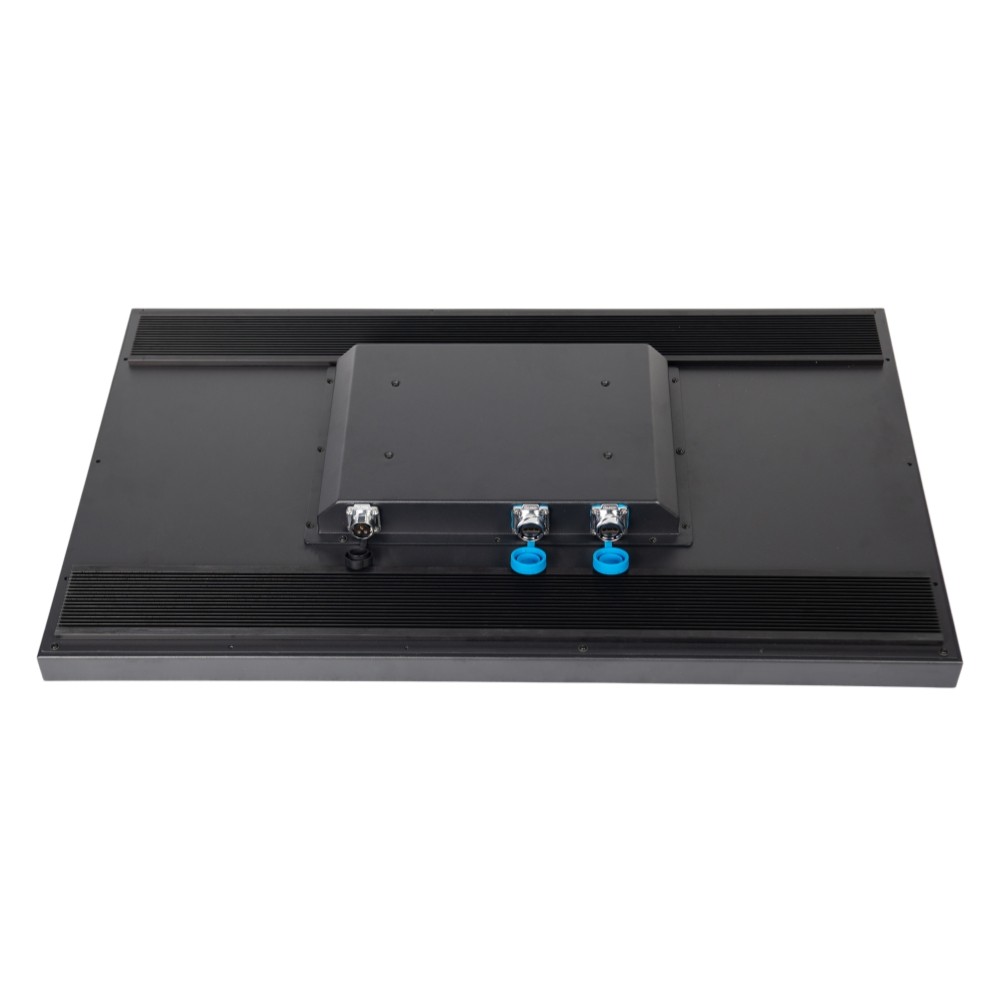

Yes — IP65 front and rear. Rear connectors and cable entries are sealed per project.

Can I get a brighter version?

Yes. Brightness can be customised up to 1500 nits, as noted on the datasheet.

What is the difference between the 32-inch and the 32/43 Subway version?

Same panel technology and bonding process; the Subway version adds a transit-rated enclosure and custom housing for 32-inch and 43-inch installations.

What is the minimum order quantity?

1 pc for sample evaluation. Volume orders are quoted per project.

How long is lead time?

7–15 days for standard configurations, about 25 days for customized units.
