15.6 Inch IP65 Stainless Steel Touch Panel PC — Intel J1900

Screen Size: 15.6 inch (16:9)
Resolution: 1920 x 1080
Brightness: 1000 cd/m2 (high brightness)
Panel: TFT LCD, anti-glare
Touch Type: PCAP 10-point capacitive
Optical Bonding: standard process
Form Factor: Panel PC, stainless steel enclosure
CPU: Intel Celeron J1900
Enclosure: 304 stainless steel
Protection: IP65
Type: Panel PC (all-in-one)
Operating Temp: -10 to 60 C
Certification: CE / FCC

Product Details

Product Tags

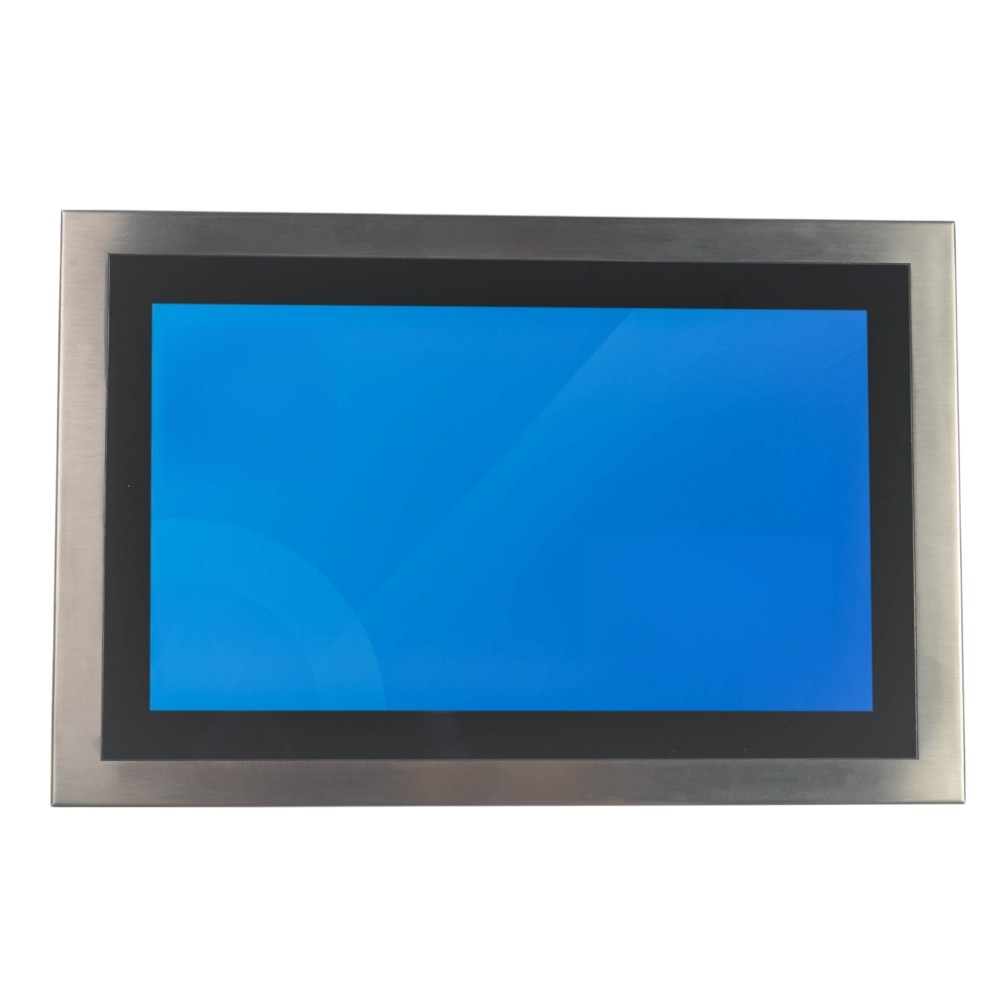

15.6" IP65 High-Brightness Stainless Steel Touch Panel PC

Built for the most demanding industrial environments, this 15.6-inch Panel PC combines a rugged stainless steel enclosure with advanced display technology. Featuring IP65 protection, optical bonding, and high-brightness output, it ensures clear visibility and reliable operation even in harsh conditions. Powered by the Intel J1900 processor, it delivers efficient performance for automation, control, and signage applications.

15.6" IP65 stainless steel panel PCIntel J1900, 1000 nits, stainless steel housing
Download Datasheet
  • Display: 15.6-inch High-Brightness screen with Optical Bonding

  • Processing: Intel J1900 Quad-Core Processor

  • Build: Full Stainless Steel Enclosure, IP65 Rated

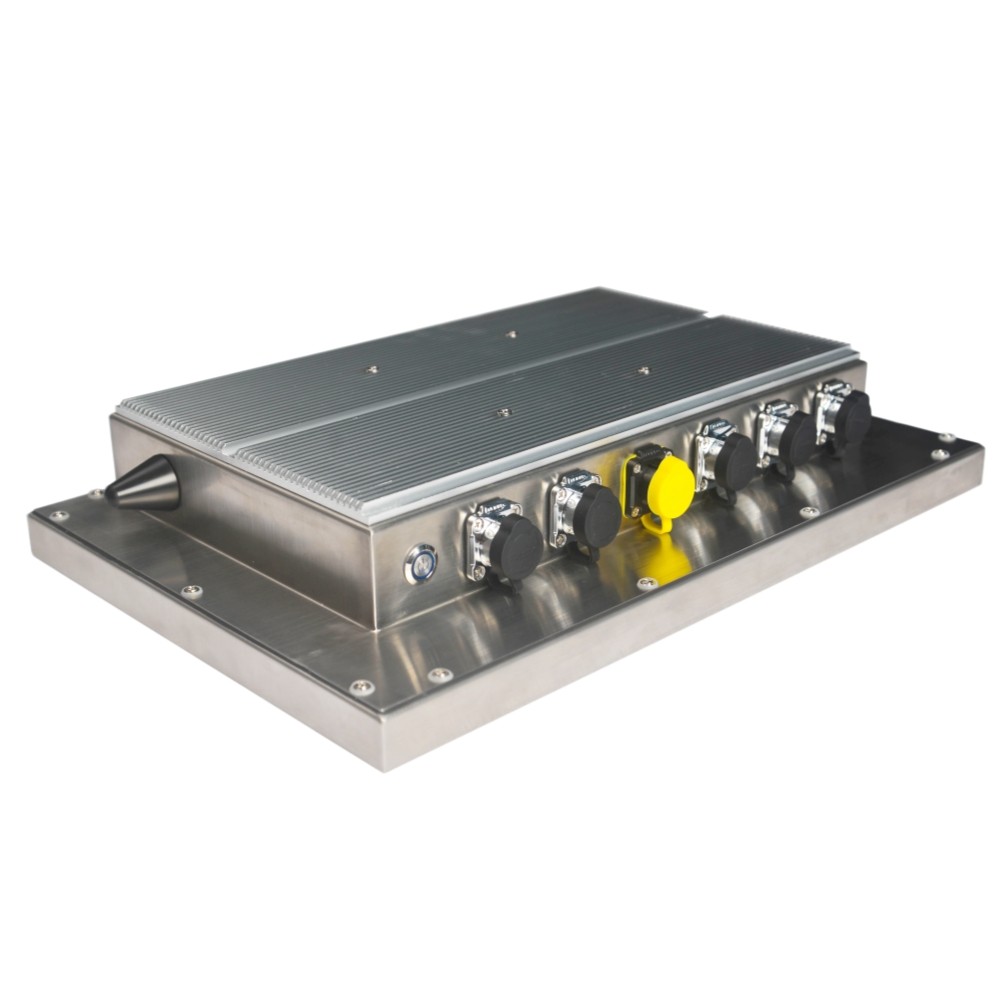

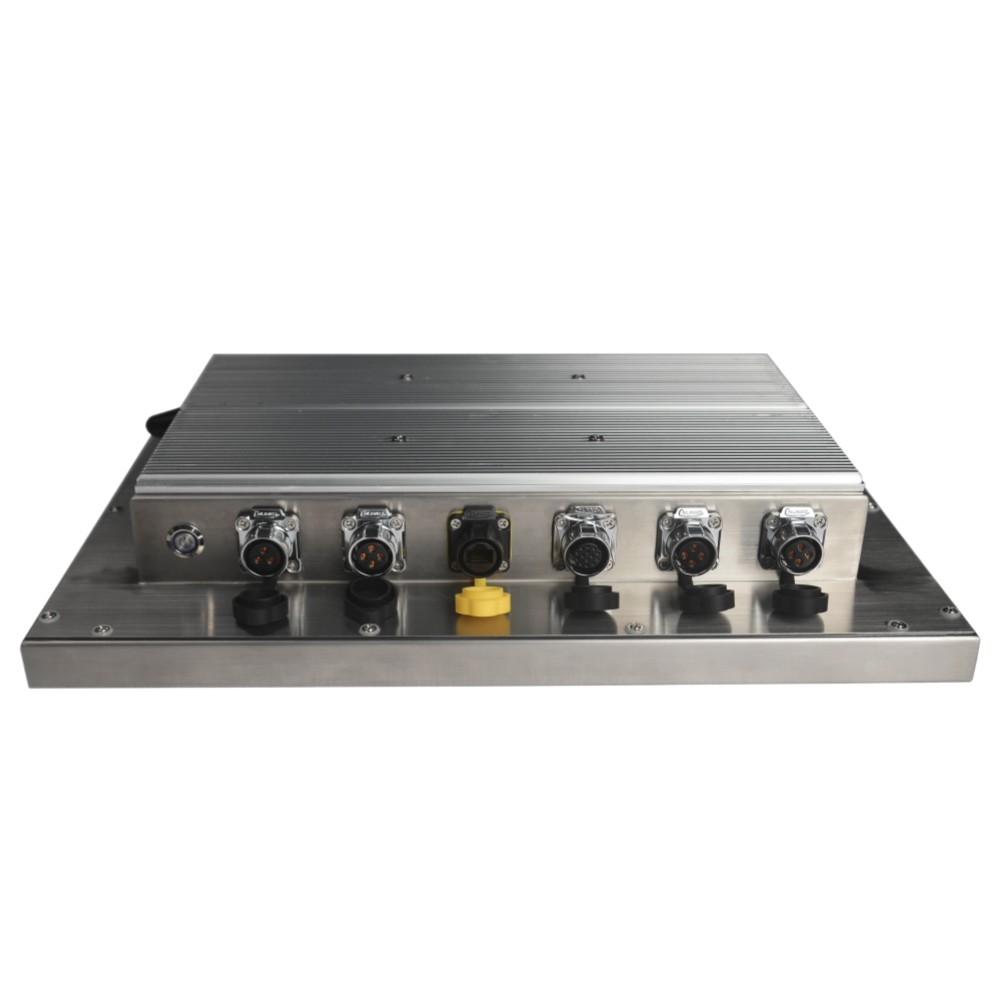

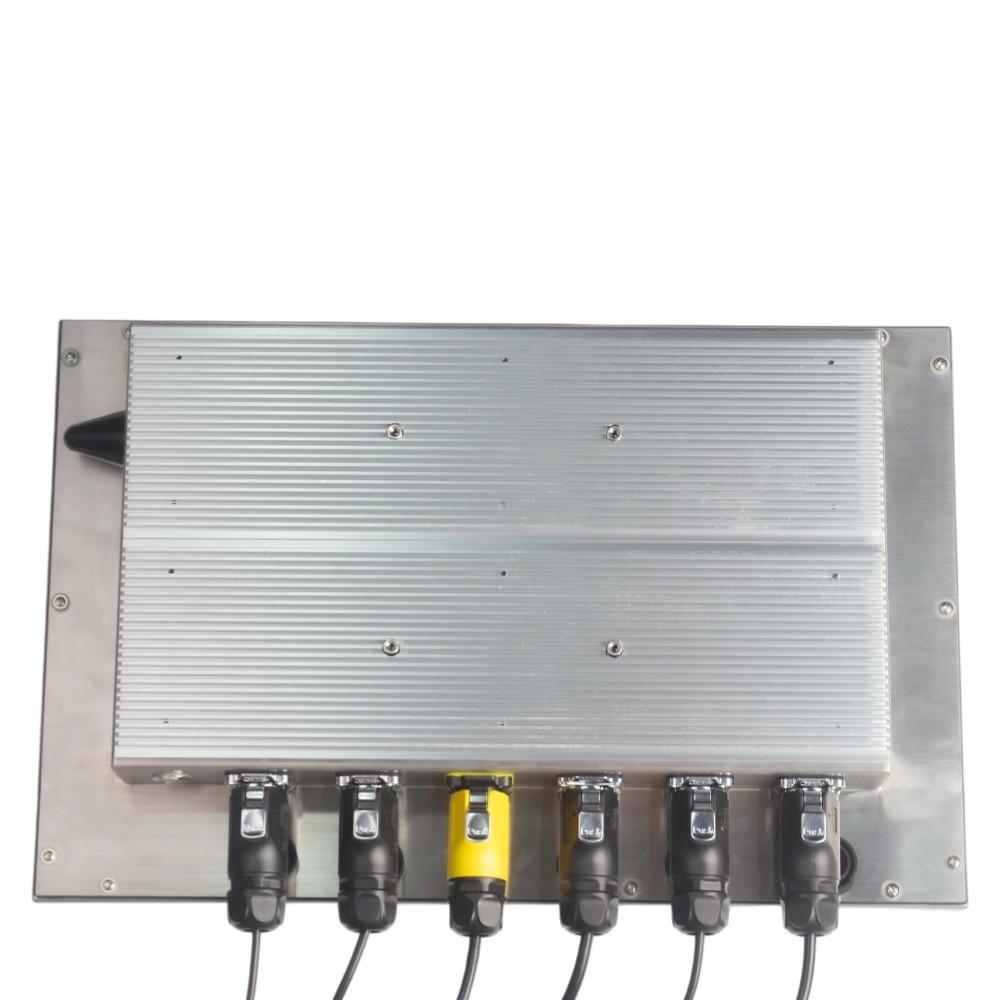

  • Connectivity: Multiple rear industrial circular connectors

  • Installation: Flush panel mount design


Industrial All-in-one Computer

We specialize in delivering efficient OEM/ODM solutions for global clients. Backed by an experienced technical team and self-developed advanced processes such as LOCA optical bonding.

Featuring a fully-enclosed metal body and reinforced glass panel, this product offers excellent resistance to dust, water, impact, and scratches. Its fanless cooling design and support for wide-temperature and wide-voltage operation ensure stable 24/7 performance even in harsh environments ranging from -40°C to 80°C. It supports both capacitive and resistive touch technologies, accommodating gloved and stylus operation. With a wide range of industrial interfaces and modular expansion capabilities, it is compatible with multiple operating systems and AI edge computing functionalities, making it ideal for high-demand applications such as smart manufacturing, warehousing, and healthcare.

Product Description

Product Name: 15.6" IP65 High-Brightness Stainless Steel Optical Bonding Touch Panel PC J1900

Brand / Manufacturer: Stark Touch Device / OEM / ODM

Our products feature AG coating that can effectively prevent glare. Equipped with dual HDMI, DVI and VGA interfaces, they are convenient for users to choose according to project requirements. The high-resolution monitor screen delivers delicate picture quality. Optical bonding between the touch screen and LCD module makes the image more realistic and improves viewing performance.

Key Features

✓

Industrial-Grade Rugged Protection

Featuring a fully-sealed metal chassis, reinforced glass panel, and silicone gaskets, it achieves an IP65 rating for effective resistance against oil, dust, and liquid splashes. Its robust design ensures impact and scratch resistance, built to thrive in harsh industrial settings.

✓

Exceptional Environmental Adaptability

Engineered for extreme conditions with a wide operating temperature range (-40°C to 80°C) and wide-voltage input (9-36V). The fanless cooling design and optional high-brightness anti-glare display support stable performance in volatile temperatures, power fluctuations, and direct sunlight.

✓

Professional & Versatile Touch Options

Offers capacitive and resistive touchscreen solutions. The capacitive screen supports responsive 10-point multi-touch, while the resistive screen allows operation with gloves or a stylus for specialized industrial environments.

✓

Comprehensive I/O & Seamless Expandability

Standard industrial interfaces include RS232/485, CAN bus, and Gigabit LAN for PLCs and sensors. Optional 4G, WiFi, GPS, RFID, and PoE configurations support flexible installation.

✓

High Reliability for Continuous Operation

The fanless architecture reduces dust accumulation and fan failures. Industrial-grade components, shock-resistant storage, long-life LED backlights, and anti-corrosion PCBs support reliable 24/7 operation.

✓

Powerful System & AI Computing Support

Windows, Android, and Linux options support industrial software such as MES and SCADA. Selected configurations can provide higher-performance processing for edge computing requirements.

Operating System Options

Supported operating systems: Windows and Android. Select the system version according to your software, industrial-control, or edge-computing requirements.

Windows operating system optionAndroid operating system option
LCD DisplayResolutionAspect RatioTouch Screen Type
7 inch1024 × 60016:9Capacitive / Resistive / Non-touch Options
8 inch1024 × 7684:3Capacitive / Resistive / Non-touch Options
10.1 inch1280 × 80016:10Capacitive / Resistive / Non-touch Options
10.4 inch1024 × 7684:3Capacitive / Resistive / Non-touch Options
11.6 inch1920 × 108016:9Capacitive / Resistive / Non-touch Options
12 inch1024 × 7684:3Capacitive / Resistive / Non-touch Options
12.1 inch1280 × 80016:10Capacitive / Resistive / Non-touch Options
13.3 inch1920 × 108016:9Capacitive / Resistive / Non-touch Options
15 inch1024 × 7684:3Capacitive / Resistive / Non-touch Options
15.6 inch1920 × 108016:9Capacitive / Resistive / Non-touch Options
17 inch1280 × 10245:4Capacitive / Resistive / Non-touch Options
17.3 inch1920 × 108016:9Capacitive / Resistive / Non-touch Options
18.5 inch1920 × 108016:9Capacitive / Resistive / Non-touch Options
19 inch1280 × 10245:4Capacitive / Resistive / Non-touch Options
19.1 inch1440 × 90016:10Capacitive / Resistive / Non-touch Options
21.5 inch1920 × 108016:9Capacitive / Resistive / Non-touch Options
23.8 inch1920 × 108016:9Capacitive / Resistive / Non-touch Options
25 inch2560 × 108021:9Capacitive / Resistive / Non-touch Options
27 inch1920 × 108016:9Capacitive / Resistive / Non-touch Options
32 inch1920 × 108016:9Capacitive / Resistive / Non-touch Options
43 inch1920 × 108016:9Capacitive / Resistive / Non-touch Options
55 inch1920 × 108016:9Capacitive / Resistive / Non-touch Options


More custom options are available. Feel free to contact our sales team.

Certifications & Compliance

As an OEM/ODM manufacturer, our products are designed and manufactured to comply with CE, FCC and RoHS requirements. Formal certification is arranged to match the market a project ships into, rather than applying one fixed certificate to every configuration. On request we can prepare and submit the following, together with the required test reports and documentation:

Destination marketScheme we can prepare
European Union / UKCE / UKCA
United StatesFCC
Materials & hazardous substancesRoHS / REACH documentation
ChinaCCC
Japan / KoreaPSE / KC
Australia / New ZealandRCM
Eurasian Customs UnionEAC

Please tell us the destination market and the certificate you need when requesting a quote; we will confirm the applicable scope, the extra cost and the lead time. Where the scheme allows, the certificate can be issued in the ordering brand's name.

Is the whole unit IP65, or only the front?

The published protection rating is IP65 with a 304 stainless steel enclosure. In practice the seal depends on installation: the front is sealed at the factory, and cable entries must be sealed on site. Tell us the cable routing and we will specify the glands.

Can the touch layer work with gloves?

The panel uses 10-point PCAP touch. Thin nitrile or latex gloves usually work; thick work gloves and wet hands change the result. For production environments we recommend testing a sample with your own gloves before the batch is released.

Do you offer 316L stainless steel instead of 304?

304 is the standard material for this model. 316L is available on request for chloride or washdown environments, quoted per order and with a longer lead time.

What cleaning agents are safe?

The front is tempered glass with an anti-glare coating over a stainless frame. Alcohol-based and mild detergent wipes are fine; abrasive pads, scouring powder and strong solvents are not. If your site has a fixed washdown protocol, send the chemical list and we will confirm compatibility.

What operating temperature is published?

−10 to 60 °C, with CE / FCC certification. Below −10 °C the panel needs warm-up time before full brightness is reached, so plan the start-up sequence for cold-store installations accordingly.

Custom builds are our core business.Custom size, I/O layout, brightness, wide temperature range, brand silkscreen — send your drawing and we quote within 24 hours. Request a custom quote →
