21.5 Inch IP65 Optical Bonding Touch Panel PC — Intel Core i7

Screen Size: 21.5 inch (16:9)
Resolution: 1920 x 1080
Brightness: 1000 cd/m2 (high brightness)
Panel: TFT LCD, anti-glare
Touch Type: PCAP 10-point capacitive
Optical Bonding: standard process
Form Factor: Panel PC, IP65 front
CPU: Intel Core i7
Protection: IP65 front panel
Type: Panel PC (all-in-one)
Operating Temp: -10 to 60 C
Certification: CE / FCC

Product Details

Product Tags

21.5" High-Performance IP65 Optical Bonding i7 Capacitive Touch Panel PC

This industrial-grade Panel PC combines a 21.5-inch display with powerful Intel Core i7 processing capabilities. Designed for demanding environments, it features an IP65 rating to ensure protection against dust and water ingress. The display utilizes optical bonding technology to enhance visibility and durability, paired with a responsive capacitive touch screen for intuitive user interaction.

21.5" IP65 panel PCIntel J1900 / U1800 platform, 300 nits
Download Datasheet

Key Features

  • Display: 21.5-inch screen with optical bonding for high clarity and durability.

  • Performance: Powered by Intel Core i7 processor for demanding industrial applications.

  • Durability: IP65 rated enclosure protects against harsh industrial conditions.

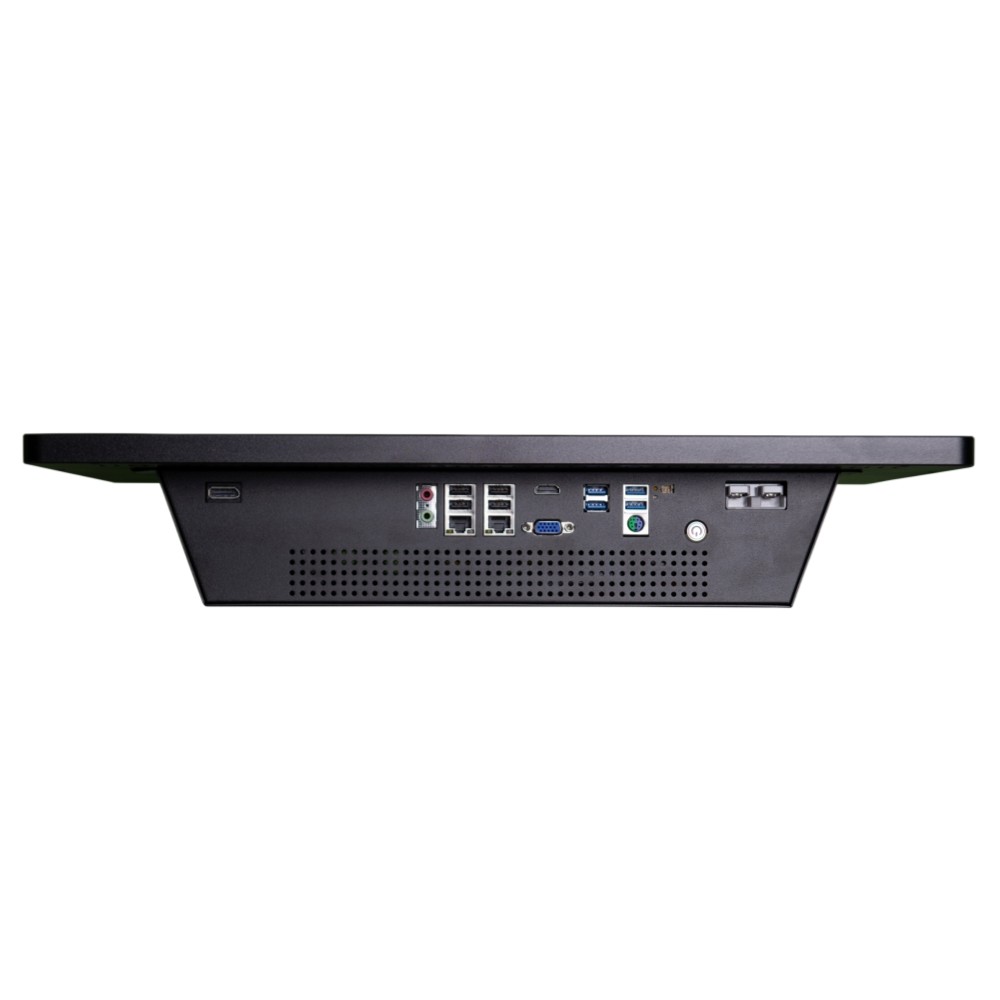

  • Connectivity: Comprehensive rear I/O including USB, HDMI, VGA, Ethernet, and audio ports.

  • Touch: Capacitive touch technology for precise control.

Applications

Ideal for industrial automation, medical equipment, smart factories, and ruggedized computing environments where reliability and performance are critical.


Industrial All-in-one Computer

We specialize in delivering efficient OEM/ODM solutions for global clients. Backed by an experienced technical team and self-developed advanced processes such as LOCA optical bonding.

Featuring a fully-enclosed metal body and reinforced glass panel, this product offers excellent resistance to dust, water, impact, and scratches. Its fanless cooling design and support for wide-temperature and wide-voltage operation ensure stable 24/7 performance even in harsh environments ranging from -40°C to 80°C. It supports both capacitive and resistive touch technologies, accommodating gloved and stylus operation. With a wide range of industrial interfaces and modular expansion capabilities, it is compatible with multiple operating systems and AI edge computing functionalities, making it ideal for high-demand applications such as smart manufacturing, warehousing, and healthcare.

Product Description

Product Name: 21.5" High-Performance IP65 Optical Bonding i7 Capacitive Touch Panel PC

Brand / Manufacturer: Stark Touch Device / OEM / ODM

Our products feature AG coating that can effectively prevent glare. Equipped with dual HDMI, DVI and VGA interfaces, they are convenient for users to choose according to project requirements. The high-resolution monitor screen delivers delicate picture quality. Optical bonding between the touch screen and LCD module makes the image more realistic and improves viewing performance.

Key Features

✓

Industrial-Grade Rugged Protection

Featuring a fully-sealed metal chassis, reinforced glass panel, and silicone gaskets, it achieves an IP65 rating for effective resistance against oil, dust, and liquid splashes. Its robust design ensures impact and scratch resistance, built to thrive in harsh industrial settings.

✓

Exceptional Environmental Adaptability

Engineered for extreme conditions with a wide operating temperature range (-40°C to 80°C) and wide-voltage input (9-36V). The fanless cooling design and optional high-brightness anti-glare display support stable performance in volatile temperatures, power fluctuations, and direct sunlight.

✓

Professional & Versatile Touch Options

Offers capacitive and resistive touchscreen solutions. The capacitive screen supports responsive 10-point multi-touch, while the resistive screen allows operation with gloves or a stylus for specialized industrial environments.

✓

Comprehensive I/O & Seamless Expandability

Standard industrial interfaces include RS232/485, CAN bus, and Gigabit LAN for PLCs and sensors. Optional 4G, WiFi, GPS, RFID, and PoE configurations support flexible installation.

✓

High Reliability for Continuous Operation

The fanless architecture reduces dust accumulation and fan failures. Industrial-grade components, shock-resistant storage, long-life LED backlights, and anti-corrosion PCBs support reliable 24/7 operation.

✓

Powerful System & AI Computing Support

Windows, Android, and Linux options support industrial software such as MES and SCADA. Selected configurations can provide higher-performance processing for edge computing requirements.

Operating System Options

Supported operating systems: Windows and Android. Select the system version according to your software, industrial-control, or edge-computing requirements.

Windows operating system optionAndroid operating system option
LCD DisplayResolutionAspect RatioTouch Screen Type
7 inch1024 × 60016:9Capacitive / Resistive / Non-touch Options
8 inch1024 × 7684:3Capacitive / Resistive / Non-touch Options
10.1 inch1280 × 80016:10Capacitive / Resistive / Non-touch Options
10.4 inch1024 × 7684:3Capacitive / Resistive / Non-touch Options
11.6 inch1920 × 108016:9Capacitive / Resistive / Non-touch Options
12 inch1024 × 7684:3Capacitive / Resistive / Non-touch Options
12.1 inch1280 × 80016:10Capacitive / Resistive / Non-touch Options
13.3 inch1920 × 108016:9Capacitive / Resistive / Non-touch Options
15 inch1024 × 7684:3Capacitive / Resistive / Non-touch Options
15.6 inch1920 × 108016:9Capacitive / Resistive / Non-touch Options
17 inch1280 × 10245:4Capacitive / Resistive / Non-touch Options
17.3 inch1920 × 108016:9Capacitive / Resistive / Non-touch Options
18.5 inch1920 × 108016:9Capacitive / Resistive / Non-touch Options
19 inch1280 × 10245:4Capacitive / Resistive / Non-touch Options
19.1 inch1440 × 90016:10Capacitive / Resistive / Non-touch Options
21.5 inch1920 × 108016:9Capacitive / Resistive / Non-touch Options
23.8 inch1920 × 108016:9Capacitive / Resistive / Non-touch Options
25 inch2560 × 108021:9Capacitive / Resistive / Non-touch Options
27 inch1920 × 108016:9Capacitive / Resistive / Non-touch Options
32 inch1920 × 108016:9Capacitive / Resistive / Non-touch Options
43 inch1920 × 108016:9Capacitive / Resistive / Non-touch Options
55 inch1920 × 108016:9Capacitive / Resistive / Non-touch Options


More custom options are available. Feel free to contact our sales team.

Certifications & Compliance

As an OEM/ODM manufacturer, our products are designed and manufactured to comply with CE, FCC and RoHS requirements. Formal certification is arranged to match the market a project ships into, rather than applying one fixed certificate to every configuration. On request we can prepare and submit the following, together with the required test reports and documentation:

Destination marketScheme we can prepare
European Union / UKCE / UKCA
United StatesFCC
Materials & hazardous substancesRoHS / REACH documentation
ChinaCCC
Japan / KoreaPSE / KC
Australia / New ZealandRCM
Eurasian Customs UnionEAC

Please tell us the destination market and the certificate you need when requesting a quote; we will confirm the applicable scope, the extra cost and the lead time. Where the scheme allows, the certificate can be issued in the ordering brand's name.

FAQ

Should I choose Intel Core i7 or a lower-power platform?

Choose i7 when the panel PC runs local image processing, machine vision, multi-window dashboards or a full Windows application. For simple HMI screens that only display values and accept touch input, the J1900 or U1800 platform is usually enough and runs cooler inside a sealed enclosure.

Why does a sealed panel PC need optical bonding?

Because a sealed housing traps moisture. A laminated screen inside will fog on the first cold morning, and the air gap reflects ambient light twice, halving effective contrast. Optical bonding removes that air gap, so the display cannot fog internally and contrast stays high.

Is the whole unit IP65 or only the front panel?

IP65 applies to the enclosure as delivered. Cable entries and connectors are sealed per project — tell us your cable routing and we match the glands to it.

Does it run Windows or Linux?

The x86 platform runs Windows and Linux. State the operating system and image you need when ordering so we can pre-configure the unit.

What is the minimum order quantity and lead time?

1 pc for sample evaluation. Standard configurations ship in 7–15 days; customized units take about 25 days, subject to project scope.

Can the enclosure or interface be customized?

Yes — interface layout, connector type, housing finish and brand silkscreen can be tailored. Send your drawing and we quote within one business day.

Custom builds are our core business.Custom size, I/O layout, brightness, wide temperature range, brand silkscreen — send your drawing and we quote within 24 hours. Request a custom quote →
