55 Inch IP65 Optical Bonding Touch Monitor — 1500 Nits

Screen Size: 55 inch (16:9)
Resolution: 1920 x 1080
Brightness: 1500 cd/m2
Contrast: 3000:1
Viewing Angle: 89/89/89/89
Colour: 16.7 M
Response Time: 12 ms
Panel: TFT LCD, anti-glare
Touch Type: PCAP / resistive / non-touch (selectable)
Touch Points: 10
Surface: AG coating, >=7H
Glass: tempered 3 mm
Optical Bonding: standard process
Cover Coating: AR / AF / AG optional
Signal: HDMI x1 + VGA x1 (optional)
Power: AC 120-240 V / 200 W
Outline (W x H x D): 1288 x 769 x 87.8 mm
Active Area: 1212 x 682

Product Details

Product Tags

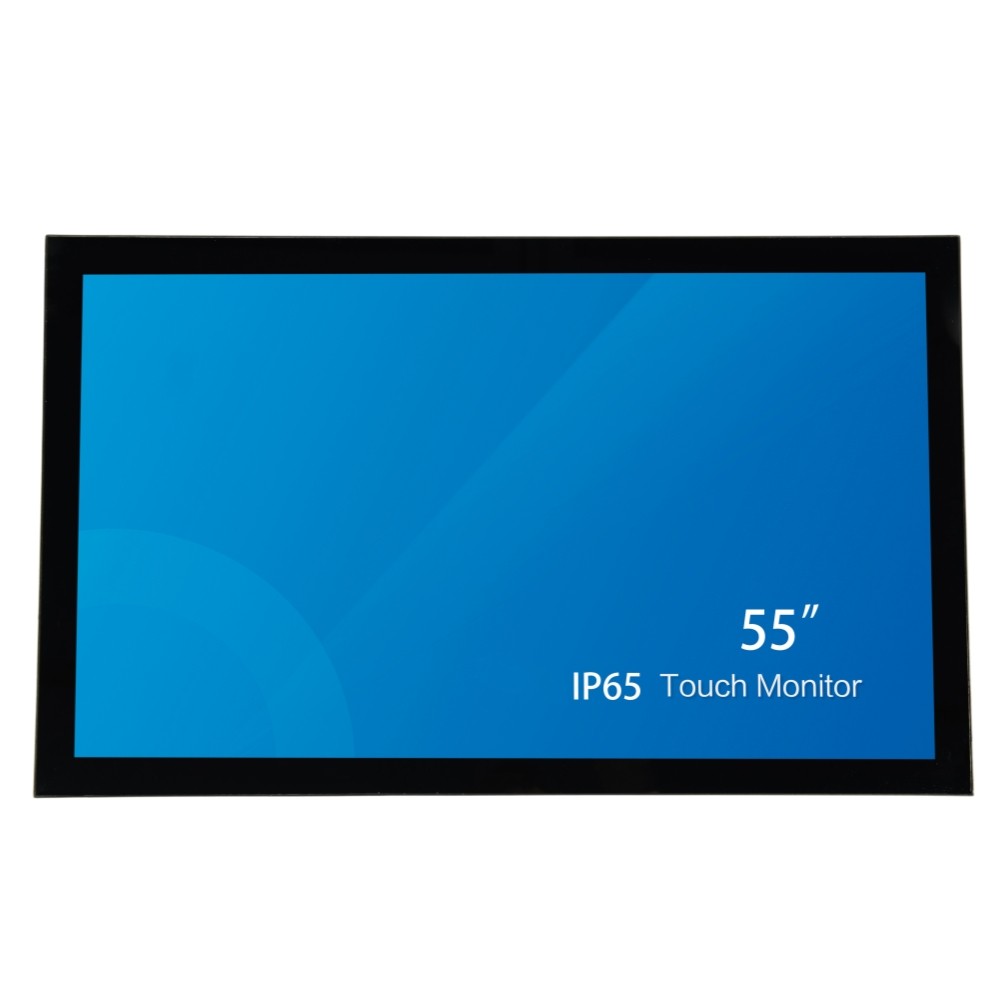

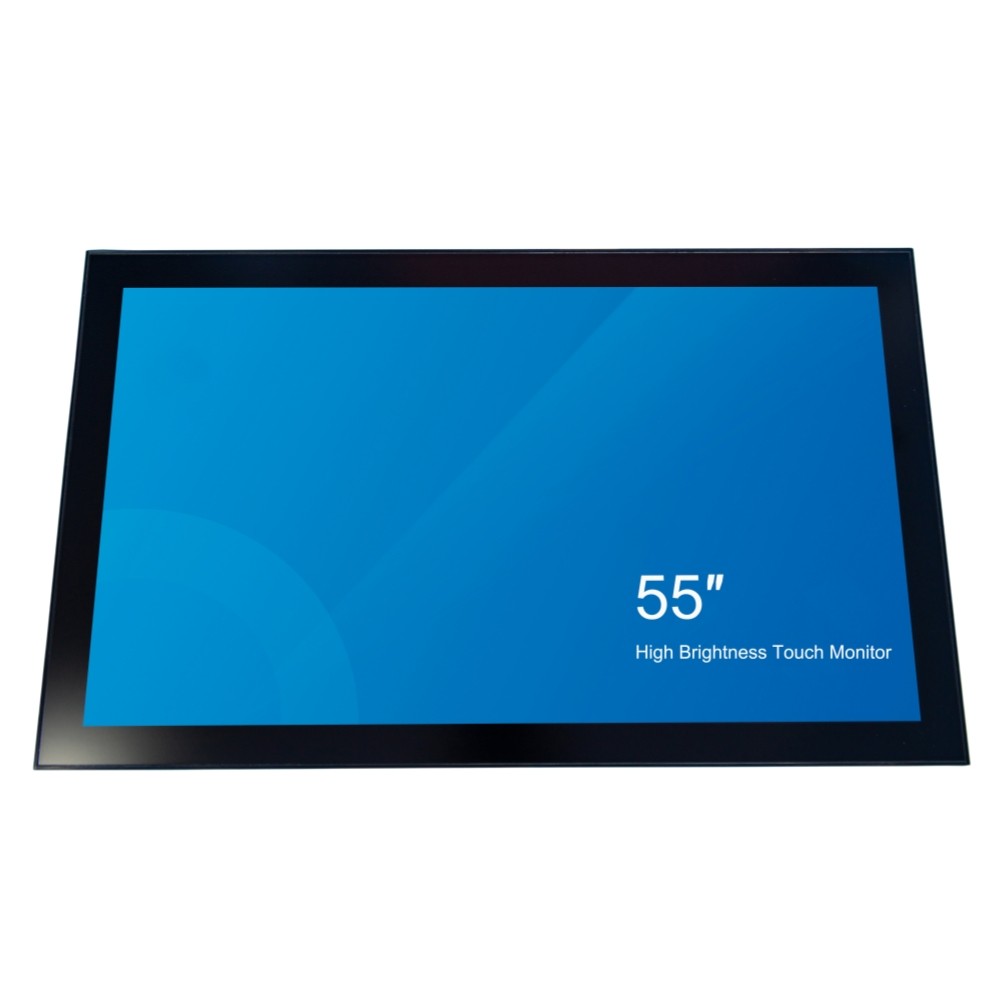

The STD-OB55IP65TM is a 55-inch optical bonding touch monitor sealed to IP65 on both front and rear. Optical bonding fills the air gap between glass and panel, which removes internal fogging, raises contrast to 3000:1 and keeps the 1500-nit image readable in direct sunlight. It is built for outdoor kiosks, transit shelters, factory floors and any location where a standard laminated display would fog or wash out.

55 inchlarge format 16:9
1500 nitssunlight readable
3000:1bonded contrast
IP65front & rear sealed

Key Specifications

ItemSpecificationDatasheet
Display55" TFT LCD, anti-glare, 1920×1080 (16:9)Download PDF
Brightness1500 cd/m²
Contrast3000 : 1
Viewing angle89 / 89 / 89 / 89
Response12 ms
Touch10-point PCAP (resistive / non-touch optional)
SurfaceAG coating, ≥7H, tempered 3 mm glass
SealIP65 front and rear
InterfaceHDMI ×1 + VGA ×1 (optional)—
PowerAC 120–240 V, 200 W—
Outline1288 × 769 × 87.8 mm—
Active area1212 × 682.4 mm—
VESA100 × 200 mm (4 × M6)—
Operating temp.0 to 70 °C—
Net weightapprox. 35 kg—

Why Optical Bonding Matters

Laminated displays have a thin air gap between the cover glass and the LCD. That gap traps moisture, fogs in cold or humid conditions, and reflects ambient light back at the viewer. Optical bonding replaces the air gap with an optical-grade adhesive, which changes three things at once:

  • No internal fogging — the sealed bond removes the air layer where condensation forms, so the display stays clear in cold rooms and outdoor cabinets.
  • Higher contrast — removing the internal reflection raises contrast to 3000:1, which is roughly three times a typical laminated 55-inch panel.
  • Sunlight readable — with 1500 nits and no internal reflection, the image stays legible in direct sunlight instead of washing out to a grey sheet.

The bonded surface also carries an AG (anti-glare) coating at ≥7H hardness, and supports operation with latex gloves and a capacitive stylus. AR (anti-reflection) and AF (anti-fingerprint) coatings are available as options.

Where It Fits

  • Outdoor kiosks and transit shelters — IP65 on both faces and 1500 nits handle rain, dust and direct sun
  • Factory floors and wash-down areas — tempered 3 mm glass and sealed housing tolerate cleaning and coolant spray
  • Control rooms and dispatch walls — 55-inch 16:9 with 89/89 viewing angle reads from a distance
  • Cold storage and humid cabinets — bonding removes the fogging that ruins laminated screens below 10 °C

Standard vs Custom

CustomizableFixed
Touch type: PCAP / resistive / non-touchPanel size 55"
Cover coating: AR / AF / AGNative resolution 1920×1080
Interface layout and waterproof connectors16:9 aspect ratio
Housing finish and brand silkscreenBonded TFT panel
Mounting bracket: VESA / desktop / ceiling / recess—

Other sizes in the same optical bonding series: 15.6", 21.5", 32" and 43" — see related products below.

FAQ

What exactly is optical bonding and why does it cost more?

Optical bonding fills the air gap between cover glass and LCD with an optical-grade adhesive. It removes internal reflection and fogging, which is why a bonded panel reaches 3000:1 contrast and stays readable in sunlight. The extra cost is the bonding process itself, not the panel.

Is the 55-inch model IP65 on both sides?

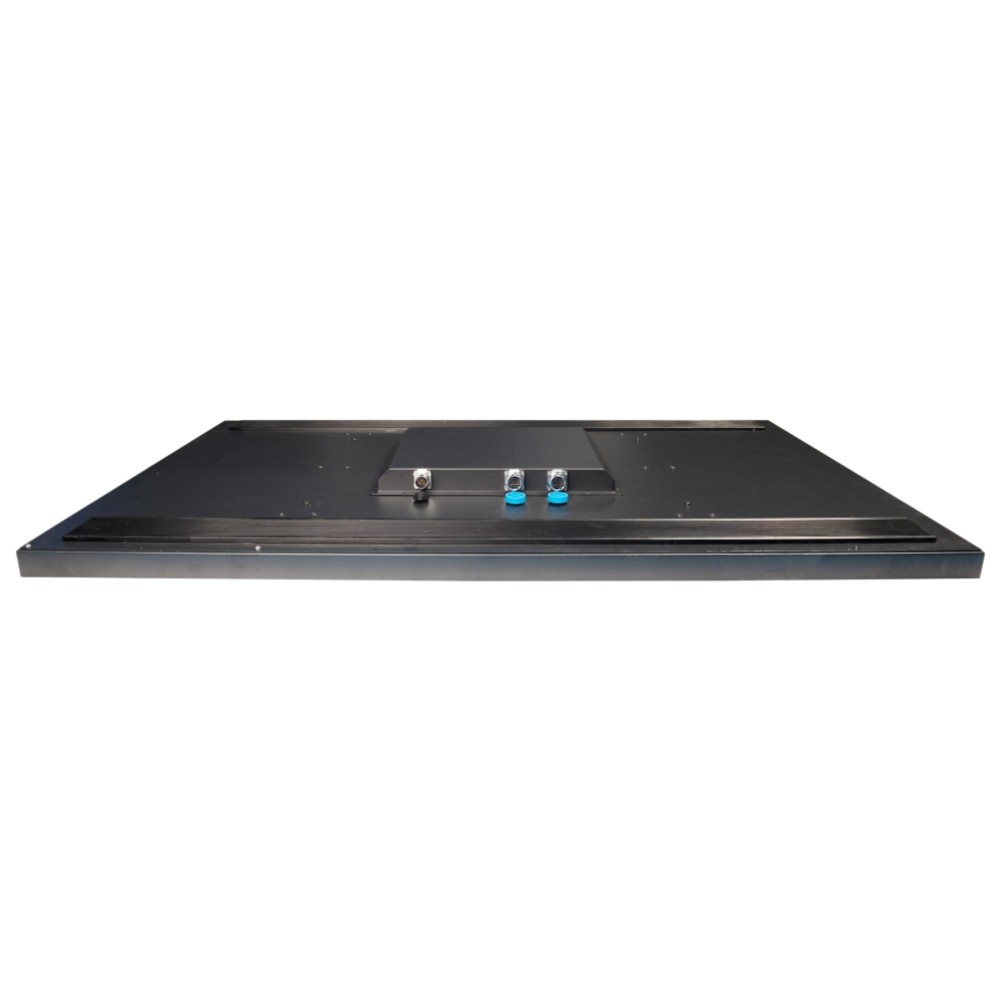

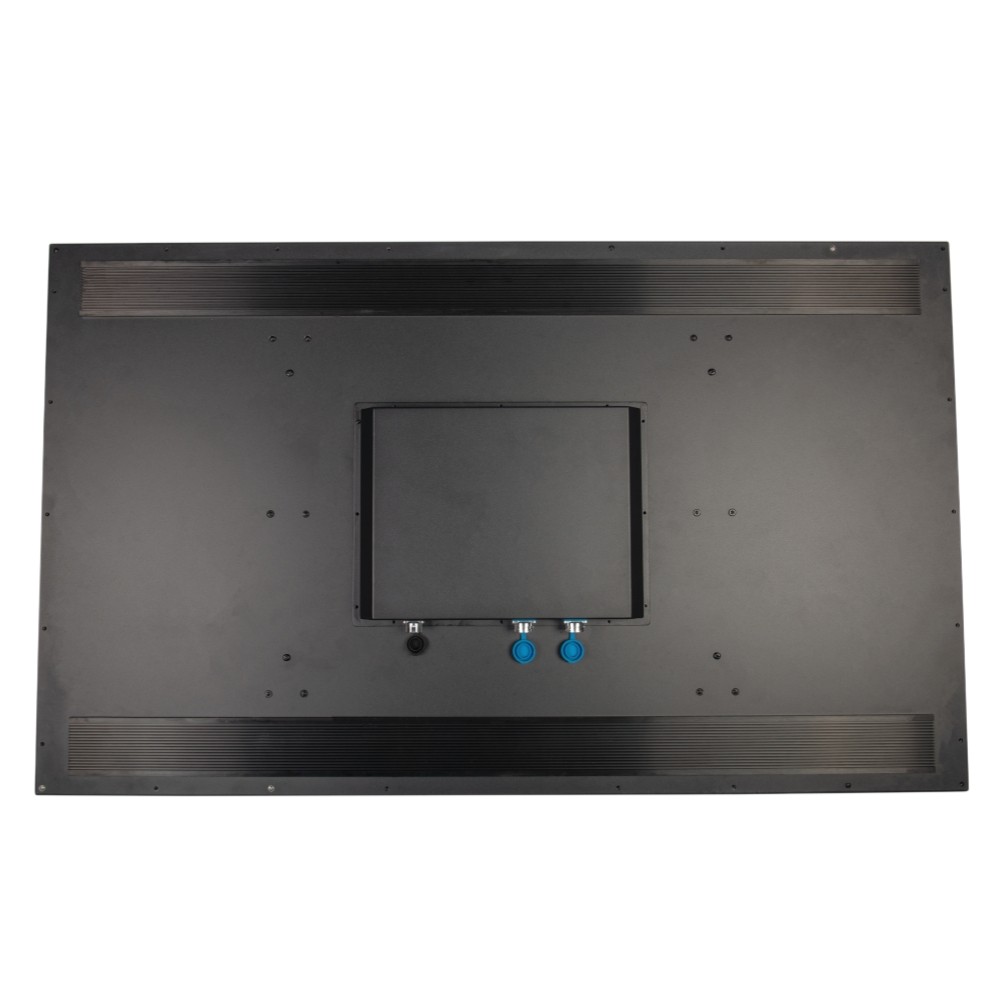

Yes — IP65 front and rear. The rear cable glands and waterproof connectors are configured per project.

Can it run in direct sunlight without a sun hood?

Yes. 1500 nits combined with optical bonding keeps the image legible in direct sun. For permanent outdoor installation we still recommend a slight downward tilt to reduce direct glare on the glass surface.

What is the minimum order quantity?

1 pc for sample evaluation. Volume orders are quoted per project.

How long is lead time?

7–15 days for standard configurations, about 25 days for customized units.

Does it work with gloves?

Yes — the PCAP sensor supports latex gloves and a capacitive stylus, as noted on the datasheet.
