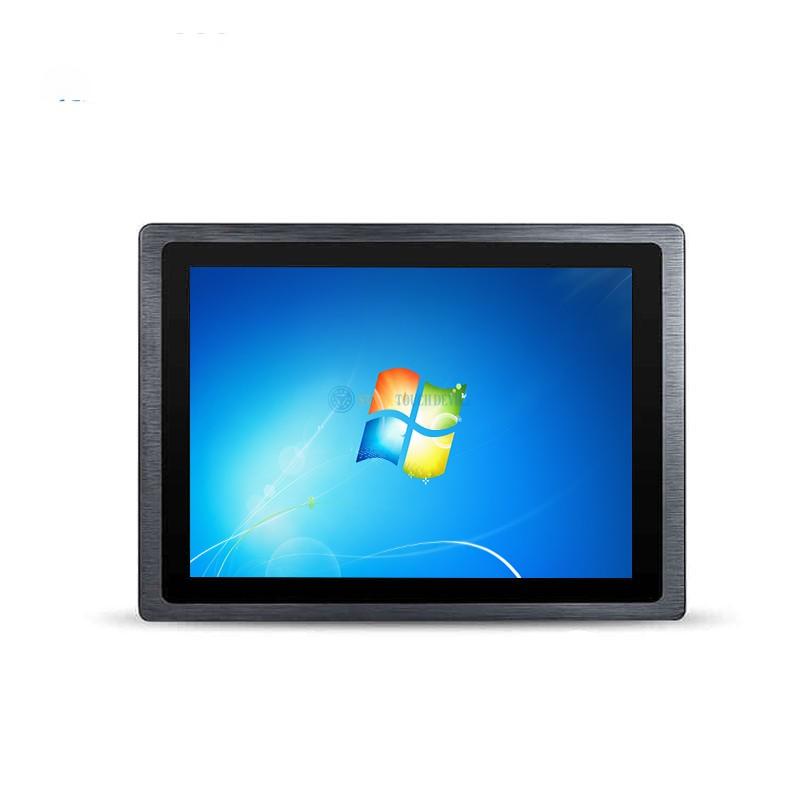

3mm Front Panel Industrial Touch Screen Monitor - IP65 Sealed, EMI Shielding

Available models in this series

This product page covers one product type. The series is available in the following sizes and configurations (published specifications):

These series industrial touch screen monitors, screen size from 8"to 21.5"optional, its ultra-thin 3mm front bezel makes them suitable for embedding into a variety of industrial equipment.

Industrial-grade IP65 panel mount LCD flat panel display is engineered with industrial-grade, waterproof LCD monitors, offering high performance in harsh environments where dust, water splashes, dirt, moisture, oil, and chemicals conditions. It can be configured with numerous optional features like a PCAP touch screen, a Resistive touch screen, optical bonding, extended operational temperature, and extended operational voltage capabilities. Also support special functional modules such as NFC/RFID card reading and scanning, cameras, printing, etc.

【Core Technology Advantages】 This 1000 nits industrial-grade touch monitor utilizes optical bonding technology, achieving 92% light transmittance and 178° viewing angles under direct sunlight. IP65 certification ensures reliable operation in harsh environments like oil refineries or frozen warehouses. 【Key Specifications】 - Brightness: 1000 cd/m² (Sunlight Visible) - Touch Technology: 10-point Projected Capacitive - Operating Temperature: -20°C to 60°C - Certifications: CE/FCC/RoHS, EMC Class B, IP65 - Interfaces: HDMI/VGA/USB 3.0 【Application Scenarios】 ▶ Gas Station Payment Terminals: Anti-glare surface resists oil stains ▶ Outdoor Retail Kiosks: 24/7 visibility in all weather conditions ▶ Warehouse Automation: Shock-resistant design for vibration environments 【Why Choose Us】 ✓ 3-year industrial warranty ✓ Custom bezel & mounting solutions ✓ Free technical support for system integration

Frequently asked questions — 3mm front panel industrial touch monitors

1. Which sizes are available in this series?

This series covers 8" to 21.5" industrial touch monitors with the same 3mm front-panel design, in black or silver. Sizes outside this range are available as customized models — tell us the cabinet opening and the resolution you need and we will confirm what can be supplied.

2. What does the 3mm front panel give me?

The front is a 3mm reinforced panel with a fully enclosed, dustproof design rated IP65, which is dust-tight and protected against water jets. It also provides EMI shielding, which is why this design is common in manufacturing plants, medical equipment and other electrically noisy environments. The chassis is die-cast aluminium alloy.

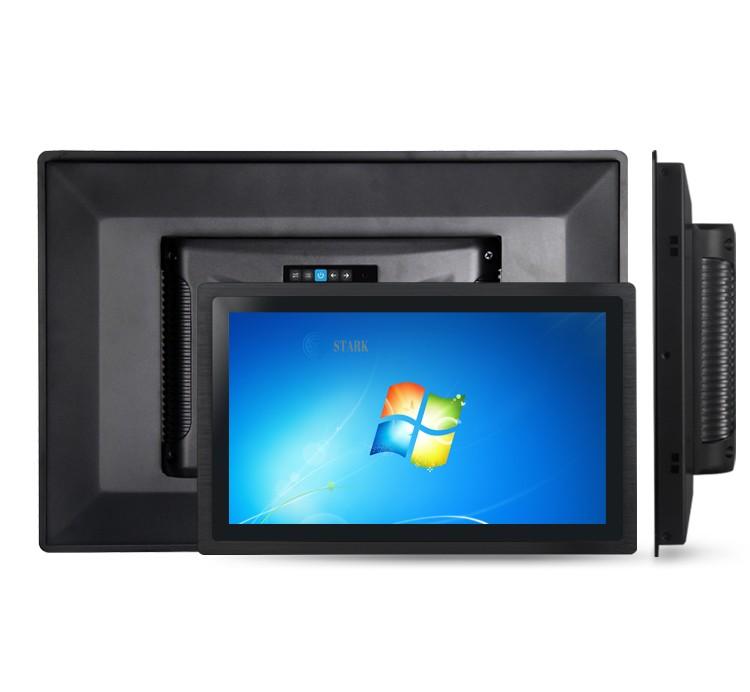

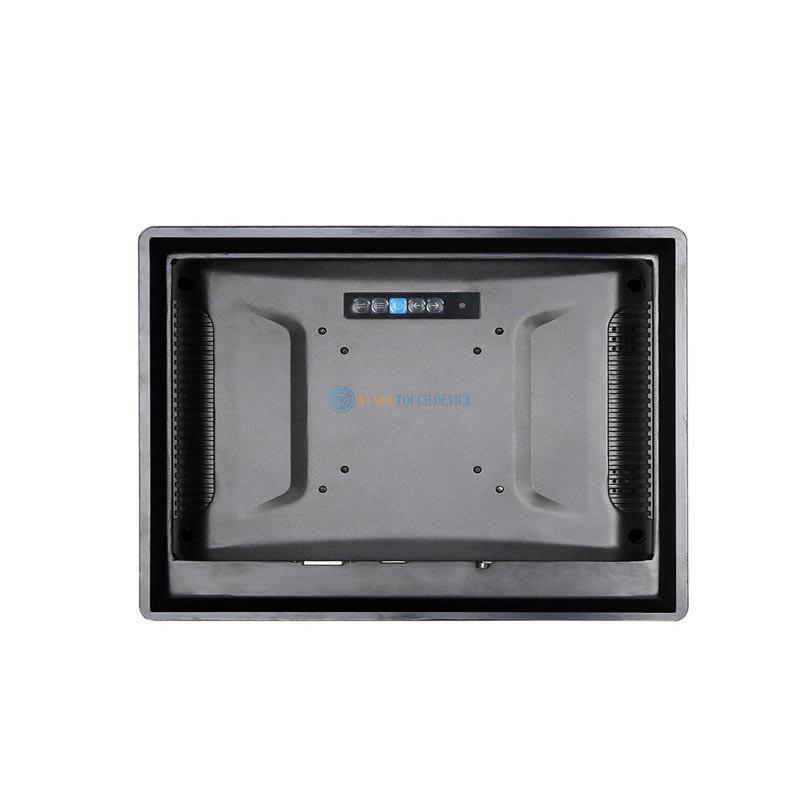

3. How is it mounted inside a cabinet or machine?

Both sides of the unit have built-in installation mounts, so the monitor can be embedded directly into a machine or cabinet front plate with a compact footprint. Open-frame and rear-mount versions are also available for equipment where the panel and driver board need to be fixed behind the front plate.

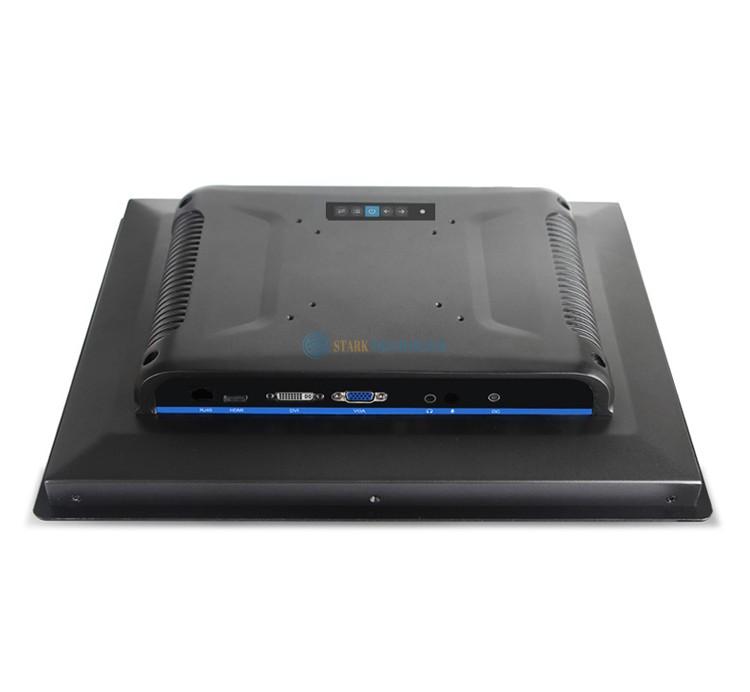

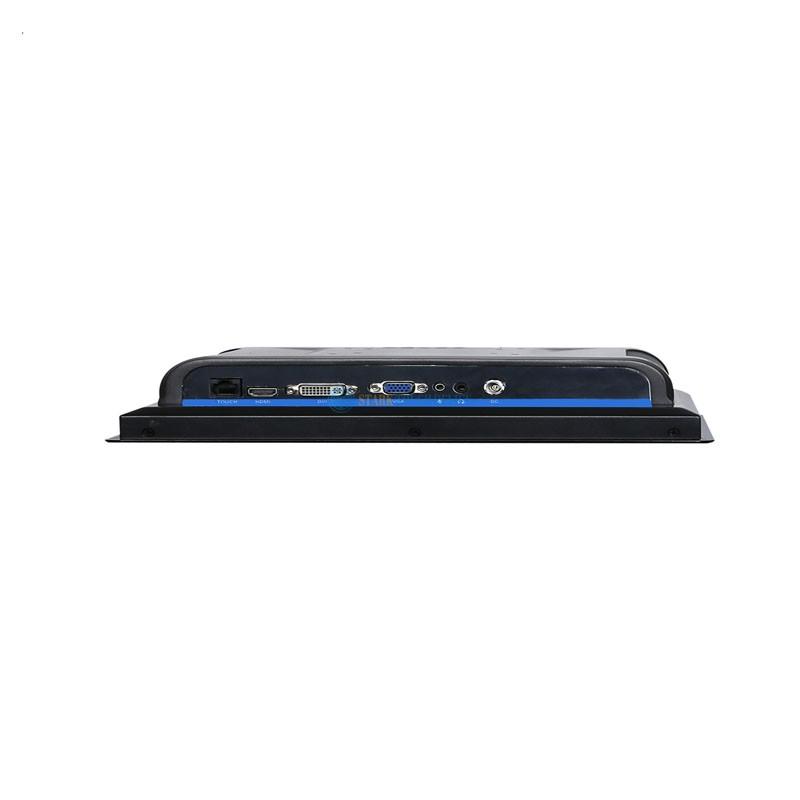

4. What interfaces does the monitor support?

Standard configurations provide HDMI, DisplayPort, DVI-D and Audio-in, and I/O can be expanded for integration with the host machine. If your system needs additional ports, serial or fieldbus connectivity, tell us the controller you use and we will confirm the interface configuration for that model.

5. Which touch technologies can I choose?

Projected capacitive (PCAP) 10-point multi-touch is our standard option, and resistive or non-touch versions are available on the same panel size. PCAP supports glove operation, which is common in industrial and outdoor use.

6. Can it be read in bright or outdoor light?

Yes. This series supports a high-brightness display for outdoor applications, and optical bonding is available as an option. In optical bonding the touch panel is laminated directly to the LCD instead of leaving an air gap, which removes internal reflections and raises contrast so the screen stays readable under strong ambient light. The right brightness and bonding combination is selected per model and installation site.

7. Which certifications can you provide?

We ship to Germany, the United States, Japan, India and Korea, and we provide the certification documents required by the target market — for example CE for the European Union, FCC for the United States, PSE/TELEC for Japan, BIS for India and KC for Korea — together with RoHS compliance documentation. Certificates are model-specific and in some cases end-product specific, so tell us your destination market and the model you are considering and we will confirm the applicable certificates for that combination.

8. What about warranty and long-term OEM supply?

Standard warranty is one year, and extended warranty is available on request to match your project or service contract. For OEM integration we keep the display configuration fixed for your product, record the approved golden sample and control batch-to-batch consistency; if a panel, touch panel or driver board reaches end of life we inform you in advance and propose a drop-in replacement so production is not interrupted. Spare-parts and replacement-unit options are available.
