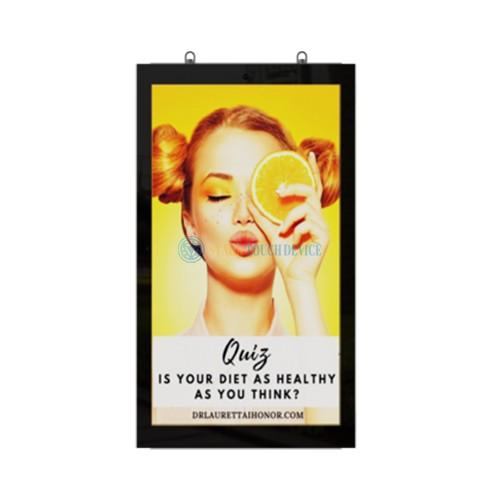

High-Brightness LED Wall Screen for Outdoor Advertising and Digital Signage

Product Dimensions: 67" (1200×1200 mm), 82" (1000×1800 mm), 88" (1000×2000 mm), 100" (1800×1800 mm)
Resolution: P3.125 (82" & 88"), P3.846 (67" & 100")
Brightness: 7000 nits
Average Power Consumption: 855W (100"), 380W (67"), 385W (82"), 425W (88")
Material: Aluminum
Weight: 140 kg (100"), 62 kg (67"), 120 kg (82"), 140 kg (88")
IP Rating: IP65
Viewing Angle: 160° Horizontal / 160° Vertical
Operating Temperat

INQUIRY

Product Details

Product Tags

Quick answer

High-Brightness LED Wall Screen for Outdoor Advertising and Digital Signage — the published specification for this product is: Product Dimensions: 67" (1200×1200 mm), 82" (1000×1800 mm), 88" (1000×2000 mm), 100" (1800×1800 mm); Resolution: P3.125 (82" & 88"), P3.846 (67" & 100"); Brightness: 7000 nits; Average Power Consumption: 855W (100"), 380W (67"), 385W (82"), 425W (88"); Material: Aluminum; Weight: 140 kg (100"), 62 kg (67"), 120 kg (82"), 140 kg (88"); IP Rating: IP65; Viewing Angle: 160° Horizontal / 160° Vertical. Buyers should confirm the exact configuration (size, brightness, interface and mounting) against the installation environment before ordering.

Published specification at a glance

Product Dimensions	Resolution	Brightness	Average Power Consumption	Material	Weight
67" (1200×1200 mm), 82" (1000×1800 mm), 88" (1000×2000 mm), 100" (1800×1800 mm)	P3.125 (82" & 88"), P3.846 (67" & 100")	7000 nits	855W (100"), 380W (67"), 385W (82"), 425W (88")	Aluminum	140 kg (100"), 62 kg (67"), 120 kg (82"), 140 kg (88")

Values above are taken from this product page.

What to verify before ordering

Confirm the exact model number and request its specification sheet.
Check the protection rating (IP) against the installation environment.
Confirm mounting method and enclosure compatibility.
Confirm the required interfaces and cable routing.
Confirm operating temperature range for the target market.
Confirm brightness (nits) against ambient light at the site.
Ask for sample, tooling and mass-production lead times.
Ask which certifications are available for the destination country.

Digital LED Wall Screen

Turnkey solution, ready for plug and play
Easy installations with rack on the back side
Narrow bezels, elegant apperance
Perfect finish with durable coating
Brightness level adjustable manually or automatically
Can work under all weathers

Size	Display Area W x H(mm)	Pixel Pitch	Brightness	Average Power Consumption	Material	Weight	IP Rate
100"	1800 x 1800	P3.846	7000nits	855W	Aluminum	140KG	IP65
67"	1200 x 1200	P3.846	7000nits	380W	Aluminum	62KG	IP65
82"	1000 x 1800	P3.125	7000nits	385W	Aluminum	120KG	IP65
88"	1000 x 2000	P3.846	7000nits	425W	Aluminum	140KG	IP65

Examples:

Product Description & Key Selling Points

Our High-Brightness LED Wall Screen is designed to deliver exceptional visual performance in outdoor environments. Featuring a brightness of 7000 nits, it ensures vibrant and clear content even under direct sunlight. The IP65 rating guarantees protection against dust and water, making it suitable for various weather conditions. With customizable sizes and pixel pitches, this screen offers flexibility to meet diverse advertising and signage needs.

Feature	Specification
Display Type	Full-Color LED
Resolution	P3.125 / P3.846
Brightness	7000 nits
Average Power Consumption	855W (100") / 380W (67") / 385W (82") / 425W (88")
Material	Aluminum
Weight	140 kg (100") / 62 kg (67") / 120 kg (82") / 140 kg (88")
IP Rating	IP65
Viewing Angle	160° Horizontal / 160° Vertical
Operating Temperature	-20°C to +50°C
Mounting Options	Wall-mounted

Applications & Customer Benefits

The High-Brightness LED Wall Screen is ideal for:

Outdoor Advertising: Deliver dynamic advertisements in high-traffic areas.
Digital Signage: Provide real-time information and promotions in public spaces.
Transportation Hubs: Display schedules and announcements in stations and airports.
Retail Environments: Enhance customer engagement with vibrant displays.

Benefits include:

High Brightness: Ensures visibility in direct sunlight.
Weather Resistance: Suitable for various outdoor conditions.
Customizable Sizes: Tailored to fit specific installation requirements.
Energy Efficiency: Designed to consume less power without compromising performance.

Frequently Asked Questions (FAQ)

Q1: What is the maximum brightness of the screen?
A1: The screen offers a brightness of 7000 nits, ensuring clear visibility even under direct sunlight.

Q2: Can the screen be customized to fit different installation sizes?
A2: Yes, the screen is available in various sizes and pixel pitches to meet specific requirements.

Q3: Is the screen suitable for outdoor use?
A3: Yes, the screen has an IP65 rating, making it resistant to dust and water, suitable for various weather conditions.

Q4: What is the average power consumption of the screen?
A4: The average power consumption varies by size: 855W for 100", 380W for 67", 385W for 82", and 425W for 88".

Frequently asked questions — High-Brightness LED Wall Screen for Outdoor Advertising and Digital Signage

1. What is this product?

Our High-Brightness LED Wall Screen offers a robust and weather-resistant solution for outdoor advertising and digital signage. With a brightness of 7000 nits and an IP65 rating, it ensures clear visibility in direct sunlight and harsh weather conditions. Available in various sizes and pixel pitches, this screen is ideal for public spaces, transportation hubs, and retail environments.

2. What are the key specifications?

Per the published specification sheet: resolution P3.125 (82" & 88"), P3.846 (67" & 100"); brightness 7000 nits.

3. Is it readable in bright ambient light?

The published brightness for this model is 7000 nits. Higher brightness improves outdoor readability, and where needed we combine it with optical bonding so the panel stays legible under strong ambient light; tell us the installation site and we will confirm the suitable configuration.

4. How is it installed?

The published installation/mounting information is: Wall-mounted. Custom frames and mounting brackets can be produced to match your cabinet or machine.

5. Can this display be customized for our project?

Yes. We work as an OEM/ODM display partner: the panel size, front glass, touch type, brightness, interfaces, mounting frame and connector positions can be adapted to your mechanical design, and we can integrate camera modules or extra functions into the same assembly. Send us your drawing or sample requirement and we will confirm feasibility.

6. What is the lead time, warranty and certification situation?

Samples are normally about 7 days and mass production about 20-30 days after deposit and final approval. Standard warranty is one year and extended warranty is available on request. We ship to Germany, the United States, Japan, India and Korea and provide the certification documents required by the target market (for example CE, FCC, PSE/TELEC, BIS, KC and RoHS). Certificates are model-specific, so tell us your market and model and we will confirm the applicable documents.

7. How do you keep supply stable for a product we integrate into our own equipment?

For OEM integration we keep the configuration fixed for your product, record the approved golden sample and control batch-to-batch consistency. If a panel, touch panel or driver board reaches end of life we inform you in advance and propose a drop-in replacement so production is not interrupted. Spare-parts and replacement-unit options are available.
