10.1″–21.5″ Industrial Capacitive Monitor | IP65 Front | Aircraft Aluminum

●Adopts to A+ grade TFT LCD for the industrial monitors.
●Variety of interfaces: VGA, HDMI, DVI, support I/O expansion.
●Multi-point capacitive touch screen, easy and accurate to operation, long service life.

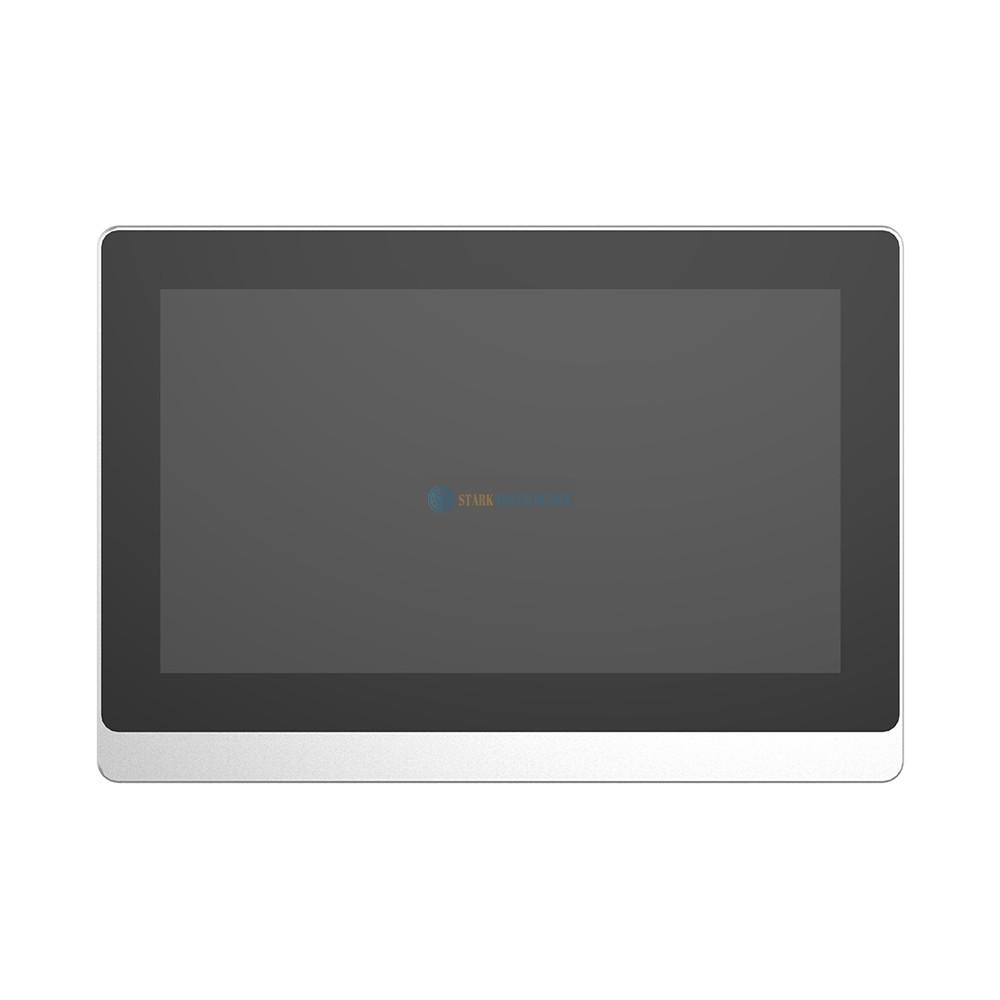

●True-flat panel monitor, easy to clean and maintain the front surface display with such edge-to-edge design.

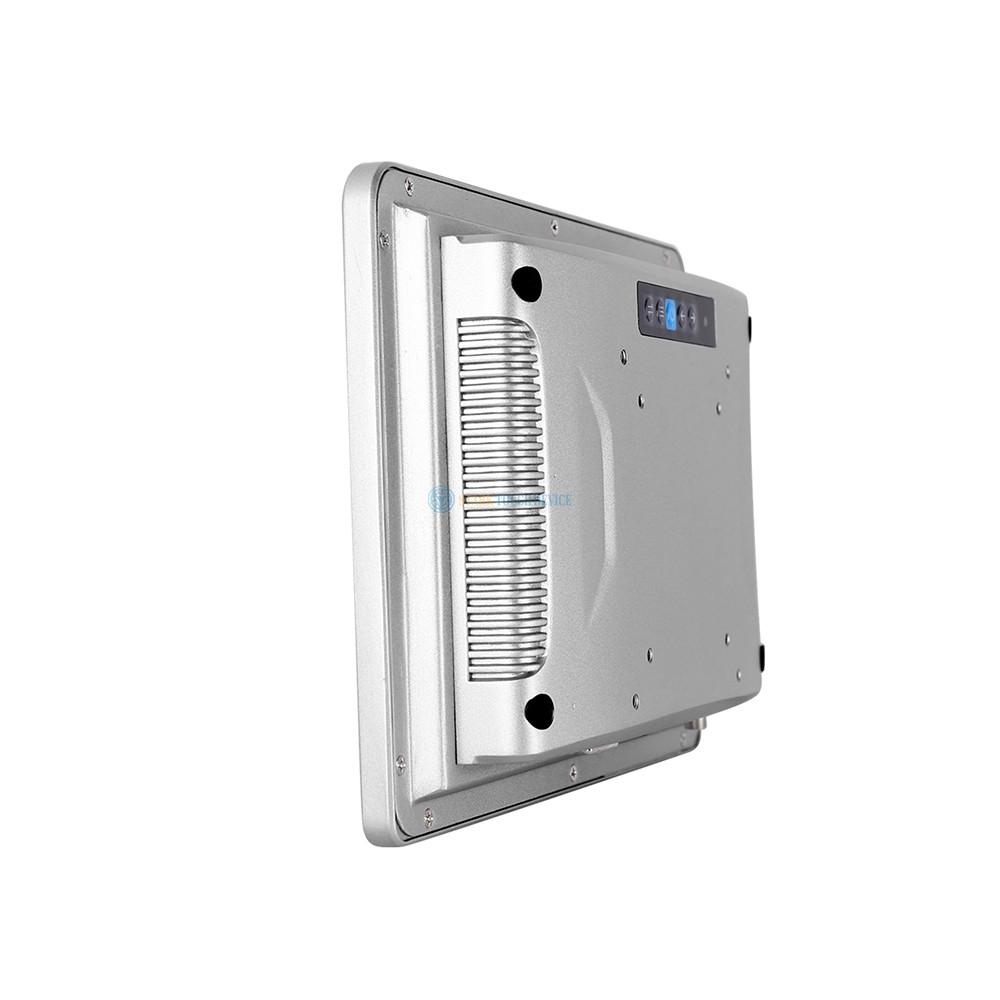

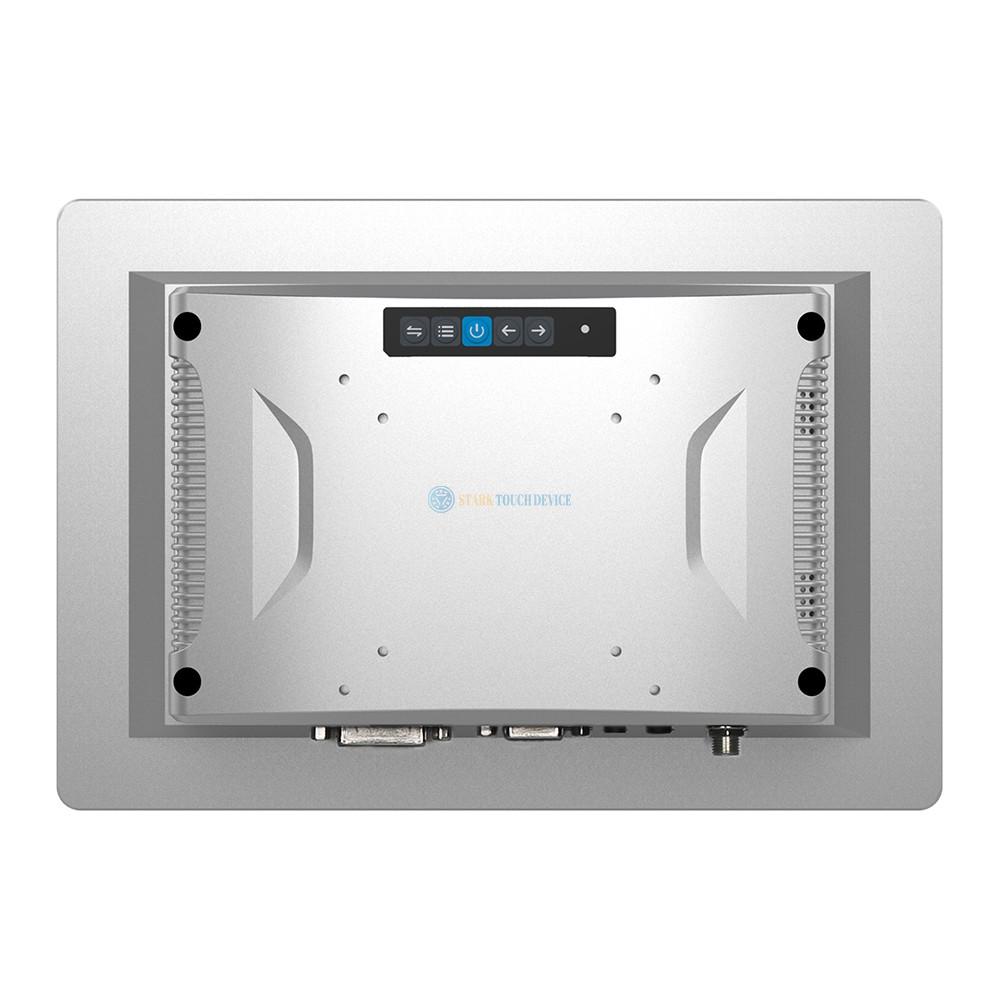

●This industrial monitor leaves installation holes on the rear of the monitor, to meet clients’ variety of installation methods.
●Fully-enclosed seamless front panel, IP65 rate

INQUIRY

Product Details

Product Tags

Quick answer

10.1″–21.5″ Industrial Capacitive Monitor | IP65 Front | Aircraft Aluminum — the published specification for this product is: ●Variety of interfaces: VGA, HDMI, DVI, support I/O expansion.. Buyers should confirm the exact configuration (size, brightness, interface and mounting) against the installation environment before ordering.

Published specification at a glance

●Variety of interfaces
VGA, HDMI, DVI, support I/O expansion.

Values above are taken from this product page.

What to verify before ordering

Confirm the exact model number and request its specification sheet.
Check the protection rating (IP) against the installation environment.
Confirm mounting method and enclosure compatibility.
Confirm the required interfaces and cable routing.
Confirm operating temperature range for the target market.
Confirm brightness (nits) against ambient light at the site.
Ask for sample, tooling and mass-production lead times.
Ask which certifications are available for the destination country.

Available models in this series

This product page covers one product type. The series is available in the following sizes and configurations (published specifications):

Model	Size	Resolution	Brightness	Touch	IP rating
STD101OFTMOB	10.1 inch	1280 × 800	1000 Nits High Brightness	—	—
STD104TMOB	10.4 inch	1024 x 768	1000 nits	—	—
STD121TPCOBOD	12 inch	1280 x 800	1000 Nits	Capacitive Touch (Optical Bonding)	—
STD153SCTPCOB	15 inch	—	—	—	—
STD156OFTMCAPOB	15.6 inch	—	1000 nits	Capacitive	—
STD156SSJ1900TPC	15.6 inch	—	High-Brightness	Capacitive	IP65
STD215I7TPCOB	21.5 inch	—	—	Capacitive touch	IP65
STD215SCMOB	21.5 inch	—	—	—	—

IP65 Industrial Capacitive Touch Screen Monitor

IP65 waterproof.jpg

IP65-rated Dustproof & Waterproof Protection

This 21.5" industrial monitor is designed with IP65-rated dustproof and waterproof protection, suitable for production workshops that require regular cleaning. For example, for food processing and chemical industries, cleaning becomes very easy. And also suitable for outdoor use, such as kiosks, smart parcel lockers.

Multi-Touch Capacitive Touchscreens

This monitor supports multi-point projective capacitive touch screens, The double glass design of the capacitive touch screen can not only protect the conductors and sensors but also prevent external environmental factors from affecting the touch screen. Even if the screen is dirty, dust, or oil stains, the capacitive touch screen can still accurately calculate the touch position.

Besides, our industrial LCD displays also support resistive touch screens and non-touch screens.

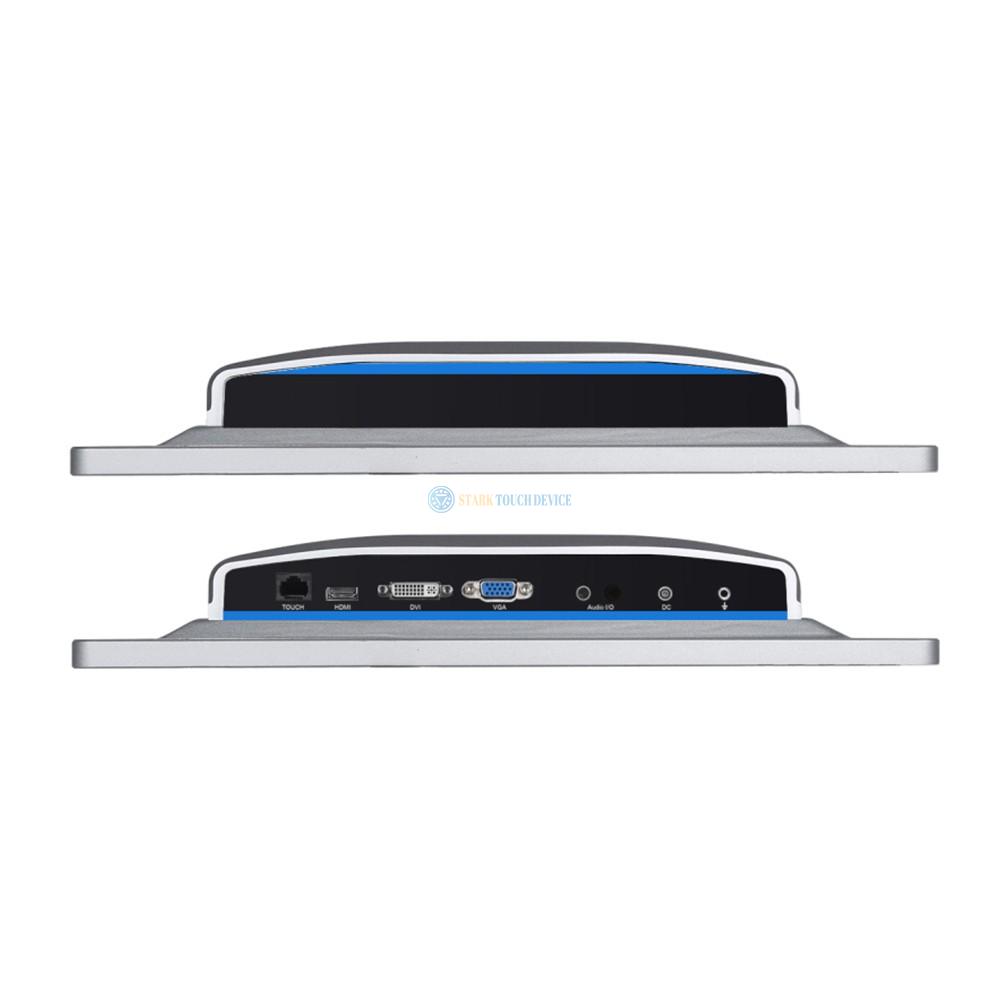

Abundant I/O Interfaces To Meet Different Applications

The interface of the industrial monitor determines the quality of image transmission. At present, common interfaces of Touch Think industrial monitor include HDMI, DP, DVI, VGA, and RJ45, and so on. And we support more customized interfaces.

Superior Anti-Electromagnetic Interference Performance

The industrial monitors have passed the EMI/EMC test, are suitably used in multi-environments, and have the capability for electromagnetic interference in the environment has a certain degree of immunity, namely high electromagnetic sensitivity.

Drive board.jpg Industrial Driver Board with Multiple Protection Design

Industrial-grade features design, presenting 24/7 stable performance, low power consumption, built-in anti-dropping interface, with anti-electromagnetic interference, anti-static, anti-surge, and other characteristics.


Square Screen Displays

We supply multi-LCD displays available. Our square screen displays with 4:3/5:4 aspect ratio including 10.4", 12", 15", 17", and 19".


Widescreen Industrial LCD Displays

Our widescreen displays with TFT-LCD panels including 10.1", 11.6", 15.6", 17.3", 19.1", and 21.5".

Applications:

Digital Signage tablet

Time attendance solution

Dormitory solution

Access control solution

Visitor management solution

Guard patrol solution

Healthcare solutions

Industrial automation Projects

Mobile computing

Embedded system

Smart energy

Information kiosks

Size:10.1~12inch

Product	Size	Resolution	I/O	Expansion
Flat Panel Industrial Grade LCD Monitor 12 Inch	12″	1024*768	DVI、HDMI、VGA、RJ45	YES
11.6″ Industrial Monitor Touch Screen TFT Displays Capacitive	11.6″	1920*1080	DVI、HDMI、VGA、RJ45	YES
Industrial Capacitive Touch Screen Display Flat Panel 10.4 Inch	10.4″	1024*768	DVI、HDMI、VGA	YES
Industrial Monitor Capacitive Multi Touch Screen 10.1 Inch	10.1″	1280*800	DVI、HDMI、VGA	YES

Size:15~17.3inch

Product	Size	Resolution	I/O	Expansion
Industrial LCD Display Monitor IP65 Dustproof Waterproof 17.3 Inch Outdoor Displays	17.3″	1920*1080	DVI、HDMI、VGA	YES
Multi Touch Capacitive Touch Screen Monitor Waterproof 17 Inch	17″	1280*1024	DVI、HDMI、VGA	YES
Touch Screen Computer Monitor Industrial Display Flat Panel 15.6″	15.6″	1920*1080	DVI、HDMI、VGA、RJ45	YES
Flat Panel Capacitive Touch Screen Monitor 15 Inch	15″	1024*768	DVI、HDMI、VGA、RJ45	YES

Size:19~21.5inch

Product	Size	Resolution	I/O	Expansion
True Flat Capacitive Touch Screen Industrial LCD Monitor IP65 21.5 inch	21.5″	1920*1080	DVI, HDMI, VGA, DC2.1, RJ45	YES
Industrial Monitors With Touch Screens For Workstations 19.1″	19.1″	1440*900	DVI、HDMI、VGA	YES
Sunlight Readable Industrial LCD Monitor 19″	19	1280*1024	DVI、HDMI、VGA	YES

Q: How to clean the screen properly?

A: Use 70% isopropyl alcohol with microfiber cloth. Avoid abrasive cleaners.

Q: Does it work with Siemens PLC?

A: Yes, pre-tested with Profinet protocol. Test reports available.

Q: What is the vibration resistance?

A: 5G vibration resistance (10-500Hz) per IEC 60068-2-6 standard.

Q: Can I use it in freezing temperatures?

A: Standard model works at -30°C. Optional -40°C version available.

Frequently asked questions — 10.1"–21.5" industrial capacitive monitors

1. Which sizes are available in this series?

This series covers 10.1" to 21.5" industrial capacitive monitors with the same mechanical and electrical design, so equipment makers can use one platform across several products. Sizes outside this range are available as customized models — tell us the cabinet opening and the resolution you need and we will confirm what can be supplied.

2. Is the front panel waterproof?

Yes. The front is a fully enclosed, seamless panel rated IP65, which is dust-tight and protected against water jets, so the screen can be wiped down or hosed in production and outdoor environments. The housing is aircraft-grade aluminium. Higher protection levels (IP66, or IP67 for temporary immersion) can be engineered for specific projects.

3. Can it be read in bright or outdoor light?

For semi-outdoor and outdoor installations we combine a high-brightness backlight with optical bonding, where the touch panel is laminated directly to the LCD instead of leaving an air gap. Optical bonding removes internal reflections and raises contrast, so the display stays readable under strong ambient light. The right brightness and bonding combination is selected per model and installation site.

4. What interfaces does the monitor support?

Standard configurations provide VGA, HDMI and DVI inputs, and I/O can be expanded for integration with the host machine. If your system needs additional ports, serial or fieldbus connectivity, tell us the controller you use and we will confirm the interface configuration for that model.

5. Does it support multi-touch, and can it be used with gloves?

Yes. Multi-point projected capacitive (PCAP) touch is the standard touch option, and this model supports glove operation, which is common in industrial and outdoor kiosk use. Resistive and non-touch versions are also available for the same panel size.

6. What operating temperature range can be supported?

We use industrial-grade wide-temperature panels and components together with industrial driver boards, so the monitor keeps working outside a normal office environment. The exact operating range depends on the model and on your enclosure and duty cycle — send us your environment conditions and we will confirm the applicable range for the model you choose.

7. Which certifications can you provide?

We ship to Germany, the United States, Japan, India and Korea, and we provide the certification documents required by the target market — for example CE for the European Union, FCC for the United States, PSE/TELEC for Japan, BIS for India and KC for Korea — together with RoHS compliance documentation. Certificates are model-specific and in some cases end-product specific, so tell us your destination market and the model you are considering and we will confirm the applicable certificates for that combination.

8. What about warranty and long-term OEM supply?

Standard warranty is one year, and extended warranty is available on request to match your project or service contract. For OEM integration we keep the display configuration fixed for your product, record the approved golden sample and control batch-to-batch consistency; if a panel, touch panel or driver board reaches end of life we inform you in advance and propose a drop-in replacement so production is not interrupted. Spare-parts and replacement-unit options are available.
