Stainless Steel Waterproof All-in-One Touch PC | IP67 | Sanitary Grade

Color:silvery/black
Size:6.5~27inches(>27inches,customizable)
Type: outdoor use, cabinet, wall embedded external
Specification: 6.5-27 inch
Material: Platinum alloy/stainless steel/cold plate

INQUIRY

Product Details

Product Tags

IP rate	Completed IP66/IP67
Size	6.5″/7″/8″/9.7″/10.1″/10.4″/12.1″/14.1″/15″/15.6″ /17″/17.3″/18.5″/19″/21.5″/22″/23″/23.6″/24″/27″(customizable)
Panel type	TFT-LCD
Paenl brand	Toshiba/Sharp/LG/Samsung/AUO/CMO
Industrial grade	A
Resolution	800×600/1024×600/1024×768/1280×800/1336×768/1280×1024/ 1440×900/1680×1050/1920×1080/2560×1440/3840×2160
Display scale	4:3 5:4 16:9 16:10 17:10 21:9
Contrast Ratio	700:1 1000:1 1200:1
Display point spacing	Depending on the size of the liquid crystal
Display color	16.7M
Display Mode	TN、IPS（S-IPS E-IPS H-IPS）、VA
View angle	L/R:165°、U/D:155°(optional-full view angle L/R:178°)
Backlight Brightness	200~300cd/m²（400~1500cd/m²-customizable）
Scanning frequency	60HZ
Response time	7ms
Display color gamut	≥70%
Backlighting	LED
Working life	≥50000H
Touch technology	Capacitance/resistance
Touch structure	G+G G+I G+F
Surface treatment	AR AG AF
Surface hardness	4H/5H(Other hardness can be customized)
Strength of touch	Touch of resistance30g-75g
Touch life	35 million times/50 million times
Touch protocol	USB/l2C/R232/RS485
Touch interface	USB-A/B RJ45 DB9
Chipset	Realtek/Mstar

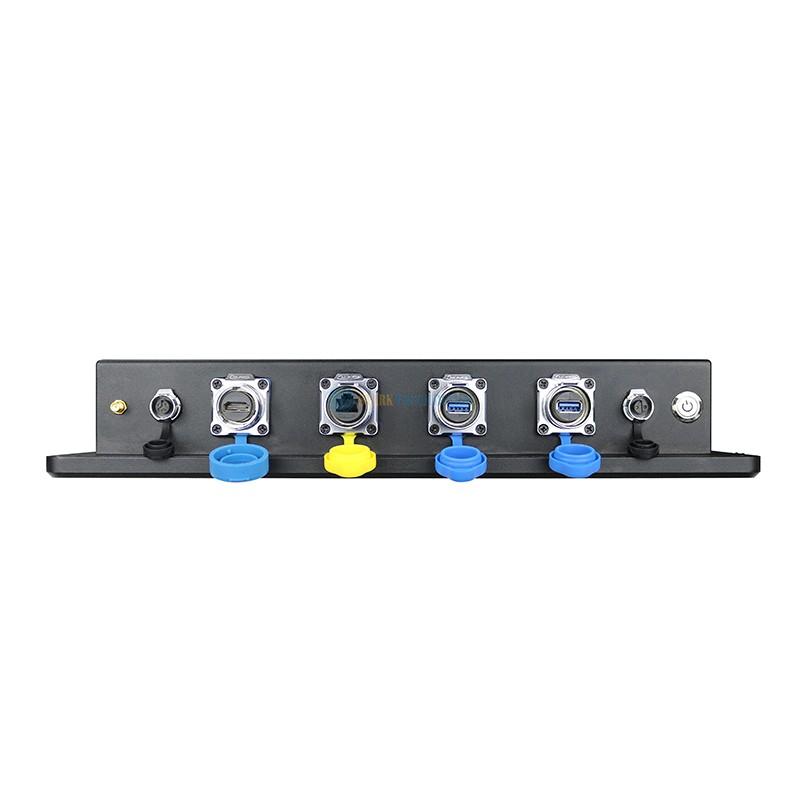

External interface	VGA DVI HDMI Optional (DP、CVBS、YPbPr、BNC、AHD) Dedicated IP67 waterproof terminals
Audio	loudspeaker 8Ω2W(optional)
Power input	DC-IN 12V 4A Dedicated IP67 waterproof terminals
Surface frame material	Aluminum alloy/stainless steel
Back cover material	Aluminum plate, cold-rolled plates , stainless steel
Treatment process	Oxidized wire drawing Spray powder and oil

highbrightness pc.jpg

Stainless steel all-in-one machine.jpg

Stainless steel all-in-one waterproof touch PC

Waterproof and dustproof grade IP66/IP67, suitable for pure outdoor environment.

Anti-explosion/anti-vibration/anti-electromagnetic interference/anti-ESD

Dustproof and waterproof grade IP66/67

It’s suitable for pure outdoor environment, wet environment, dust environment, high Kia and other industrial environment

	The products are explosion-proof, anti-vibration, anti-electromagnetic interference, anti-ESD, in line with LVD and EMC
	Wide temperature standard, no fear of harsh environment (working temperature can be customized -20~70℃)
	Standard 250Cd/m² brightness, can be customized 400-1500cd/m², visible under the sun

Q1: Why use stainless steel for industrial PCs?

A: 316L stainless resists corrosion/chemicals, ideal for washdown environments like food processing.

Q2: Can it withstand high-pressure cleaning?

A: Yes, IP67 rating supports 80°C water jets at 100 bar pressure.

Q3: What certifications are critical for food industry?

A: EHEDG/3-A compliant design, with optional NSF certification.

Q4: Is the surface bacteria-resistant?

A: Electrolytic polishing minimizes micro-pores where bacteria grow.

Frequently asked questions — stainless steel waterproof all-in-one touch panel PCs

1. Why choose a stainless steel housing instead of aluminium?

Stainless steel is chosen where corrosion resistance matters — food processing, chemical plants, pharmaceutical areas and wash-down zones — because it withstands repeated cleaning and aggressive atmospheres better than painted or anodised surfaces. The front is a sealed panel rated for water jets, so the unit can be cleaned in place.

2. What does "all-in-one" mean for my installation?

An all-in-one panel PC integrates the display, touch screen and computer in a single sealed unit, so no separate box PC, monitor cable or ventilation opening is needed at the machine. That simplifies wash-down areas, because there is no separate enclosure that has to be protected from water and dust.

3. Can it be read in bright or outdoor light?

For semi-outdoor and outdoor installations we combine a high-brightness backlight with optical bonding, where the touch panel is laminated directly to the LCD instead of leaving an air gap. Optical bonding removes internal reflections and raises contrast, so the screen stays readable under strong ambient light. The brightness and bonding combination is selected per model and installation site.

4. What operating temperature range can be supported?

We use industrial-grade wide-temperature panels and components together with industrial driver boards, so the display keeps working outside a normal office environment. The exact operating range depends on the model and on your enclosure and duty cycle — send us your environment conditions and we will confirm the applicable range for the model you choose.

5. Which certifications can you provide?

We ship to Germany, the United States, Japan, India and Korea, and we provide the certification documents required by the target market — for example CE for the European Union, FCC for the United States, PSE/TELEC for Japan, BIS for India and KC for Korea — together with RoHS compliance documentation. Certificates are model-specific and in some cases end-product specific, so tell us your destination market and the model you are considering and we will confirm the applicable certificates for that combination.

6. What about warranty and long-term OEM supply?

Standard warranty is one year, and extended warranty is available on request to match your project or service contract. For OEM integration we keep the display configuration fixed for your product, record the approved golden sample and control batch-to-batch consistency; if a panel, touch panel or driver board reaches end of life we inform you in advance and propose a drop-in replacement so production is not interrupted. Spare-parts and replacement-unit options are available.
