25-inch Industrial Optical Bonding Bar Display Custom Model

Screen Size: 25 inches
Touch Type: To be confirmed
Brightness: To be confirmed
Optical Bonding: Yes; exact process and cover-lens details to be confirmed
Form Factor: Bar Display
Type: Industrial Touch Monitor

INQUIRY

Product Details

Product Tags

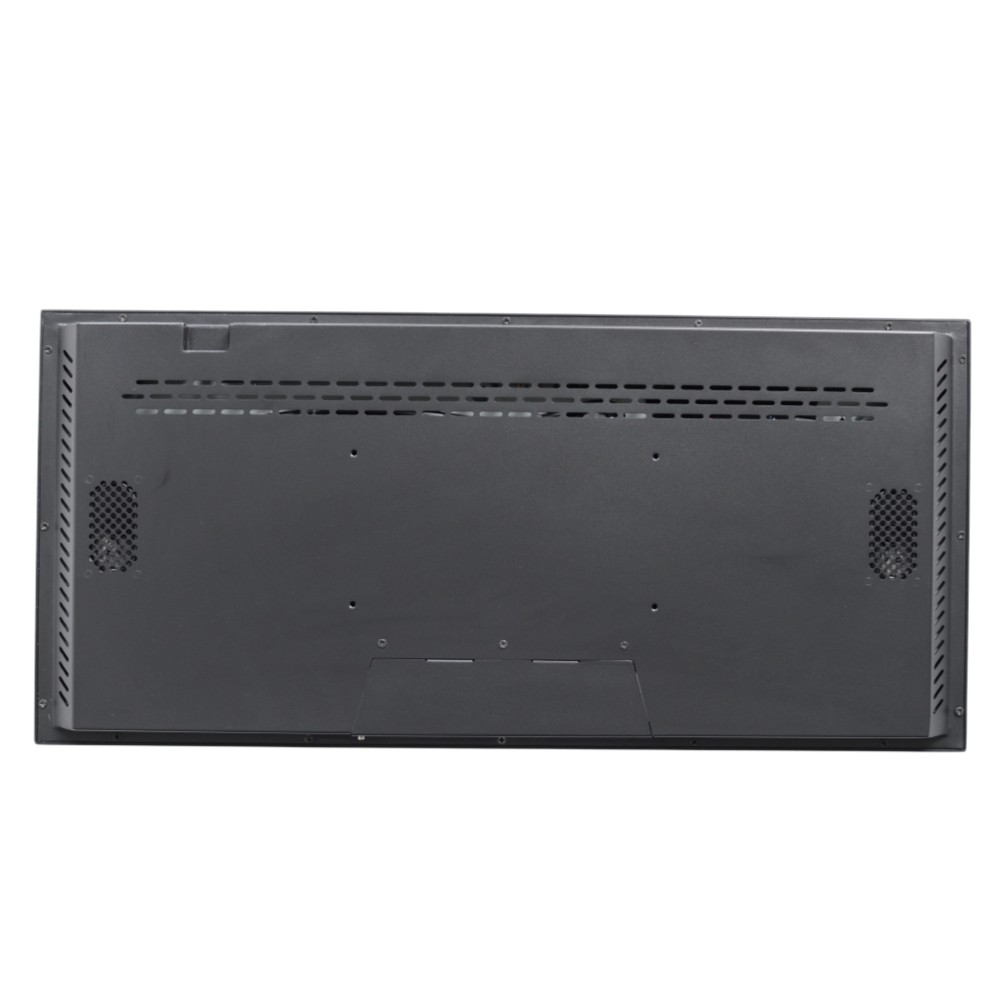

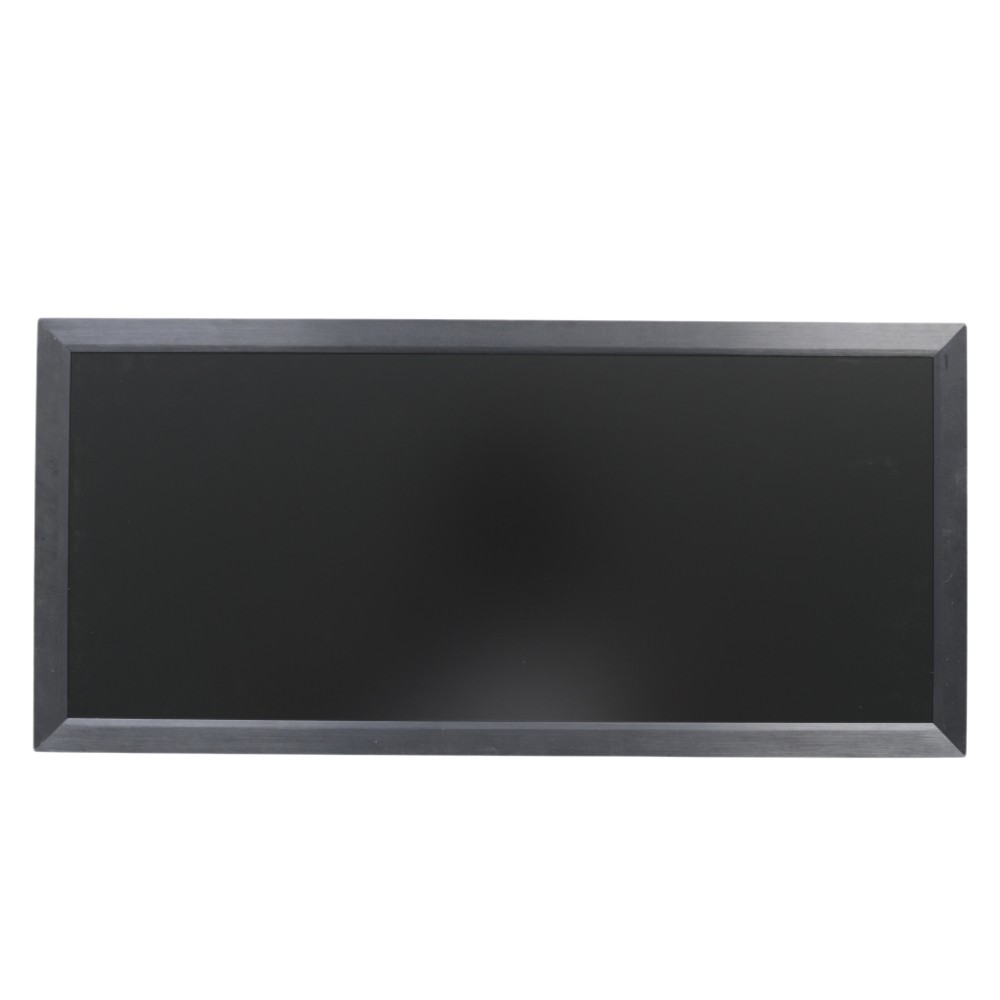

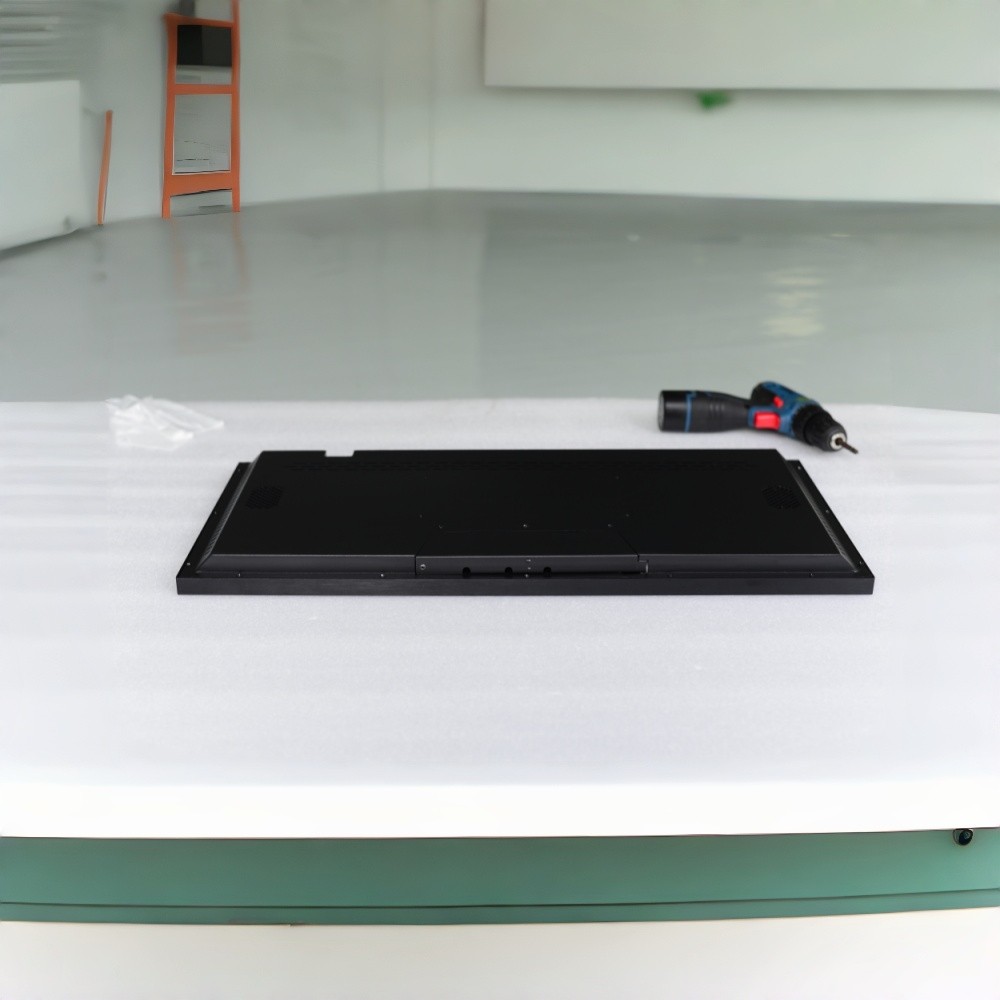

25-inch Industrial Optical Bonding Bar Display

This custom 25-inch industrial display features optical bonding technology to reduce reflections and improve visibility in bright environments. The bar-shaped design with a rugged metal enclosure makes it ideal for embedded installations and custom control panels.

Key Features

Optical Bonding: Enhanced screen clarity and durability.
Bar Form Factor: Customizable 25-inch widescreen layout.
Rugged Build: Metal casing with ventilation slots for thermal management.

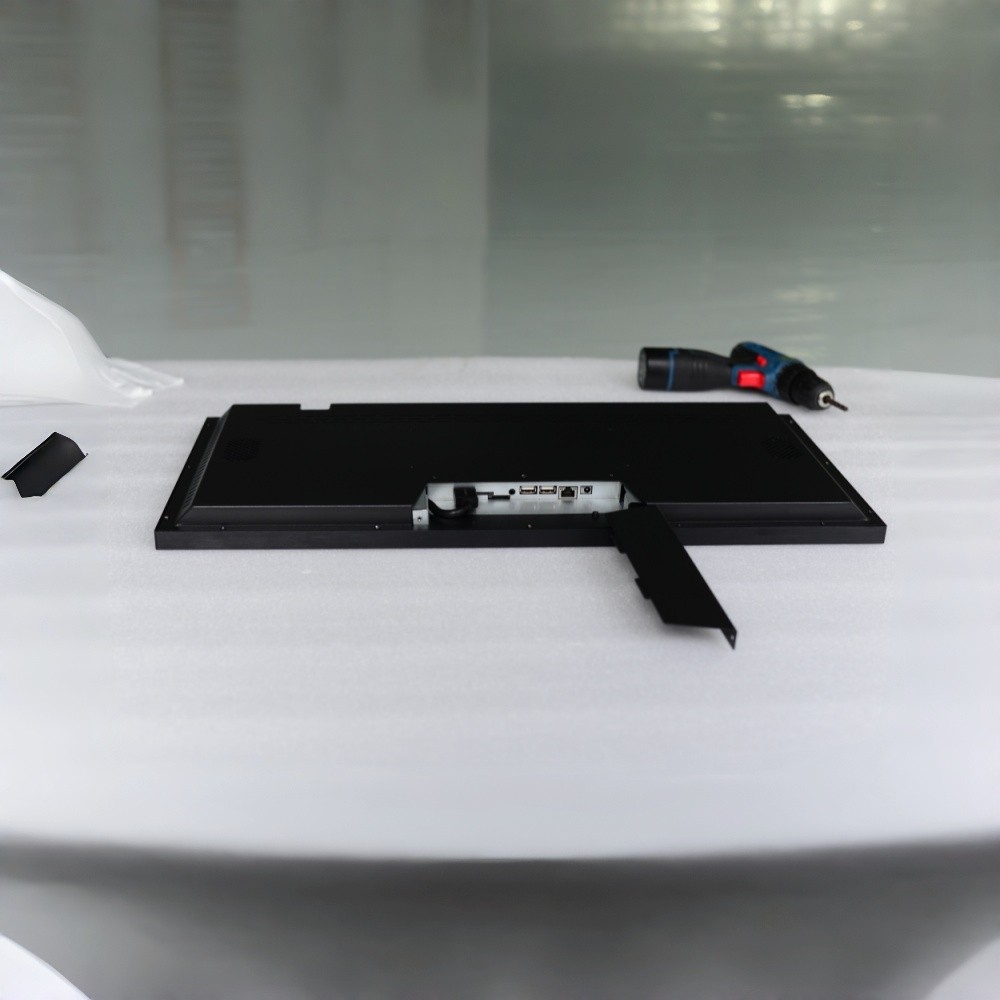

Connectivity: Rear I/O panel featuring HDMI, USB, and audio ports.
Flexible Mounting: Supports VESA mounting and embedded integration.

Applications

Suitable for industrial automation, custom kiosks, medical devices, and specialized digital signage requiring a high-clarity, durable display solution.

Touch Screen Monitors

Boasting a sturdy aluminum alloy/stainless steel body and an IP65-rated front panel, this device operates reliably in extreme temperatures from -30°C to 80°C. It supports wide-voltage input and various industrial interfaces, while remaining compatible with resistive, capacitive, and infrared touch technologies. Optional functional modules are available for enhanced flexibility. Certified for vibration and interference resistance, it ensures 24/7 continuous operation and long-term reliability in production line environments.

Product Description

Product Name: 25-inch Industrial Optical Bonding Bar Display Custom Model

Brand / Manufacturer: Stark Touch Device / OEM / ODM

Our products feature AG coating that can effectively prevent glare. Equipped with dual HDMI, DVI and VGA interfaces, they are convenient for users to choose according to project requirements. The 2K high-definition monitor screen delivers delicate picture quality. Optical bonding between the touch screen and LCD module makes the image more realistic and improves viewing performance.

Key Features

✓

Industrial-Grade Ruggedness

Constructed with an aluminum alloy or stainless steel chassis, it offers excellent resistance to vibration and shock. The front panel boasts an IP65 rating for effective protection against dust and water ingress, ensuring reliable operation in harsh industrial settings.

✓

Extensive Environmental Adaptability

Customizable to operate in a wide temperature range from -30°C to 80°C. Features a wide-voltage power input (12~36V DC or redundant options) to handle unstable voltage conditions in the field.

✓

Optimized Touch Performance & Display

Equipped with high-brightness, anti-glare screens for clear visibility even under strong lighting. Multiple touch options, including Infrared, Resistive, and Capacitive, are available to suit various application needs.

✓

Rich Connectivity & Modular Expansion

Comes standard with rich industrial interfaces like RS232/485 and CAN bus for PLC communication, and supports Power over Ethernet (PoE). Offers flexible modular expansion with optional add-ons such as RFID readers, cameras, and barcode scanners.

✓

High Reliability & Long Service Life

Designed for 24/7 continuous operation. The industrial-grade LED backlight ensures a long lifespan of ≥30,000 hours.

✓

Long-Term Supply Assurance

We guarantee a minimum 5-year support period for key components after end-of-life, mitigating the risk of production line disruptions and protecting your investment.

LCD Display	Resolution	Aspect Ratio	Touch Screen Type
7 inch	1024 × 600	16:9	Capacitive / Resistive / Non-touch Options
8 inch	1024 × 768	4:3	Capacitive / Resistive / Non-touch Options
10.1 inch	1280 × 800	16:10	Capacitive / Resistive / Non-touch Options
10.4 inch	1024 × 768	4:3	Capacitive / Resistive / Non-touch Options
11.6 inch	1920 × 1080	16:9	Capacitive / Resistive / Non-touch Options
12 inch	1024 × 768	4:3	Capacitive / Resistive / Non-touch Options
12.1 inch	1280 × 800	16:10	Capacitive / Resistive / Non-touch Options
13.3 inch	1920 × 1080	16:9	Capacitive / Resistive / Non-touch Options
15 inch	1024 × 768	4:3	Capacitive / Resistive / Non-touch Options
15.6 inch	1920 × 1080	16:9	Capacitive / Resistive / Non-touch Options
17 inch	1280 × 1024	5:4	Capacitive / Resistive / Non-touch Options
17.3 inch	1920 × 1080	16:9	Capacitive / Resistive / Non-touch Options
18.5 inch	1920 × 1080	16:9	Capacitive / Resistive / Non-touch Options
19 inch	1280 × 1024	5:4	Capacitive / Resistive / Non-touch Options
19.1 inch	1440 × 900	16:10	Capacitive / Resistive / Non-touch Options
21.5 inch	1920 × 1080	16:9	Capacitive / Resistive / Non-touch Options
23.8 inch	1920 × 1080	16:9	Capacitive / Resistive / Non-touch Options
25 inch	2560 × 1080	21:9	Capacitive / Resistive / Non-touch Options
27 inch	1920 × 1080	16:9	Capacitive / Resistive / Non-touch Options
32 inch	1920 × 1080	16:9	Capacitive / Resistive / Non-touch Options
43 inch	1920 × 1080	16:9	Capacitive / Resistive / Non-touch Options
55 inch	1920 × 1080	16:9	Capacitive / Resistive / Non-touch Options

More custom options are available. Feel free to contact our sales team.

Certifications & Compliance

As an OEM/ODM manufacturer, our products are designed and manufactured to comply with CE, FCC and RoHS requirements. Formal certification is arranged to match the market a project ships into, rather than applying one fixed certificate to every configuration. On request we can prepare and submit the following, together with the required test reports and documentation:

Destination market	Scheme we can prepare
European Union / UK	CE / UKCA
United States	FCC
Materials & hazardous substances	RoHS / REACH documentation
China	CCC
Japan / Korea	PSE / KC
Australia / New Zealand	RCM
Eurasian Customs Union	EAC

Please tell us the destination market and the certificate you need when requesting a quote; we will confirm the applicable scope, the extra cost and the lead time. Where the scheme allows, the certificate can be issued in the ordering brand's name.
