External Embedded Capacitive Touch Monitor | IP65 Waterproof | Machine-Mountable Design

Size 7~21.5inch optional
Thin/beautiful/heat
Fanless design
IP65 dustproof and waterproof
Support to run all day
Aluminum body
EMC compatibility
3 years warranty

INQUIRY

Product Details

Product Tags

Quick answer

External Embedded Capacitive Touch Monitor | IP65 Waterproof | Machine-Mountable Design — the published specification for this product is: name: External Embedded Capacitive Touch Monitor | IP65 Waterproof | Machine-Mountable Design; title: External Embedded Touch Monitor | IP65 Waterproof & Machine-Mountable | OEM Supplier; description: External embedded capacitive touch monitor designed for machine integration. IP65 waterproof, 10-point multi-touch, and customizable mounting solutions. OEM/ODM services available.; tags: HMI display,capacitive touch panel,external monitor,industrial display. Buyers should confirm the exact configuration (size, brightness, interface and mounting) against the installation environment before ordering.

Published specification at a glance

name	title	description	tags
External Embedded Capacitive Touch Monitor \| IP65 Waterproof \| Machine-Mountable Design	External Embedded Touch Monitor \| IP65 Waterproof & Machine-Mountable \| OEM Supplier	External embedded capacitive touch monitor designed for machine integration. IP65 waterproof, 10-point multi-touch, and customizable mounting solutions. OEM/ODM services available.	HMI display,capacitive touch panel,external monitor,industrial display

Values above are taken from this product page.

What to verify before ordering

Confirm the exact model number and request its specification sheet.
Check the protection rating (IP) against the installation environment.
Confirm mounting method and enclosure compatibility.
Confirm the required interfaces and cable routing.
Confirm operating temperature range for the target market.
Confirm brightness (nits) against ambient light at the site.
Ask for sample, tooling and mass-production lead times.
Ask which certifications are available for the destination country.

Available models in this series

This product page covers one product type. The series is available in the following sizes and configurations (published specifications):

Model	Size	Resolution	Brightness	Touch	IP rating
STD101OFTMOB	10.1 inch	1280 × 800	1000 Nits High Brightness	—	—
STD104TMOB	10.4 inch	1024 x 768	1000 nits	—	—
STD215I7TPCOB	21.5 inch	—	—	Capacitive touch	IP65
STD215SCMOB	21.5 inch	—	—	—	—

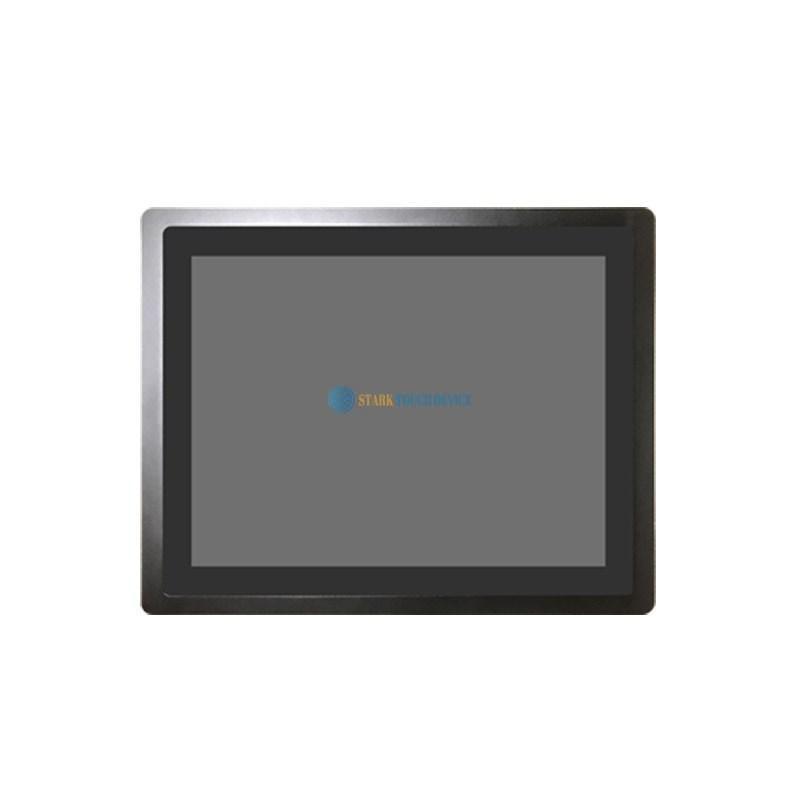

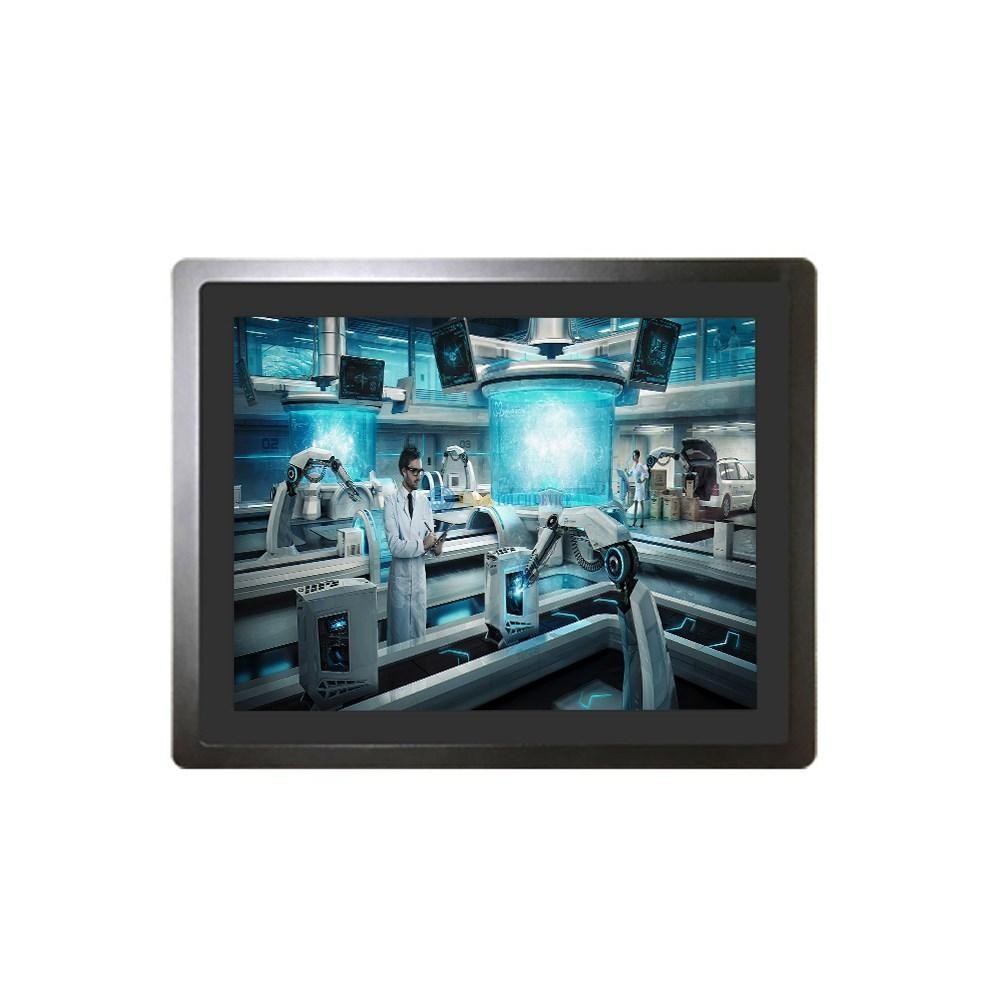

External Embedded Capacitive Touch monitor new design

Military level brand manufacturing.jpg External Embedded Capacitive Touch monitor new design.jpg

Product Application

Fully enclosed dust-proof, surface IP65 waterproof, driven by industrial boards, anti-static, anti-interference characteristics.

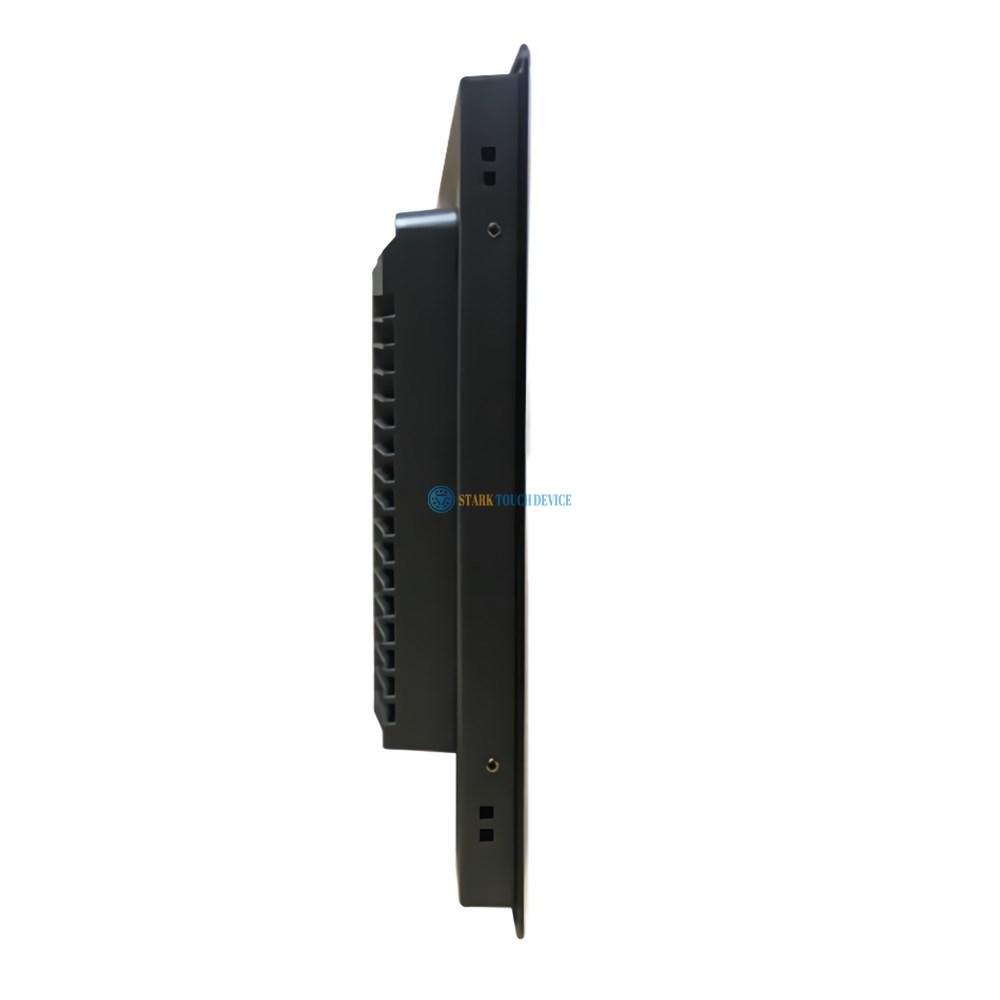

Aluminum alloy structure, the whole machine die-casting one-piece molding, exquisite technology, mm ultra-thin front panel, IP-level dustproof and waterproof, suitable for external embedded cabinet installation, tight fit.

Touch technology:(Optional) Non-touch /capacitive /resistive /infrared touch

Standard size	7-21.5 inches (other sizes can be customized)
Panel type	Industrial screen
Brightness	300～400cd/㎡，can be upgraded 800～1500cd/㎡
Point spacing	0.26mm
Contrast ratio	1900/2/10/ 16:01:00
Viewing angle	160℃/160℃,Customizable 178° full view
Capacitive touch lifetime	≥ 50 million times, competitors usually rough say’unlimited’
Resistive touch lifetime	≥ 35 million times,competitors usually rough say’unlimited’
Infrared Touch lifetime	≥ 50 million times,competitors usually rough say’unlimited’
Power supply	AC 100-240V 50/60HZ
Power consumption	≤50W
System	·Windows/Windows/Linux/ ·Android 7.1/10
Processor	·NT68770UFG display driver board, i3/i5/i7, ·A40/RK3288/RK3399/RK3568/RK3588
Memory	·2G/4G/8G/16G DDR3 ·1G/2G/4G/8G DDR3L
Storage	·32G/64G/128G/256G SSD,500G/1T/2T/ HDD Optional ·8G/16G/32G/64G/ eMMc
Display Chips	·Integrated HD Graphic display core ·Mail 400 MP2
WIFI/BT	_
Network Support	·High-speed network port ·Wireless WIFI ·Optional Bluetooth
Adaptable temperature	Operating temperature: -20°C to 60°C Storage temperature: -40°C to 80°C
Adaptation to humidity	20%～9% (relative humidity without condensation)
Power on automatically	support
Case color	Standard black, optional silver

FAQ:

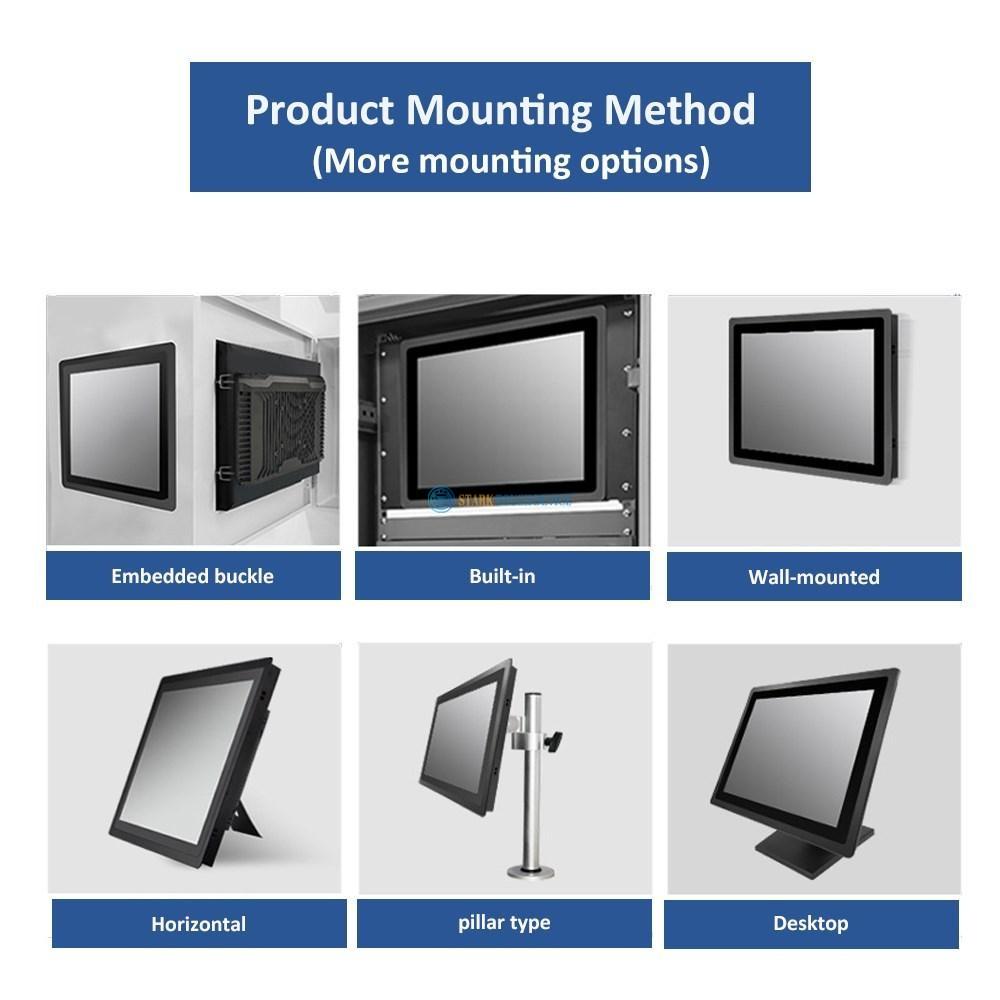

Q1: How to mount this monitor into equipment?
A: Designed with standard VESA mounts and optional flange mounting kits for seamless integration.

Q2: What interfaces are available for machine connection?

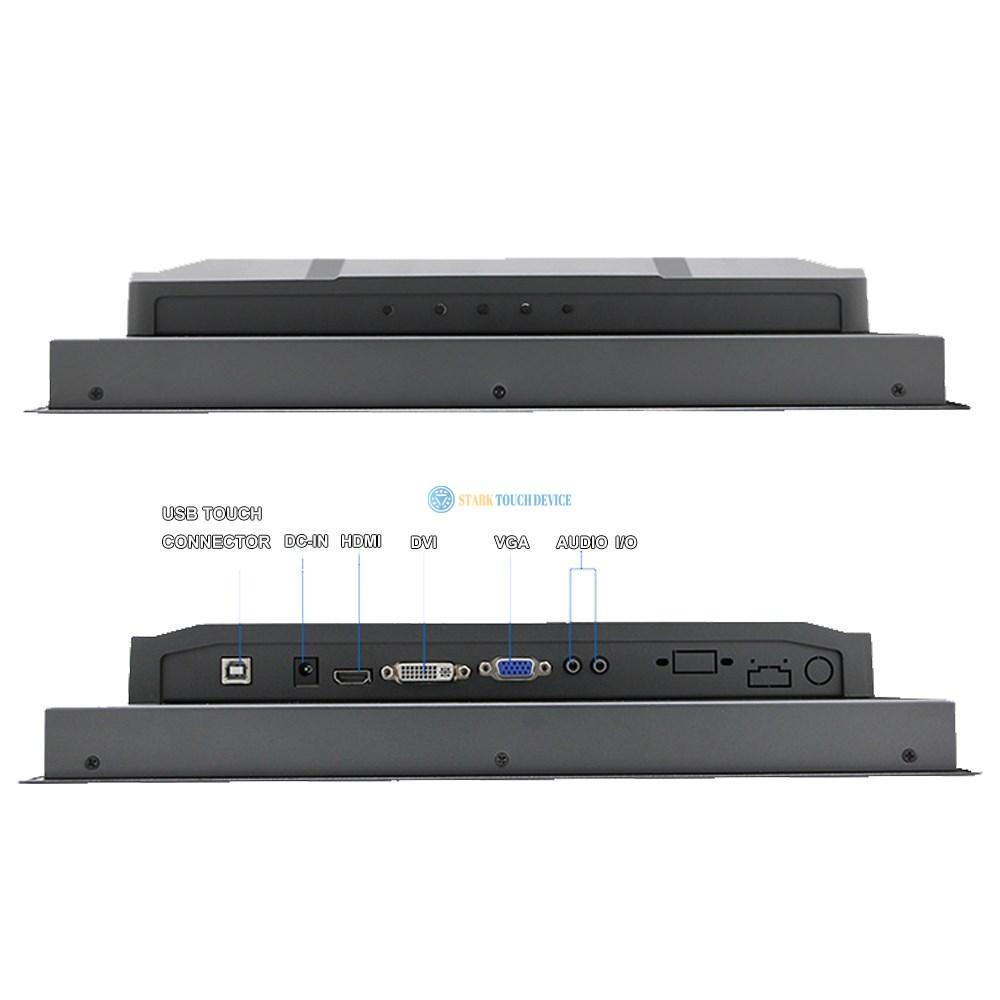

A: Standard models include USB+HDMI, with optional RS232/485/CAN bus for industrial applications.

Q3: Can the monitor withstand vibration in industrial environments?
A: Yes, shock-resistant design with 5G vibration tolerance (test report available).

Frequently asked questions — external embedded capacitive touch monitors (IP65)

1. How is this different from a built-in embedded monitor?

Both designs are meant to be embedded in equipment, but they mount differently. An external embedded monitor is fixed from the outside of the front plate, which suits retrofits and cabinets that cannot be opened from the inside, and keeps the display serviceable without dismantling the machine. A built-in embedded unit is fixed from behind the front plate for a fully flush look. Tell us your cabinet structure and we will recommend the version that fits.

2. Does it mount into a standard opening?

The unit is supplied with defined fixing points and a sealing front panel rated IP65, and the frame, connector positions and cable routing can be adapted to your mechanical design. Send us your opening dimensions and the thickness of your front plate and we will confirm the matching configuration.

3. Can it be read in bright or outdoor light?

For semi-outdoor and outdoor installations we combine a high-brightness backlight with optical bonding, where the touch panel is laminated directly to the LCD instead of leaving an air gap. Optical bonding removes internal reflections and raises contrast, so the screen stays readable under strong ambient light. The brightness and bonding combination is selected per model and installation site.

4. What operating temperature range can be supported?

We use industrial-grade wide-temperature panels and components together with industrial driver boards, so the display keeps working outside a normal office environment. The exact operating range depends on the model and on your enclosure and duty cycle — send us your environment conditions and we will confirm the applicable range for the model you choose.

5. Which certifications can you provide?

We ship to Germany, the United States, Japan, India and Korea, and we provide the certification documents required by the target market — for example CE for the European Union, FCC for the United States, PSE/TELEC for Japan, BIS for India and KC for Korea — together with RoHS compliance documentation. Certificates are model-specific and in some cases end-product specific, so tell us your destination market and the model you are considering and we will confirm the applicable certificates for that combination.

6. What about warranty and long-term OEM supply?

Standard warranty is one year, and extended warranty is available on request to match your project or service contract. For OEM integration we keep the display configuration fixed for your product, record the approved golden sample and control batch-to-batch consistency; if a panel, touch panel or driver board reaches end of life we inform you in advance and propose a drop-in replacement so production is not interrupted. Spare-parts and replacement-unit options are available.
