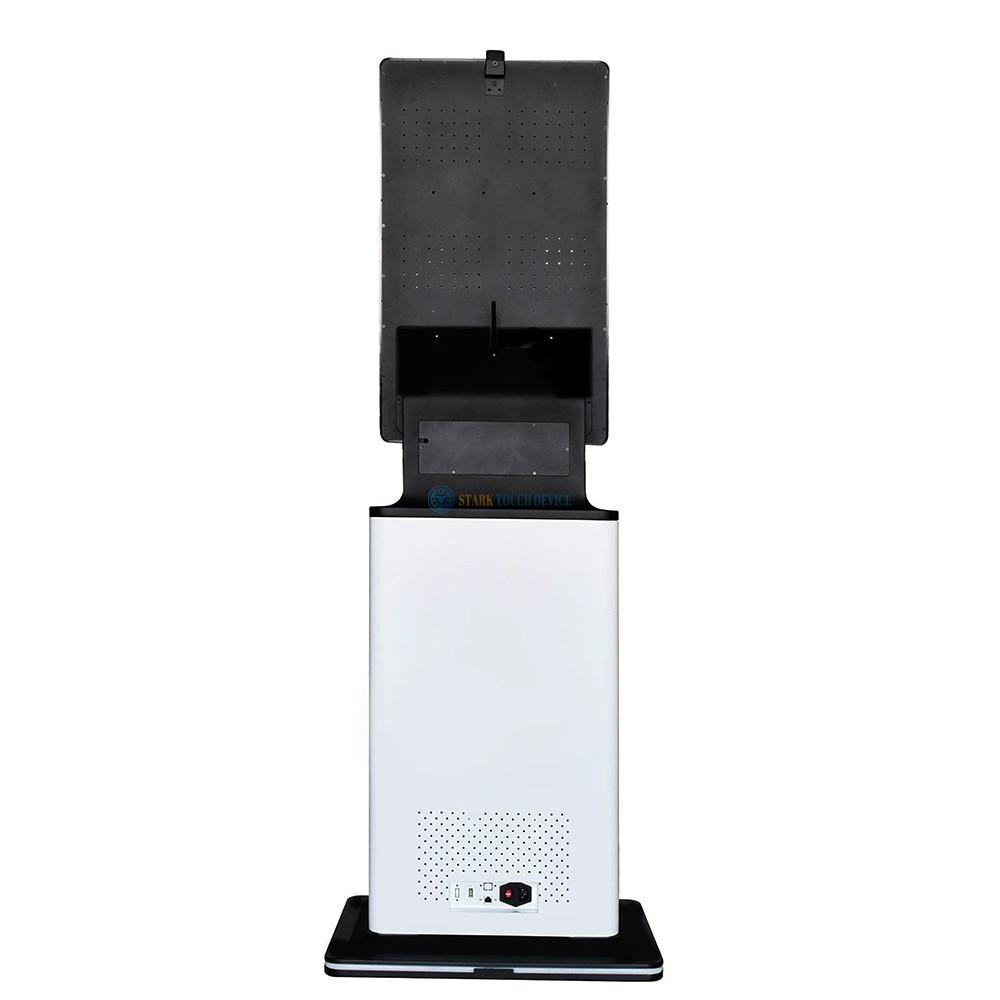

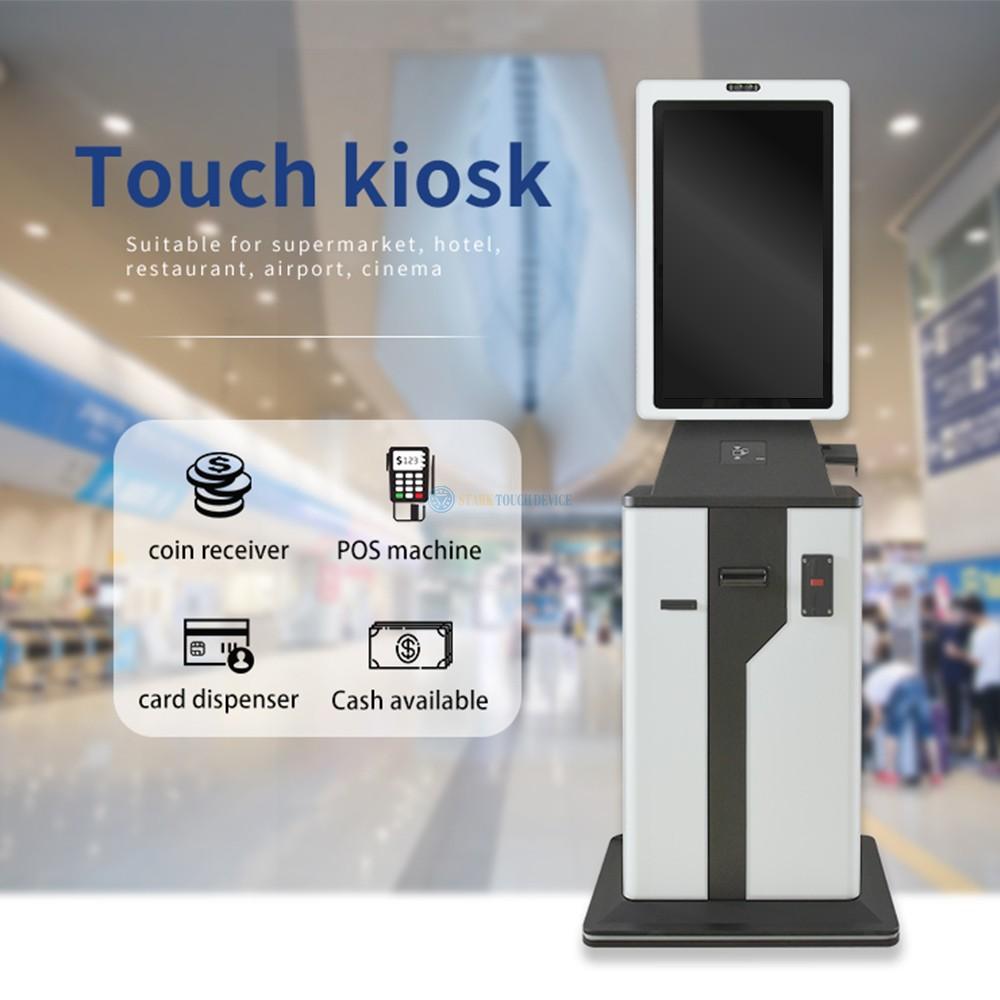

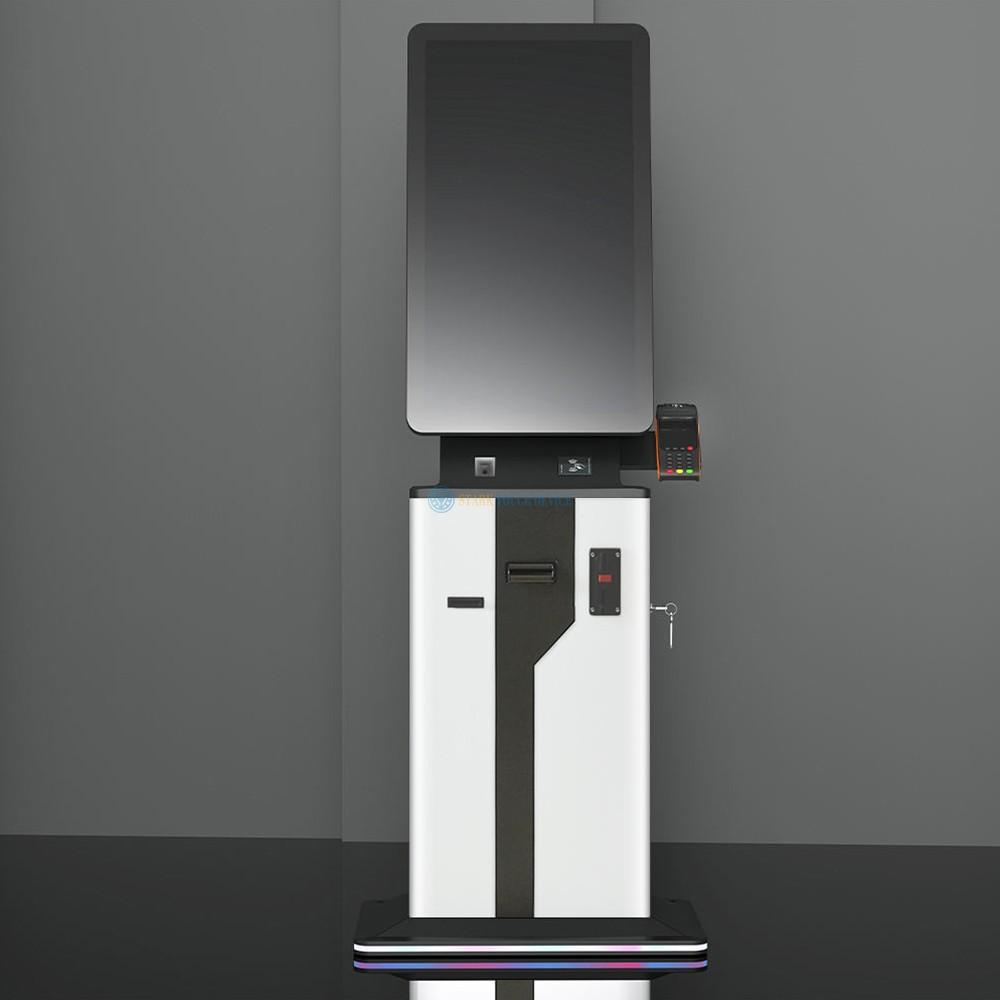

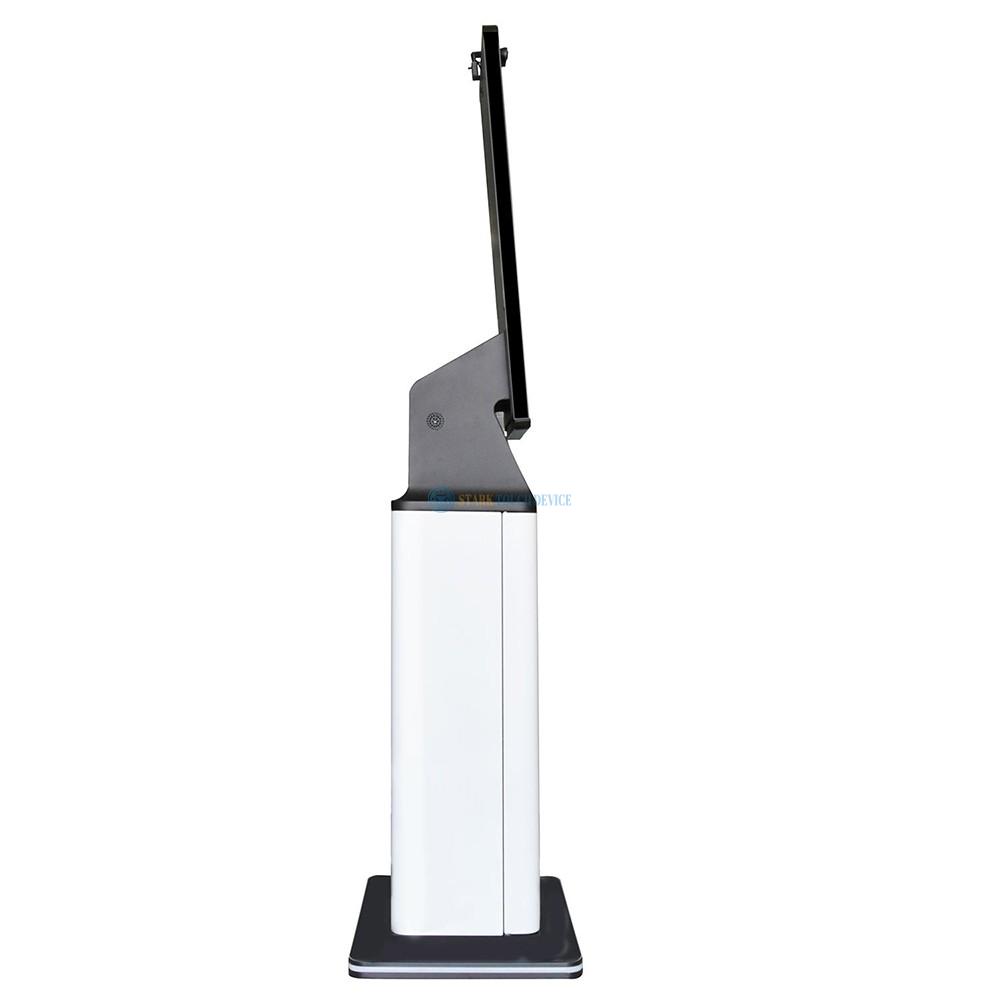

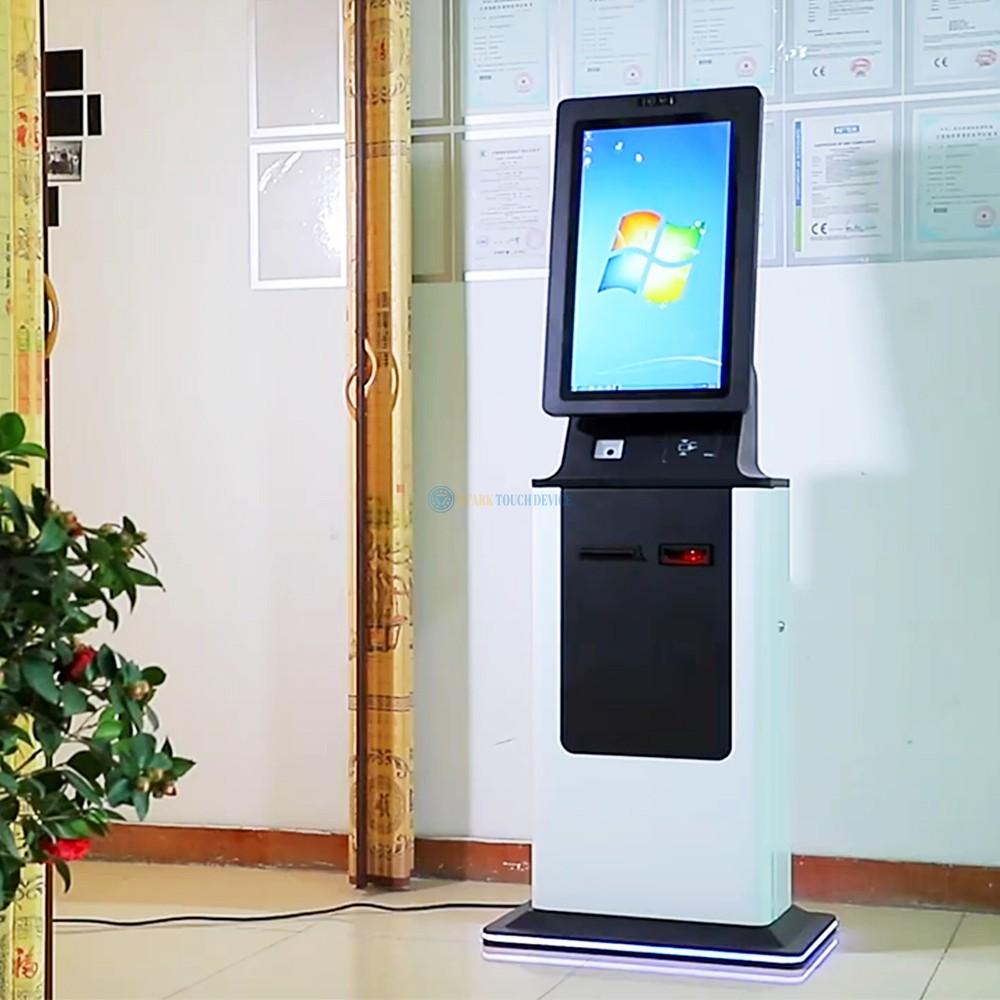

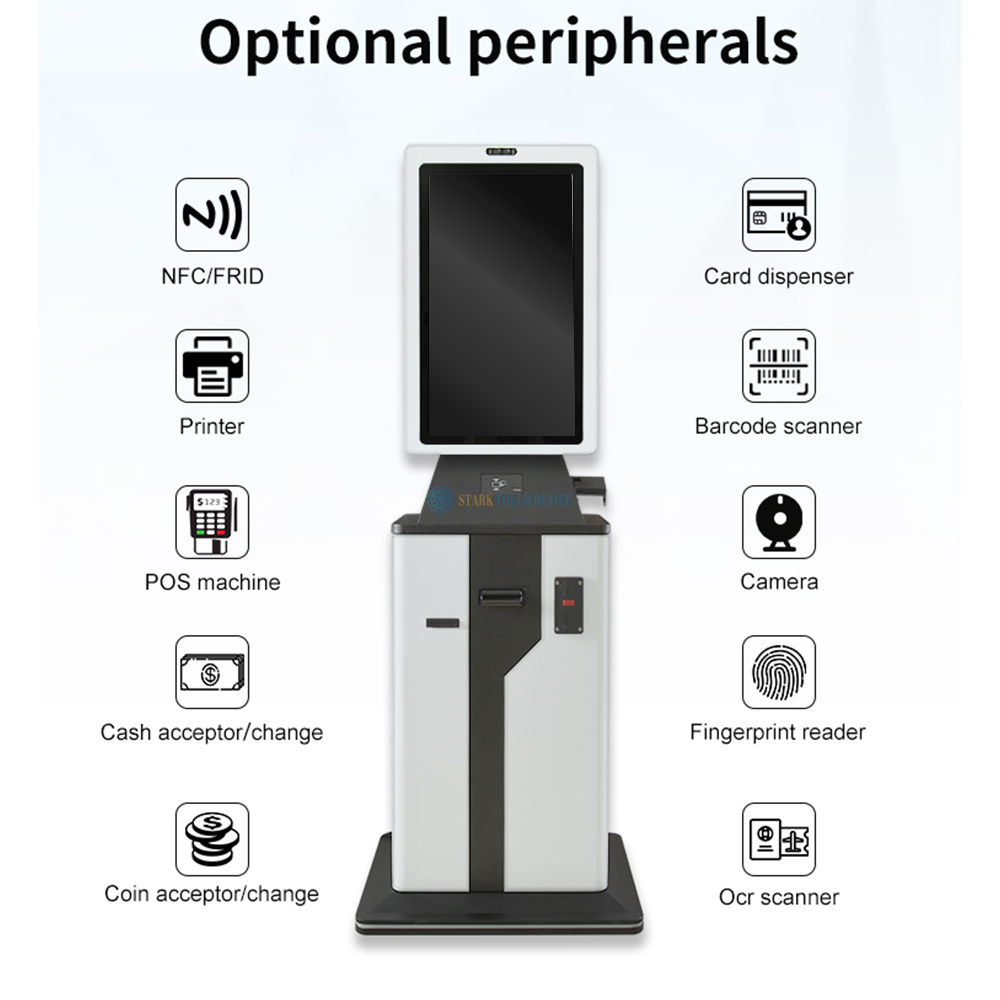

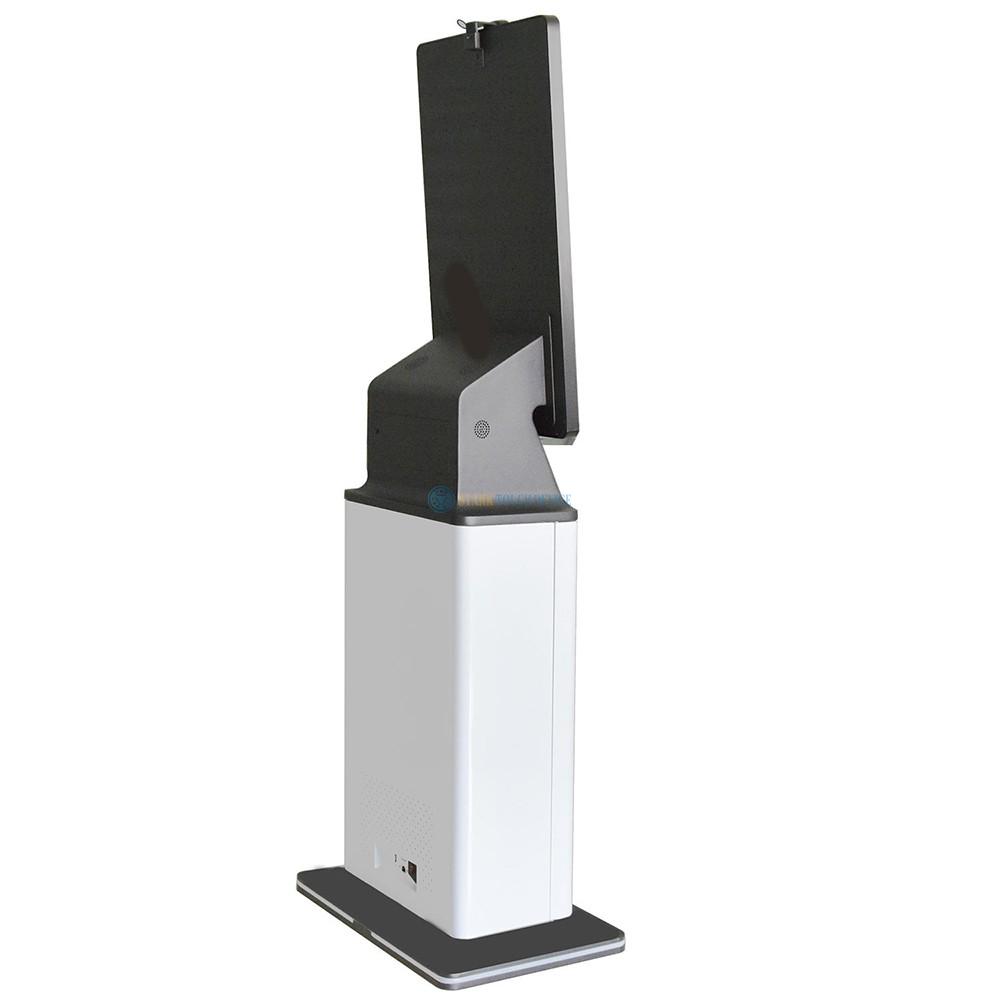

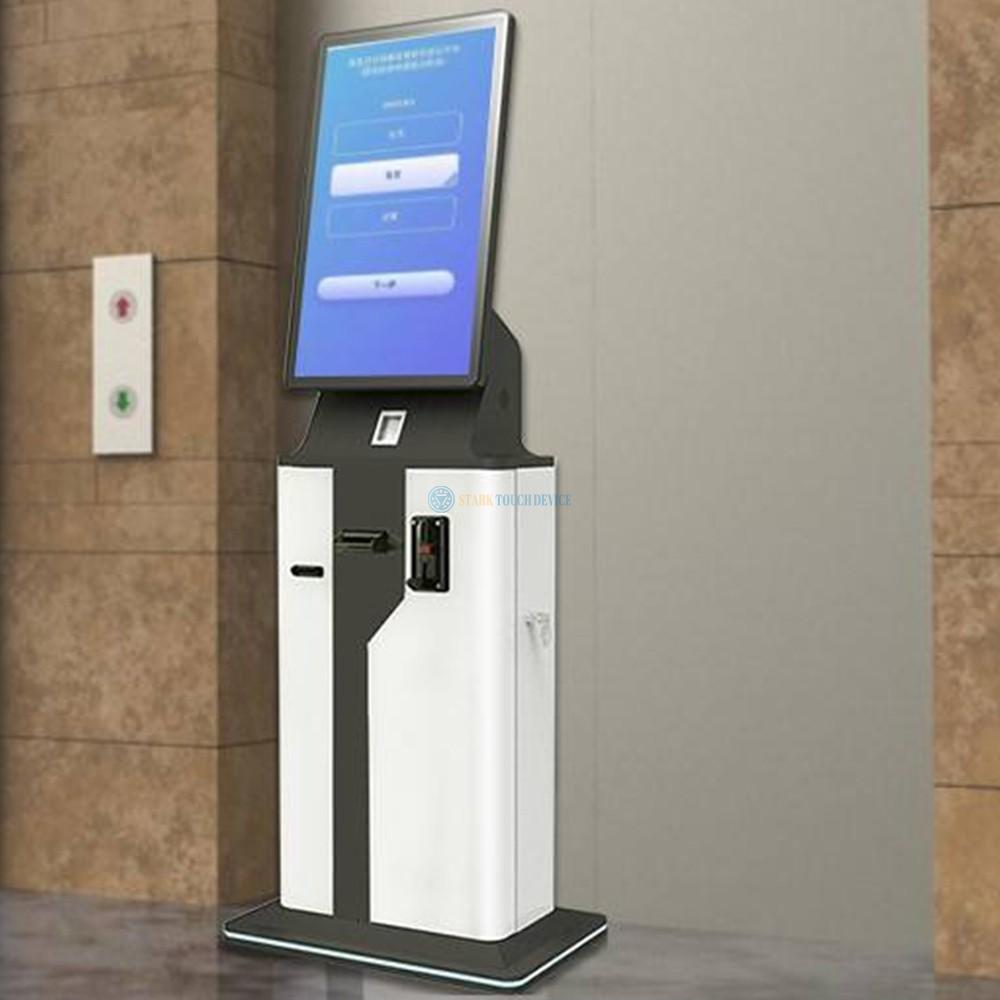

23-inch Touch‑Screen Self‑Order Kiosk (Other Sizes Optional)

·Size:18.5inch/23inch/27inch/32inch
·Color:white&black
·Function:SDK
·Application:Service Centre
·OS Supported:Android/Win7,Win8, Win10
·Resolution:1920*1080
·View Angle:178/178
·Package:separation of cabinet and screen
·Product advantages:Antirust, Anti-acid, Anti-dust, Static free

INQUIRY

Product Details

Product Tags

Quick answer

23-inch Touch‑Screen Self‑Order Kiosk (Other Sizes Optional) — the published specification for this product is: Size: 18.5inch/23inch/27inch/32inch; Color: white&black; Function: SDK; Application: Service Centre; OS Supported: Android/Win7,Win8, Win10; Resolution: 1920*1080; View Angle: 178/178; Package: separation of cabinet and screen; Product advantages: Antirust, Anti-acid, Anti-dust, Static free. Buyers should confirm the exact configuration (size, brightness, interface and mounting) against the installation environment before ordering.

Published specification at a glance

Size	Color	Function	Application	OS Supported	Resolution
18.5inch/23inch/27inch/32inch	white&black	SDK	Service Centre	Android/Win7,Win8, Win10	1920*1080

Values above are taken from this product page.

What to verify before ordering

Confirm the exact model number and request its specification sheet.
Check the protection rating (IP) against the installation environment.
Confirm mounting method and enclosure compatibility.
Confirm the required interfaces and cable routing.
Confirm operating temperature range for the target market.
Confirm brightness (nits) against ambient light at the site.
Ask for sample, tooling and mass-production lead times.
Ask which certifications are available for the destination country.

Available models in this series

This product page covers one product type. The series is available in the following sizes and configurations (published specifications):

Model	Size	Resolution	Brightness	Touch	IP rating
STD101OFTMOB	10.1 inch	1280 × 800	1000 Nits High Brightness	—	—
STD104TMOB	10.4 inch	1024 x 768	1000 nits	—	—
STD121TPCOBOD	12 inch	1280 x 800	1000 Nits	Capacitive Touch (Optical Bonding)	—
STD215I7TPCOB	21.5 inch	—	—	Capacitive touch	IP65
STD215SCMOB	21.5 inch	—	—	—	—
STD27IP65TMCAPOB	27 inch	—	—	—	IP65
STD28SSMOB	27 inch	—	—	—	—
STD32IP65MPCOB	27 inch	—	—	Capacitive Touch	IP65
STD32IP65TMOB	27 inch	—	—	—	IP65
STD43IP65HBMOBSUBWAY	27 inch	—	High-Brightness	—	IP65

Specification:

Monitor
Size	23” （optional-18.5” 27” 32”）
Display scale	16:9
Type	Capacitive touch LED
Touch response time	5ms
Touch Object	Finger, Pen, any conductive object
Resolution	1920 x 1080
Size	23 inch
Brightness	250 cd/m2
Contrast ratio	1000:1
Display area	509.1mm*286.4mm
Computer
CPU	Intel Corei3 i5 i7/ RockChip RK3288
System	Windows/Android
RAM	2G/4G/8G
ROM	32G/64G/128GB SSD
Interface	USB4,RS2322,RJ45*1
Frequency（H/V）	30～80KHz / 60～75Hz
More Info
Overall dimension	522mm(L)357mm(W)1510mm(H)
Input voltage	100-240 V AC, 50-60 Hz
LED Backlight Life(Min)	30,000 hours
Working environment
Operating temperature	Operating temperature
Storage temperature	-20～60°C
Working humidity	10%～90%
Storage humidity	10%～90%

Product Description & Key Selling Points

The 23″ self-order kiosk with capacitive touchscreen, available in sizes 18.5″, 23″, 27″, and 32″, is ideal for high-traffic environments. It supports both Android and Windows, and comes with a fully documented SDK for seamless integration into your POS or loyalty systems. With a high-brightness FHD (1920×1080) display, 178° viewing angle, and a durable design that’s anti-rust, dustproof, anti-acid, and static-free, this kiosk is built to withstand commercial use.

Module	Specification
Display	Capacitive LED, 23″ Diagonal, FHD 1920×1080, 250 cd/m², 1000:1 contrast, 5ms response time
Size Options	18.5″ / 23″ / 27″ / 32″
System	Intel i3/i5/i7 or RockChip RK3288, 2–8 GB RAM, 32–128 GB SSD, OS: Windows/Android
Ports	USB x4, RS232 x2, RJ45 x1
Environment & Dimensions	522 x 357 x 1510 mm, 100–240V, -20 to 60°C, 10–90% RH

Applications & Customer Benefits

Perfect for fast food restaurants, coffee shops, and service centers, the touchscreen self-order kiosk reduces wait times, boosts ordering efficiency, decreases human error, and helps increase sales through suggested add-ons. Ideal for high-volume environments, it provides a seamless experience for both customers and operators.

Frequently Asked Questions (FAQ)

Q1: What payment methods are supported by this kiosk?
A1: The kiosk supports various payment methods, including EMV, NFC, and QR code payments, which are compatible with global POS standards.

Q2: Does the SDK include source code?
A2: Yes, the SDK package includes the full source code, API documentation, and sample code to make system integration seamless.

Q3: Is this kiosk suitable for outdoor or high-brightness environments?
A3: This model is designed primarily for indoor use. However, custom versions for high-brightness or outdoor applications are available upon request.

Frequently asked questions — 23-inch Touch‑Screen Self‑Order Kiosk (Other Sizes Optional)

1. What is this product?

23″ touch‑screen self‑order kiosk supporting Android/Windows, SDK ready. Ideal for fast-food restaurants, coffee & service centers to reduce queues, boost efficiency and enhance customer experience.

2. What are the key specifications?

Per the published specification sheet: screen size 18.5inch/23inch/27inch/32inch; resolution 1920*1080; application Service Centre.

3. Can this display be customized for our project?

Yes. We work as an OEM/ODM display partner: the panel size, front glass, touch type, brightness, interfaces, mounting frame and connector positions can be adapted to your mechanical design, and we can integrate camera modules or extra functions into the same assembly. Send us your drawing or sample requirement and we will confirm feasibility.

4. What is the lead time, warranty and certification situation?

Samples are normally about 7 days and mass production about 20-30 days after deposit and final approval. Standard warranty is one year and extended warranty is available on request. We ship to Germany, the United States, Japan, India and Korea and provide the certification documents required by the target market (for example CE, FCC, PSE/TELEC, BIS, KC and RoHS). Certificates are model-specific, so tell us your market and model and we will confirm the applicable documents.

5. How do you keep supply stable for a product we integrate into our own equipment?

For OEM integration we keep the configuration fixed for your product, record the approved golden sample and control batch-to-batch consistency. If a panel, touch panel or driver board reaches end of life we inform you in advance and propose a drop-in replacement so production is not interrupted. Spare-parts and replacement-unit options are available.
