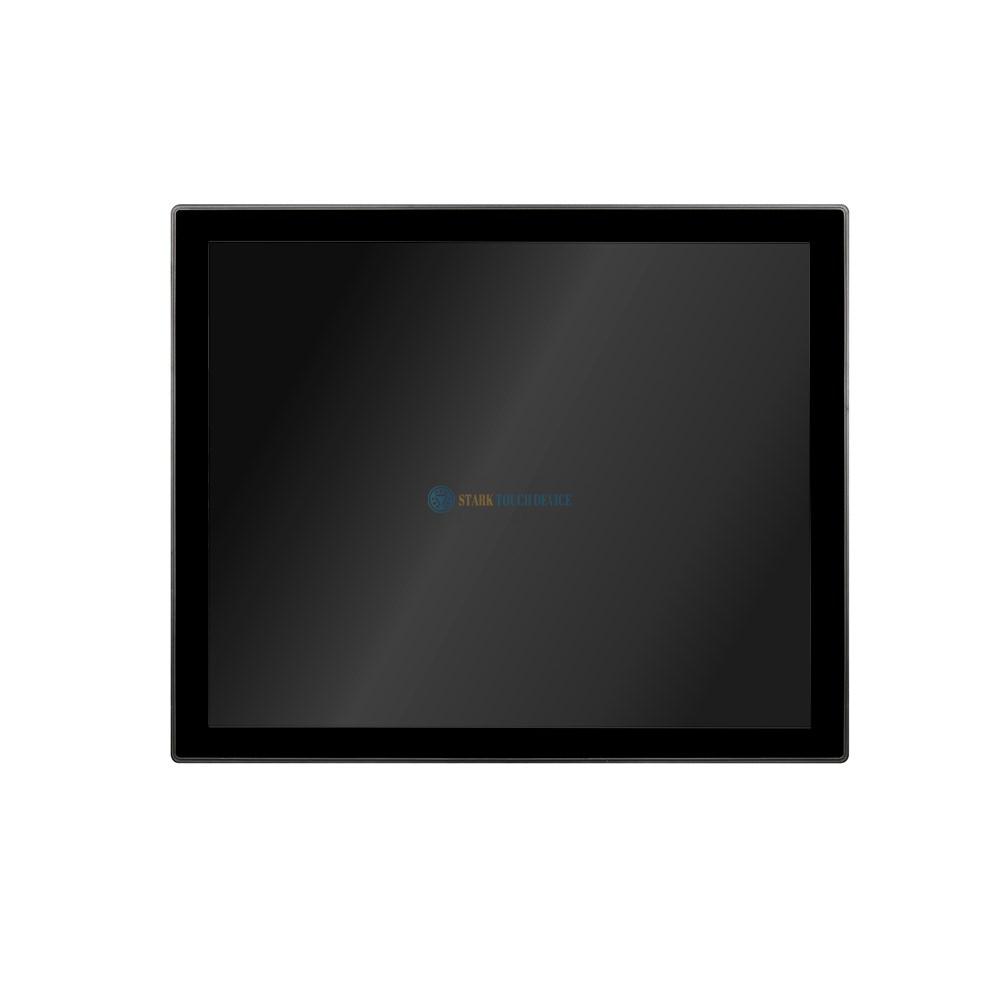

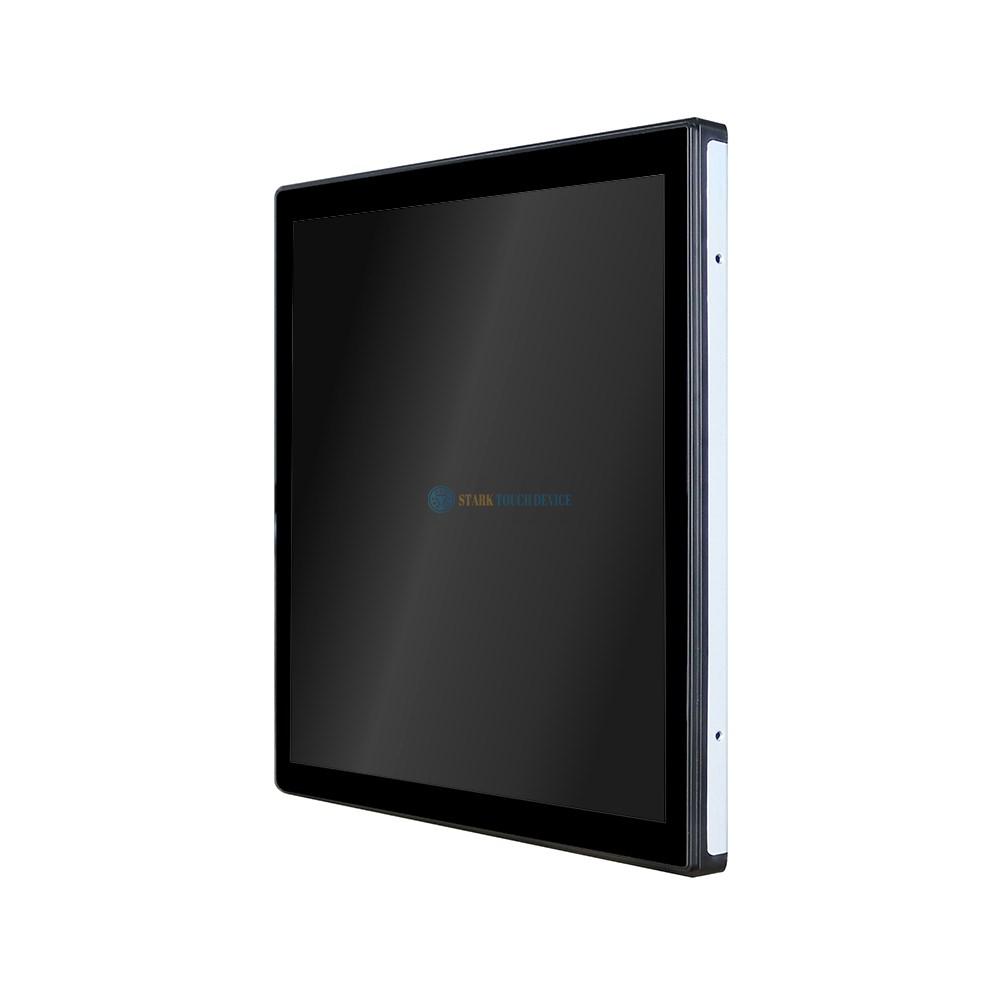

Built-in Embedded Capacitive Touch Monitor | IP65 Waterproof | Panel-Mount

Type: Outdoor use, built-in monitor, wall, etc
Size: 10.1-27 inches
Completed IP65
Material: ABS/PC+ galvanized sheet

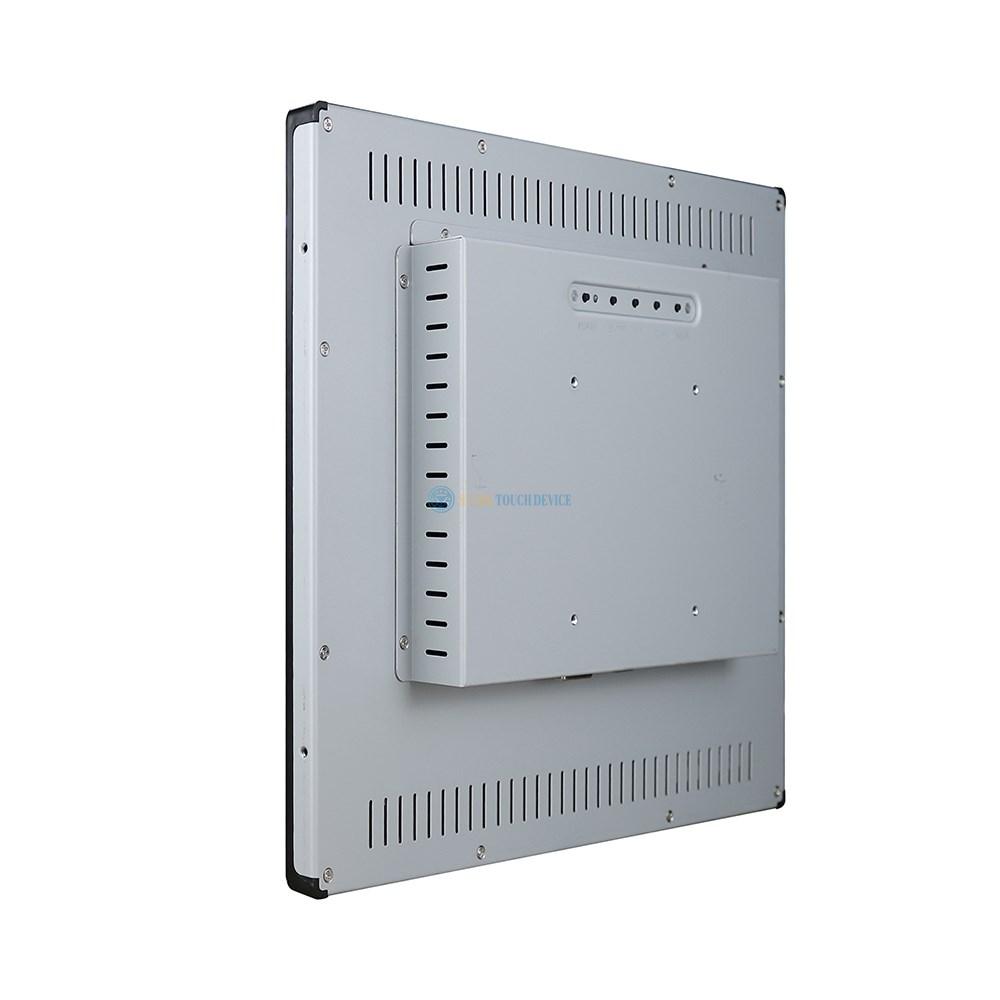

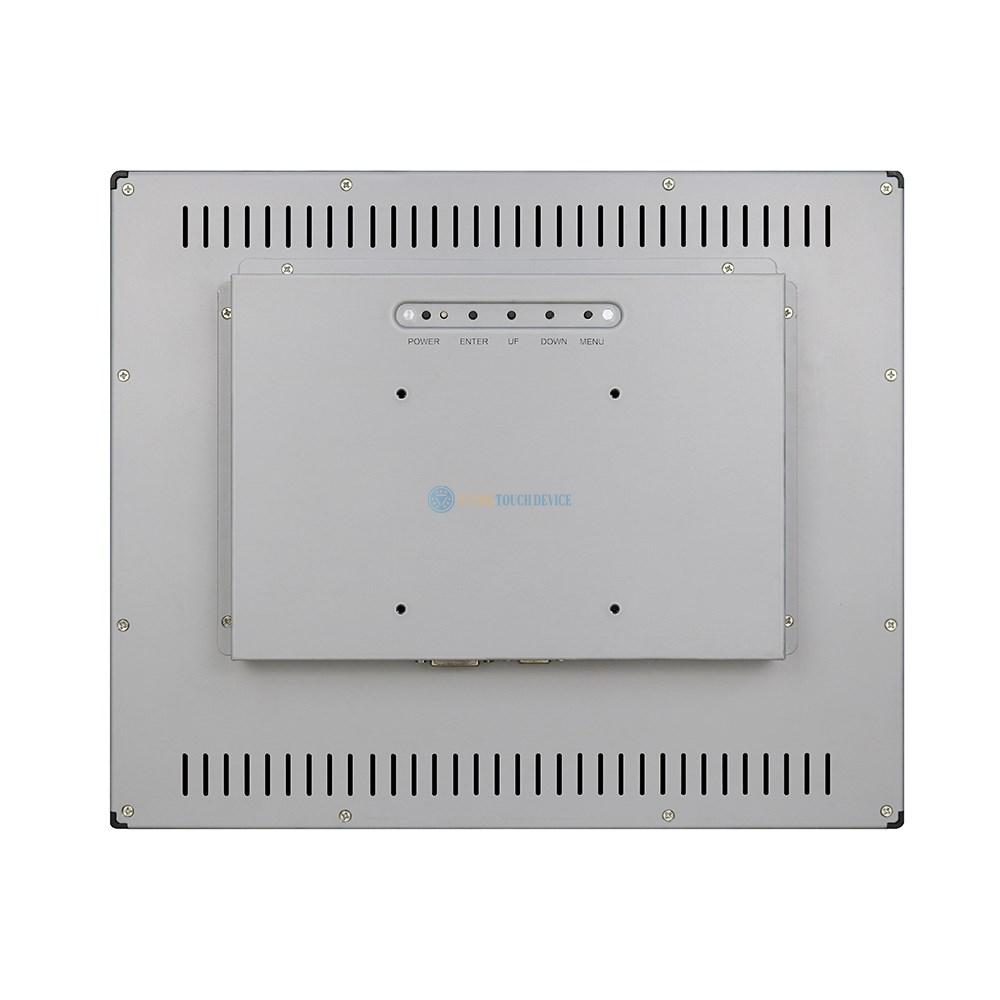

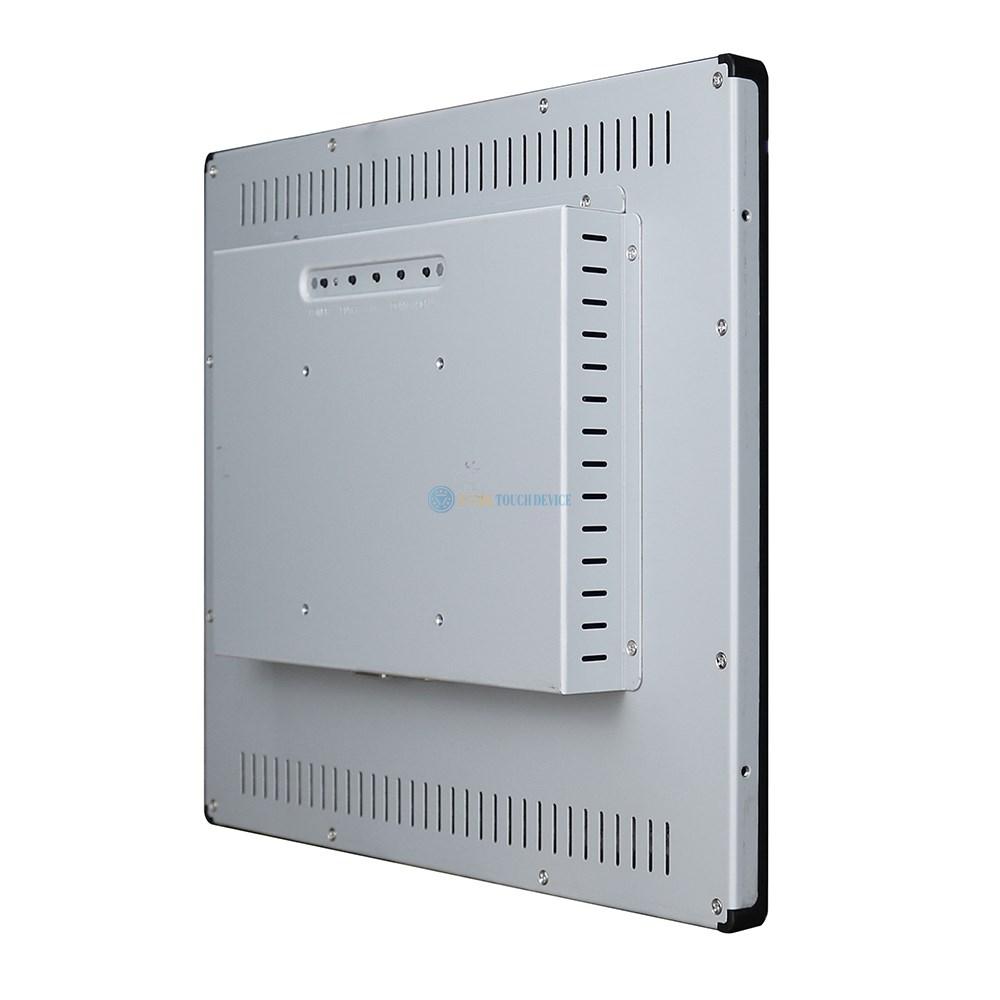

Rear shell cooling design
Color: Silver/black

INQUIRY

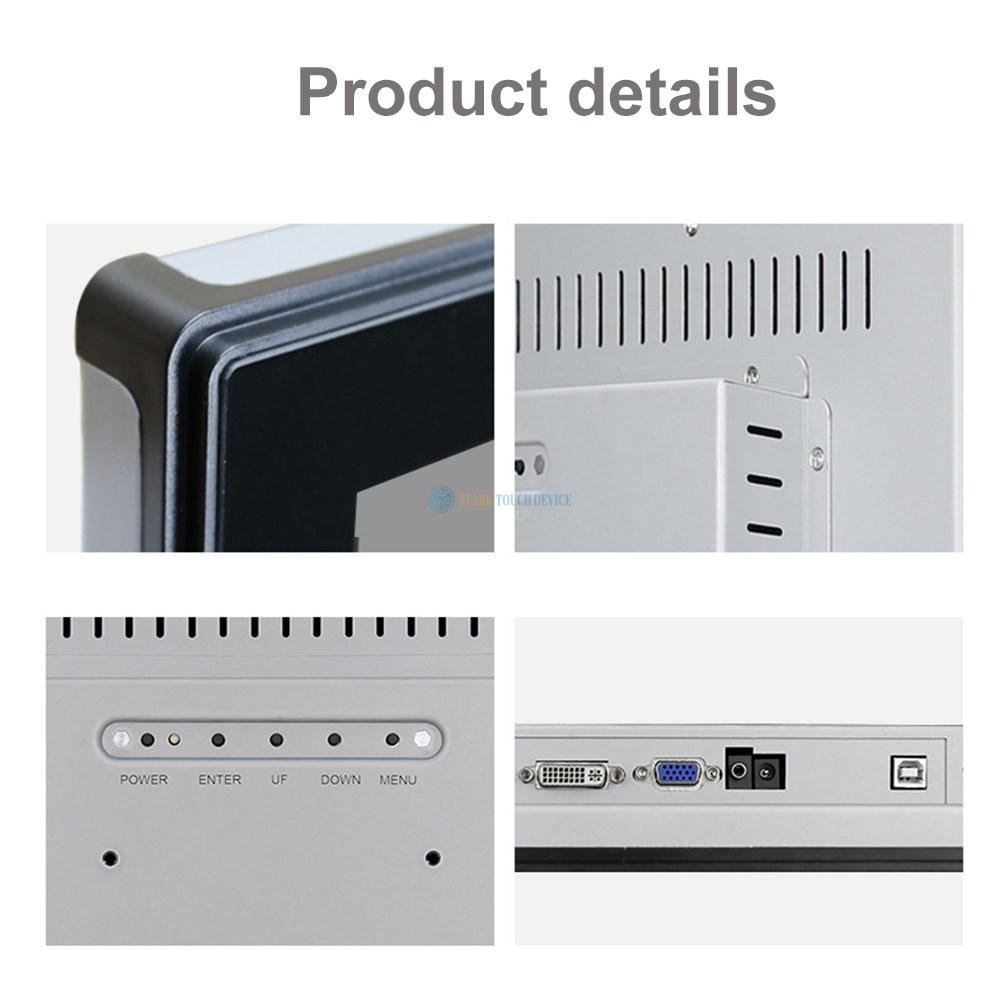

Product Details

Product Tags

Quick answer

Built-in Embedded Capacitive Touch Monitor | IP65 Waterproof | Panel-Mount — the published specification for this product is: Type: Outdoor use, built-in monitor, wall, etc; Size: 10.1-27 inches; Material: ABS/PC+ galvanized sheet; Color: Silver/black. Buyers should confirm the exact configuration (size, brightness, interface and mounting) against the installation environment before ordering.

Published specification at a glance

Type	Size	Material	Color
Outdoor use, built-in monitor, wall, etc	10.1-27 inches	ABS/PC+ galvanized sheet	Silver/black

Values above are taken from this product page.

What to verify before ordering

Confirm the exact model number and request its specification sheet.
Check the protection rating (IP) against the installation environment.
Confirm mounting method and enclosure compatibility.
Confirm the required interfaces and cable routing.
Confirm operating temperature range for the target market.
Confirm brightness (nits) against ambient light at the site.
Ask for sample, tooling and mass-production lead times.
Ask which certifications are available for the destination country.

Available models in this series

This product page covers one product type. The series is available in the following sizes and configurations (published specifications):

Model	Size	Resolution	Brightness	Touch	IP rating
STD101OFTMOB	10.1 inch	1280 × 800	1000 Nits High Brightness	—	—
STD104TMOB	10.4 inch	1024 x 768	1000 nits	—	—
STD121TPCOBOD	12 inch	1280 x 800	1000 Nits	Capacitive Touch (Optical Bonding)	—
STD153SCTPCOB	15 inch	—	—	—	—
STD156OFTMCAPOB	15.6 inch	—	1000 nits	Capacitive	—
STD215I7TPCOB	21.5 inch	—	—	Capacitive touch	IP65
STD215SCMOB	21.5 inch	—	—	—	—
STD238IP65SSTPCOB	23.8 inch	1920 x 1080	High brightness; final nits configurable	—	—
STD27IP65TMCAPOB	27 inch	—	—	—	IP65
STD28SSMOB	27 inch	—	—	—	—
STD32IP65MPCOB	27 inch	—	—	Capacitive Touch	IP65
STD32IP65TMOB	27 inch	—	—	—	IP65
STD43IP65HBMOBSUBWAY	27 inch	—	High-Brightness	—	IP65

Specification:

IP rate	Completed IP65
Size	10.1″/12.1″/15″/17″/18.5″/19″/21.5″/27″(customizable)
Panel type	TFT-LCD
Paenl brand	Toshiba/Sharp/LG/Samsung/AUO/CMO
Industrial grade	A
Resolution	1024×760/1080×800/1366×768/1280×1024/1440×900/1920×1080/2560×1440 /3840×2160
Display scale	4:3 5:4 16:9 16:10 17:10 21:9
Contrast Ratio	700:1 1000:1 1200:1
Display point spacing	Depending on the size of the liquid crystal
Display color	16.7M
Display Mode	TN、IPS（S-IPS E-IPS H-IPS）、VA
View angle	L/R:165°、U/D:155°(optional-full view angle L/R:178°)
Backlight Brightness	200~300cd/m²（400~1500cd/m²-customizable）
Scanning frequency	60HZ
Response time	7ms
Display color gamut	≥70%
Backlighting	LED
Working life	≥50000H
Touch technology	Capacitance/resistance
Touch structure	G+G G+I G+F
Surface treatment	AR AG AF
Strength of touch	Touch of resistance30g-75g
Touch life	35 million times/50 million times
Touch protocol	USB/l2C/R232/RS485
Touch interface	USB-A/B RJ45 DB9
Chipset	Realtek/Mstar
External interface	VGA DVI HDMI Optional (DP、CVBS、YPbPr、BNC、AHD) Dedicated IP67 waterproof terminals
Audio	loudspeaker 8Ω2W(optional)
Power input	DC-IN 12V 4A Dedicated IP67 waterproof terminals
Surface frame material	ABS+PC
Back cover material	Galvanized plate
Mounting	VESA(wall hanging), built-in, locking

Embedded Touch monitor(built-in) (8).jpg

Q1: What's the panel cutout size?

A: Standard 217x137mm (custom sizes available).

Q2: Can you provide bezel customization?
A: Yes, aluminum/steel bezels with custom finishes.

Q3: Is front-panel sealing included?
A: Yes, IP65 gasket pre-installed.

Frequently asked questions — built-in embedded capacitive touch monitors (IP65)

1. What does "built-in embedded" mean for my cabinet design?

A built-in embedded monitor is designed to sit inside the front plate of a cabinet, kiosk or machine, so that only the front glass is visible and the enclosure is flush with the equipment. The unit is supplied for rear fixing with defined hole patterns, and the frame, connector positions and cable routing can be adapted to your mechanical design.

2. Is the front waterproof once it is built into my cabinet?

The monitor front is a fully enclosed, seamless panel rated IP65, which is dust-tight and protected against water jets. The overall protection of the finished machine also depends on how the display is sealed against your front plate, so we recommend confirming the gasket and fixing method with us when you finalise the opening dimensions.

3. Can it be read in bright or outdoor light?

For semi-outdoor and outdoor installations we combine a high-brightness backlight with optical bonding, where the touch panel is laminated directly to the LCD instead of leaving an air gap. Optical bonding removes internal reflections and raises contrast, so the screen stays readable under strong ambient light. The brightness and bonding combination is selected per model and installation site.

4. What operating temperature range can be supported?

We use industrial-grade wide-temperature panels and components together with industrial driver boards, so the display keeps working outside a normal office environment. The exact operating range depends on the model and on your enclosure and duty cycle — send us your environment conditions and we will confirm the applicable range for the model you choose.

5. Which certifications can you provide?

We ship to Germany, the United States, Japan, India and Korea, and we provide the certification documents required by the target market — for example CE for the European Union, FCC for the United States, PSE/TELEC for Japan, BIS for India and KC for Korea — together with RoHS compliance documentation. Certificates are model-specific and in some cases end-product specific, so tell us your destination market and the model you are considering and we will confirm the applicable certificates for that combination.

6. What about warranty and long-term OEM supply?

Standard warranty is one year, and extended warranty is available on request to match your project or service contract. For OEM integration we keep the display configuration fixed for your product, record the approved golden sample and control batch-to-batch consistency; if a panel, touch panel or driver board reaches end of life we inform you in advance and propose a drop-in replacement so production is not interrupted. Spare-parts and replacement-unit options are available.
